ENABLE-IT 3400R 8 Port 1600W – 48V DC RACKMOUNT POE INJECTOR

MSRP $1075 A Complete Solution End-To-End

► High Power DC Injector for deploying PoE for IP Cameras up to 4,500 ft / 1.37 km
► The PLANET's most trusted and deployed brand since 1982
► Rackmounted 2U Enclosure – Ideal for Mission Critical LAN Uptime and Power Recovery
► Leverage any 2-pair or 4-par wiring for power at distance
Supports 8 200W each PoE CPE units when used with an 8955M DSLAM
► ENABLE-IT USA Factory Floor Direct Same Day Shipping
► Any CUSTOM option available at time of order


DESIGNED & MADE IN THE USA WITH QUALITY AND PRIDE.
PROFESSIONAL BUSINESS GRADE PERFORMANCE,
RUGGEDIZED EXTREME TEMPERATURE ENCLOSURE,
ENCRYPTED AND SECURE.


Put your PoE device where you need to and not where you are limited to. Ideal for installing PoE cameras or WiFi Access Points rapidly.


The EnableIT 3400R 8 Port 1600W – 48V DC Rackmount PoE Injector is a multi port, long distance driving, high powered PoE Output IEEE 802.3at and 802.3AF certified midspan that delivers up to 200W @48V DC 8.2A per port.This high powered 1600W 8-port Rackmount PoE Injector is ideal for installing long distance IP PoE devices up to 4,500ft / 1,371m when used with an Enable-IT PoE Ethernet Extender like the 865 PRO or rackmount Multi-port 8955 PoE Extender DSLAM.

In-Stock NOW Product UPC: 896741002515

Request a Quote Quote from Resellers
SKU: 3400R Category:
The EnableIT™ 3400R 8 Port 1600W - 48V DC Rackmount PoE Injector is a IEEE 802.3AF certified Midspan solution that is a easy to install and delivers up to 200W @48V DC 8.2A per port. This makes it ideal for installing any PoE enabled WiFi Wireless Access Point, Security camera or other PoE powered equipment up to 4,500ft / 1,371m when used with a Enable-IT PoE Ethernet Extender like the 865 PRO or rackmount Multi-port 8955 PoE Extender DSLAM. It eliminates the need for your installers adding power supply outlets and associated AC power cabling, providing a rackmount, affordable, safe and reliable power solution over your wiring or existing Ethernet infrastructure.

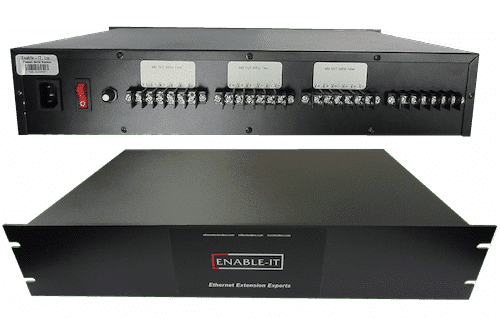

The 2U rackmount unit has 8 dedicated DC output screw terminals and comes with 8 18in spade or o-ring connected cabling into a secure locking connector suited for the Enable-IT 8955 Extended PoE DSLAM. You can order the 3400R with 8 RJ-45 PoE pinned male heads vs the secure connectors if you prefer to use our PoE Extenders like the 828 Gigabit or 865 PRO Gigabit PoE Extenders. The unit uses a single (120V ~ 240V) IEC 320 C14 standard Country specific power cord input with a 20A manual reset circuit breaker and Lighted AC Rocker ON/Off Switch in a ventilated rugged enclosure.

Keep in mind that all DC including (PoE) voltage drops over distance and thinker gauge wire will help this issue. As a rule of thumb you will lose 6V per every 200 feet of wiring, depending on the gauge. For example in Category 5 or 6 24 AWG there is less wire/copper to conduct electricity which is lower power throughput. Lower power throughput increases the amperage and that generates more heat in the wire. Depending on distance, you may need to use 18 gauge wiring as a dedicated DC power buss - like low voltage landscape wire and run Ethernet on a 1-pair 24 AWG. There are options to maximize your distance and PoE output when used in conjunction with our PoE Extenders or PoE DSLAM.

Enable-IT is the seminal creator and inventor of Ethernet Extender and PoE Extender concepts and technology. We are the original trusted source.

The US Federal Govt has banned most all non-US made networking products in their networks - Why risk your business using cheap foreign LAN products?

Try the world's fastest performing and most cost effective Ethernet Extender and PoE Extender Solutions -

With a 45-day money-back guarantee and Same Day Flat Rate Shipping, you have nothing to lose.

Designed and Made in our USA AS9100D Aerospace Quality Production Facilities.

Professional Business Grade Product, Solid reliability not Chinese Home Use crap.

Includes the Industry leading Limited Lifetime Manufacturer Warranty.

Optional 4 year Next Business Day Advanced Replacement for under $5 per month!
        What's the cost of your network being down?

Insured, Same Day Flat Rate Shipping - US West Coast Factory Floor Direct.

Get some Peace of Mind - 45-day Money Back Guarantee.
1600W - 48V DC Rackmount PoE Injector 802.3AF certified

8 dedicated ports - 200W @48V DC 8.2A per port

Saves thousands in electrical and engineering costs.

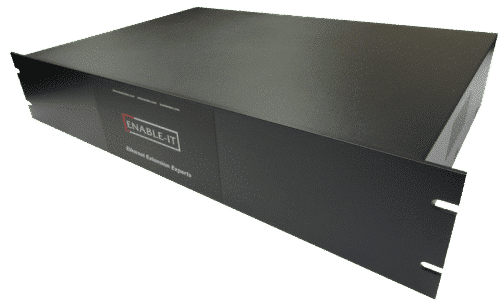

Clean 2U 19in Rackmount ventilated enclosure.

Single AC input with 20A manual reset circuit breaker

Lighted AC Rocker ON/Off Switch

Immunity ESD: EN61000-4-2 level.

Immunity RS : EN61000-4-3 level.

Immunity CS : EN61000-4-6 level.


This kit includes the following:
(1) EnableIT™ 3400R 8 Port 1600W - 48V DC Rackmount PoE Injector

(1) IEC 320 C14 (90 - 264V AC) Country Specific power cord provided

(1) EnableIT™ 3400R Quickstart Guide

► Same Day Flat Rate Shipping - US West Coast Factory Floor Direct
► Lifetime Manufacturer Warranty
► Optional 4yr Next Business Day Advanced Replacement

Power

AC Input: 120V ~ 240V AC into a IEC 320 C14 socket with 20A Circuit breaker - manual reset
DC Output: (8) individual sets of dedicated 200W @ 48V DC Screw Terminals for PoE output.

Data Rate

Not Applicable - No Data input or output

Interface

AC Input: (1) IEC 320 C14 socket with 20A Circuit breaker - manual reset
DC Output: (8) Screw Terminals for PoE output.

Dimensions

-Front Panel Dimensions: Length 19.09in (485mm) x Height 3.46in (88mm) x Thick .07in (2mm)
-Enclosure Dimensions: Length 17.44in (443mm) x Width 11.81in (300mm) x Height 3.26in (83mm)

Environment

Operational Temperature: -4°F to 149°F (-20°to 65°C)
Humidity: 5% to 85%, non-condensing
Estimated 1,670 BTU/h output

Enclosure

Ruggedized black 2U rackmount aluminum ventilated casing.

Datasheet ►      Datasheet pdf

Quickstart Guide ►      Datasheet pdf

Product Manual ►      Datasheet pdf

ENABLE-IT 3400R / 3600R POE WIRING
ENABLE-IT 3400R / 3600R RACKMOUNT PoE INJECTOR WIRING
