Enable-IT 865 PRO Gigabit PoE Extender

MSRP $699 A Complete Solution End-To-End

► PoE Extender for IP Cameras over SEVEN times further than IEEE 802.3 specs
► The PLANET's most trusted and deployed brand since 1982
► Instant ON – Ideal for Mission Critical LAN Uptime and Power Recovery
► Leverage any 2-pair or 4-par wiring up to (2,500ft) or (762m)
► Secure and Encrypted Communications between devices
► ENABLE-IT USA Factory Floor Direct Same Day Shipping
► Any CUSTOM option available at time of order
► Available in an IP68 Rated Waterproof Enclosure – see 865W


DESIGNED & MADE IN THE USA WITH QUALITY AND PRIDE.
PROFESSIONAL BUSINESS GRADE PERFORMANCE,
RUGGEDIZED EXTREME TEMPERATURE ENCLOSURE,
ENCRYPTED AND SECURE.


Put your PoE device where you need to and not where you are limited to. Ideal for installing PoE cameras or WiFi Access Points rapidly.

► Beware of competitors as some are banned in the USA due to spyware or malware.
► Don't risk your business data to cheap, low quality imported LAN equipment!
► Protect the value of your LAN data and company secrets.
► Insist on the Enable-IT Brand, trusted by security experts worldwide.

In-Stock NOW Product UPC: 896741002447 [wp-review]

This will also add the following products to your cart:

  • $2.19/mo for a 4yr Advanced Replacement 865 PRO Kit Next Business Day
Request a Quote Quote from Resellers
SKU: 865 PRO Category:
The Enable-IT™ 865 PRO Gigabit PoE Extender kit is an ideal solution to install your IP surveillance cameras, WiFi access points, VoIP phones and other PoE devices where you need, not where you are limited to by false thinking LAN distance restrictions. It can operate up to 3,500ft / 1,066m from you power and data source and supports any PoE enabled WiFi Wireless Access Point, Security camera or other PoE powered equipment. This eliminates the need for your installers adding power supply outlets and associated AC power cabling, providing an affordable, safe and reliable power solution over your wiring or existing Ethernet infrastructure.

Using the provided High Powered 61W 56V Gigabit PoE Injector, a single (120V ~ 240V) IEC 320 C14 standard Country specific power cord input will deliver PoE power sufficient enough to deploy multiple 12V ~ 24V / 6W ~ 30W PoE devices anywhere you need to.

Keep in mind that all DC including (PoE) voltage drops over distance and thicker gauge wire will help this issue. As a rule of thumb you will lose up to 6V per every 200 feet of wiring, depending on the gauge. For example in Category 5 or 6 24 AWG there is less wire/copper to conduct electricity which is lower power strength at distance due to impedance. Lower power strength increases the amperage and that generates more heat in the wire. Depending on distance, you may need to use more pairs or wire or 18 gauge wiring as a dedicated DC power buss - like low voltage landscape wire and run Ethernet on a 1-pair 24 AWG. There are options to maximize your distance and PoE output when used in conjunction with our PoE Extenders or PoE DSLAM that can power a 56V 60W PoE IP PTZ Camera at 4,000 ft away.
Enable-IT is the seminal creator and inventor of Ethernet Extender and PoE Extender concepts and technology. We are the original trusted source.

The US Federal Govt has banned most all non-US made networking products in their networks - Why risk your business using cheap foreign LAN products?

Try the world's fastest performing and most cost effective Ethernet Extender and PoE Extender Solutions -

With a 45-day money-back guarantee and Same Day Flat Rate Shipping, you have nothing to lose.

Designed and Made in our USA AS9100D Aerospace Quality Production Facilities.

Professional Business Grade Product, Solid reliability not Chinese Home Use crap.

Includes the Industry leading Limited Lifetime Manufacturer Warranty.

Optional 4 year Next Business Day Advanced Replacement for under $1 per month!
        What's the cost of your network being down?

Insured, Same Day Flat Rate Shipping - US West Coast Factory Floor Direct.

Get some Peace of Mind - 45-day Money Back Guarantee.
Extended Ethernet with Power over Ethernet (PoE ) on 2, 3 or 4 pair existing Telephone wiring or category rated wiring.
Rapid LAN style installation RJ45 jacks - no programming required.
Ruggedized Professional Business Grade mountable casing for harsh environments.
Network Equipment independence - Transparent to protocols, applications and MAC addresses.
Longest warranty protection included exceeding any knockoff competitors.
Quad Gigabit LAN ports on each end to eliminate the need for LAN switches.


This kit includes the following:
(2) EnableIT 865 PRO Gigabit PoE Extender Units
(2) 10' Black Ethernet patch cords
(1) 12V-1A DC Country Specific (120-260V AC) Power Adapter 2.5mm DC jack
(1) Enable-IT 360 56V - 61W IEEE 802.3at Gigabit PoE+ Injector
(1) IEC 320 C14 (90 - 264V AC) Country Specific power cord for the 360 Injector
(1) Enable-IT 865 PRO Quickstart Guide
► Same Day Flat Rate Shipping - US West Coast Factory Floor Direct
► 45-day Money Back Guarantee
► Lifetime Manufacturer Warranty
► Optional 4yr Next Business Day Advanced Replacement

Power

CO unit - 12V-1A DC Country Specific (120-260V AC) Power Adapter 2.5mm DC jack included.
CPE unit - remote self powered uses 5v and passes remaining PoE budget to end PoE device

Data Rate

1,000Mbps full-duplex Ethernet Data
260Mbps Interconnect throughput
Ethernet LAN Protocol Independent
Ethernet LAN MTU 1500
IP VLAN passthough

Interface

Ethernet: (4) LAN RJ-45 Standard 10/100/1000 Base-TX autosensing ports
Interlink: RJ-45 (2-Pair min)
Optimal power at distance, use 4-pair Cat5e or better wiring.

Dimensions

Height 1.4" (35mm) Depth 3.4" (86mm) Width 4.4" (111mm)

Environment

Operational Temperature: -49°F to 168°F (-45°to 76°C)
Humidity: 5% to 95%, non-condensing

Enclosure

Ruggedized wallmount black Aluminum casing Optimized for heat extraction and isolation without fans.

Datasheet ►      Datasheet pdf

Quickstart Guide ►      Datasheet pdf

Product Manual ►      Datasheet pdf

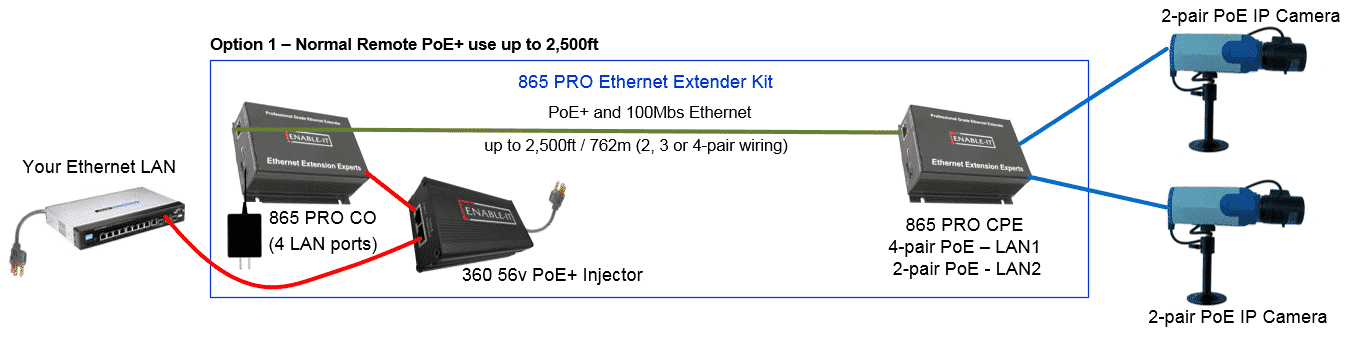

ENABLE-IT 865 PRO GIGABIT POE EXTENDER WIRING ALTERNATE
865 PRO GIGABIT POE EXTENDER Wiring
ENABLE-IT 865 PRO GIGABIT POE EXTENDER WIRING
865 PRO GIGABIT POE EXTENDER Wiring
