Power over Ethernet (PoE) has revolutionized the networking and device installation world, providing both data and power over a single Ethernet cable. With its widespread use in IP cameras, VoIP phones, and wireless access points, ensuring PoE functionality is crucial for both installers and network administrators. A critical tool in this domain is the PoE Tester. This article will explore PoE testers, their functions, types (active and passive), how they work, and the key advantages they offer. We will also discuss their real-life applications and how they can help troubleshoot and optimize PoE systems.
What is a PoE Tester?

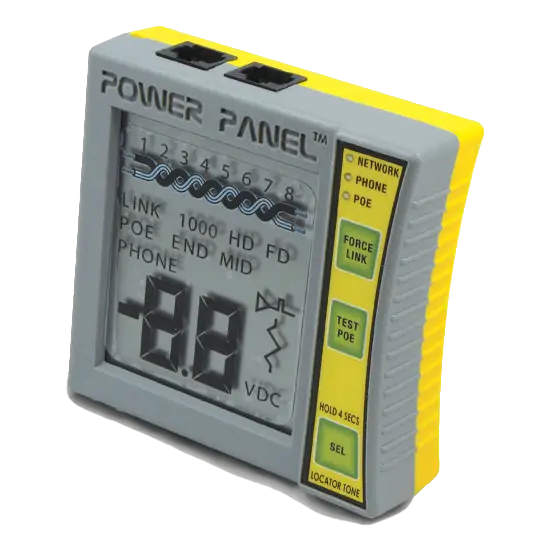

A PoE tester is a diagnostic tool designed to measure, analyze, and validate the functionality of Power over Ethernet (PoE) systems. PoE technology enables the transmission of both electrical power and data over a single Ethernet cable, making it easier to install and maintain devices like IP cameras, wireless access points, VoIP phones, and other network-powered devices. As PoE systems grow more complex and widespread, verifying the integrity and functionality of power delivery is crucial—and that’s where a PoE tester comes in.
The primary role of a PoE tester is to detect, verify, and measure the power being delivered over Ethernet cables. It helps installers and technicians ensure that PoE switches or injectors are supplying adequate power and that connected devices are receiving the right amount of power to operate correctly. This ensures smooth functioning and reduces the risk of device failures due to insufficient or excessive power.
PoE testers are essential for professionals in several industries:
- Security and Surveillance: Installers use PoE testers when setting up IP cameras, ensuring that each camera receives enough power over long distances or through multiple cables.
- Telecommunications: VoIP phones often rely on PoE for power, and testers help ensure that phone systems are working without power issues.
- Network Management: Wireless access points and other network devices benefit from PoE, and testing ensures that the power source is properly delivering the required voltage and wattage.
A PoE tester not only checks for power but also often confirms whether data is being transmitted along with power. Since PoE combines both power and data in the same cable, verifying both components is critical for troubleshooting. Without the proper balance, devices may experience issues such as intermittent operation or complete failure.
Some PoE testers are equipped to measure power at various levels, depending on the PoE standard being used. For example, PoE comes in several variations, such as:
- PoE (802.3af): Delivers up to 15.4 watts.
- PoE+ (802.3at): Delivers up to 30 watts.
- PoE++ (802.3bt): Delivers up to 60 or even 100 watts for high-power devices.
For each of these standards, the PoE tester will confirm if the power being delivered matches the requirements of the connected device.
In addition, many modern PoE testers can measure the wattage draw of a device, allowing technicians to monitor how much power a device is actually using. This feature is particularly important for high-power devices, which may draw close to the maximum wattage allowed by the switch or injector. By providing this level of detail, PoE testers give users the information they need to balance the power load on their network effectively.
In summary, a PoE tester is indispensable for:
- Verifying PoE functionality: Ensures the power supply is active and meets the required voltage and wattage levels.
- Diagnosing issues: Helps identify where in the network a power-related issue might exist, whether it’s at the PoE switch, injector, or cable.
- Protecting devices: Prevents damage to connected devices by ensuring proper power levels are delivered, avoiding over or underpowering.
Why Are PoE Testers Important?
PoE installations can be complex, and power-related issues can cause significant network downtime. A device may not function correctly if it doesn’t receive the right amount of power, or worse, it could be damaged if overpowered. Using a PoE tester can help prevent such issues by allowing technicians to verify power levels before deploying equipment. Additionally, PoE testers can ensure network reliability, minimize installation time, and help troubleshoot issues when devices fail or exhibit poor performance.
How Do PoE Testers Work?
PoE testers are essential tools used to analyze and verify the proper functioning of Power over Ethernet systems. Their primary role is to assess whether the Ethernet cable delivers both power and data to connected devices like IP cameras, VoIP phones, or wireless access points. By diagnosing power and connectivity issues, PoE testers help ensure that these devices operate reliably. Let’s break down how they work in more detail.
1. Connection and Power Detection
At the most basic level, PoE testers work by connecting to an Ethernet cable between the PoE power source (a switch, injector, or hub) and the powered device (PD). Once connected, the tester measures the voltage and current flowing through the cable to determine if power is being supplied correctly.
PoE technology transmits power over specific pairs of wires in the Ethernet cable. Depending on the PoE standard being used, power can be delivered over two pairs (in standard PoE) or four pairs (in PoE++), and the tester checks the configuration to ensure it’s compliant with the expected standard. The tester can also display whether the cable is transmitting power over the correct wire pairs—useful for detecting wiring or connector issues.
- Mode A (Endspan): Power is delivered over the data pairs (pins 1, 2, 3, 6).
- Mode B (Midspan): Power is delivered over the spare pairs (pins 4, 5, 7, 8).
- 4-Pair Power Delivery (PoE++): Power is delivered over both the data and spare pairs to supply high-wattage devices.
By plugging the PoE tester into the cable, it detects and displays the voltage and PoE mode (A, B, or 4-pair), showing if the power is delivered correctly for the given standard (e.g., 802.3af, 802.3at, 802.3bt).
2. Wattage and Power Measurement
Beyond simply detecting the presence of power, more advanced PoE testers can measure current and wattage draw. This is critical for troubleshooting devices that require a specific amount of power to function, such as high-power devices (like PTZ cameras or LED lighting) that might demand up to 60 or even 100 watts of power.
- Wattage Measurement: By measuring the power consumption (in watts), the tester provides valuable insight into how much power the device is drawing. For example, a tester might show that an IP camera is consuming 12 watts of power, helping the installer confirm that it’s within the limits of the PoE standard being used (e.g., 802.3af can deliver up to 15.4 watts).
- Voltage Drops: PoE testers can also detect voltage drops over longer cable distances. Voltage tends to decrease as the cable length increases, especially in scenarios where power-hungry devices are involved. This can lead to insufficient power reaching the device. By measuring voltage at both the power source and the device end, the tester helps identify if the distance is too great or if there are issues with the cabling.
For instance, if the tester shows a voltage drop from 48V at the source to 42V at the device, the user can determine that either a higher-quality cable or a different power configuration (e.g., using PoE++ for longer distances) may be needed.
3. Detecting Data Transmission
In addition to checking power, PoE testers can also verify data transmission across the Ethernet cable. Since PoE transmits both power and data over the same cable, it’s essential to ensure that the cable is delivering data properly alongside the power. If there’s a problem with the data transmission, the connected device may not work correctly even if it’s receiving adequate power.
PoE testers check whether the device can establish a proper data connection (e.g., a camera sending video or a wireless access point transmitting data). The tester may display details such as:
- Link Speed: Whether the connection is at 10Mbps, 100Mbps, or 1Gbps.
- Data Continuity: Whether data signals are being transmitted without interruptions or signal degradation.
This feature is useful when diagnosing network issues where the device appears to be powered but isn’t communicating with the network due to data transmission issues.
4. Standard and Power Class Detection
PoE testers are often capable of detecting the PoE standard (e.g., 802.3af, 802.3at, 802.3bt) being used and identifying the power class of the connected device. The IEEE PoE standards specify various power classes, which indicate how much power a device requires or the maximum power that a PoE source can deliver.
- Power Classes: PoE devices are classified from Class 0 to Class 8, each representing different power levels. For example:
- Class 0: 0.44W to 12.95W (default for 802.3af)
- Class 4: Up to 25.5W (PoE+ standard)
- Class 8: Up to 100W (PoE++ standard)
The PoE tester identifies the device’s power class and confirms that the switch or injector is supplying the required power for that specific class. If the power class and power supply don’t match, the tester can alert the technician to potential issues before the device is deployed.
5. Simulating PoE Devices (Active PoE Testers)
Active PoE testers have an additional feature: they can simulate the presence of a PoE-powered device (PD). By mimicking the power requirements of a real device, these testers force the PoE switch or injector to deliver power as though a real device were connected. This feature allows technicians to:
- Verify power delivery: Test the maximum power output from the switch or injector before attaching sensitive devices.
- Detect power-related issues: See how much power would be delivered to a device under real-world conditions, ensuring the installation will be reliable.
Simulating a powered device allows for real-time measurement of voltage, current, and wattage, which provides a deeper understanding of the PoE system’s performance. This is especially useful during initial installations or when troubleshooting power issues in larger or more complex networks.
6. Cable Diagnostics
Some PoE testers also provide cable diagnostics, checking for faults such as short circuits, open pairs, or incorrect wiring that could impact both power and data transmission. These features add an extra layer of troubleshooting by identifying physical cabling problems before they become major issues. Cable diagnostics can help reduce installation time and ensure that all cables are functioning properly from the start.
Summary of PoE Tester Operations:
- Connect to Ethernet cables between the PoE power source and powered device.
- Measure and display voltage, current, and wattage to ensure the proper amount of power is delivered.
- Verify both data and power are transmitted through the Ethernet cable.
- Simulate PoE devices to assess power delivery under real-world conditions (for active testers).
- Provide cable diagnostics to identify issues like shorts or incorrect wiring.
- Help determine if a PoE switch, injector, or device is operating within the correct PoE standard and power class.
Types of PoE Testers
PoE testers come in a variety of forms, each designed to meet the specific needs of network installers, administrators, and technicians working with Power over Ethernet (PoE) systems. The two main categories of PoE testers are Active PoE Testers and Passive PoE Testers. While both are used to measure the performance and functionality of PoE systems, they differ in terms of functionality, depth of diagnostics, and cost. Understanding these types and their unique features is essential to choosing the right tool for your needs.
Active PoE Testers
Active PoE testers are more advanced diagnostic tools that interact directly with the PoE network. They simulate the connection of powered devices (PDs) such as IP cameras, wireless access points, or VoIP phones, and provide comprehensive details about the power and data being delivered over the Ethernet cable.
Key Features of Active PoE Testers:
- Real-Time Power Measurement: Active testers measure and display voltage, current, and wattage in real time. This allows the user to assess the actual power being consumed by a connected device or simulate power consumption to verify if a PoE switch or injector can deliver the necessary power for a specific device. This is particularly useful when working with high-power devices that draw significant amounts of energy, such as motorized PTZ cameras, wireless access points, or digital signage.
- Power Class Detection: Active PoE testers can identify the power class of both the power sourcing equipment (PSE) and the connected device (PD). This ensures that the PoE switch or injector is providing power at the correct level according to the PoE standard (802.3af, 802.3at, or 802.3bt). For example, they can check if a PoE+ switch is delivering the correct 30 watts required for a PoE+ device, or if a PoE++ switch is delivering enough power for a higher-power Class 8 device.
- Simulating Powered Devices: These testers can mimic a PoE-powered device to see how the PoE switch or injector responds. By simulating different power classes and loads, the technician can ensure that the power supply is adequate for the device being deployed. This feature is especially useful during pre-installation checks to verify power delivery before connecting expensive or sensitive devices.
- Cable Diagnostics: Some active testers offer additional features such as cable testing and fault detection. They can check for shorts, incorrect wiring, or poor-quality cables that may impact both power and data transmission. This ensures that the physical infrastructure is sound before devices are connected.
- Data Link Testing: Active testers can also assess the data transmission speed and quality, ensuring that both power and data are being delivered effectively over the same cable. They may show the link speed (10Mbps, 100Mbps, 1Gbps, or 10Gbps) and verify that the Ethernet cable is handling the appropriate bandwidth for the connected devices.
- PoE Budget Analysis: In larger installations where multiple devices draw power from a single switch or injector, active testers help analyze the total power consumption (wattage draw) of all connected devices. This allows network administrators to ensure that the PoE switch is not overloaded, avoiding scenarios where devices receive insufficient power.
Advantages of Active PoE Testers:
- Comprehensive Diagnostics: Active PoE testers offer detailed information, from power consumption to link speed, allowing for deep troubleshooting of PoE networks.
- Wattage Monitoring: They measure real-time wattage draw, ensuring devices receive the correct amount of power.
- Device Simulation: By simulating different power classes, active testers help prevent power mismatches and confirm that devices will operate correctly once connected.
- Versatility: These testers are suitable for a wide range of PoE applications, including high-power systems and large-scale deployments.
Disadvantages of Active PoE Testers:
- Cost: Due to their advanced features, active PoE testers are generally more expensive than passive testers.
- Complexity: While more powerful, active testers may require a learning curve for those unfamiliar with their features.
Passive PoE Testers
Passive PoE testers are simpler, more basic tools that provide essential information about whether PoE is present on a cable and some limited data about the power being delivered. These testers do not simulate powered devices or offer the detailed diagnostic features that active testers provide, but they are ideal for quick and easy checks of PoE functionality.
Key Features of Passive PoE Testers:
- Power Detection: The primary function of a passive PoE tester is to confirm whether PoE power is present on an Ethernet cable. This is useful for quick checks during installation or troubleshooting to verify that the PoE source is functioning correctly and supplying power to connected devices.
- Basic Voltage Measurement: Some passive testers provide basic voltage measurements, displaying whether the correct voltage level is present on the cable. For example, they might show whether the voltage is in line with the standard 48V provided by most PoE sources. This is helpful for confirming that the power delivery is within the expected range.
- Simple Interface: Passive testers are often designed for ease of use, with a plug-and-play interface. Simply connecting the tester to an Ethernet cable allows the user to see if power is being supplied. This simplicity makes passive testers suitable for technicians who don’t need detailed diagnostic information.
- Power Mode Identification: Passive testers can identify whether power is being delivered over Mode A (data pairs: pins 1, 2, 3, 6) or Mode B (spare pairs: pins 4, 5, 7, 8). This helps ensure that the cable is wired correctly for the type of PoE being used.
Advantages of Passive PoE Testers:
- Quick Checks: Passive testers provide a fast and efficient way to verify the presence of PoE on a cable, making them ideal for basic troubleshooting and installation tasks.
- Affordability: Passive PoE testers are generally more affordable than active testers, making them an attractive option for technicians on a budget or for those who only need basic functionality.
- Ease of Use: These testers are straightforward and require minimal training, making them accessible for network technicians of all skill levels.
Disadvantages of Passive PoE Testers:
- Limited Diagnostics: Passive testers lack the ability to measure current, wattage, or simulate device power consumption, offering only basic voltage readings and power presence indicators.
- No Device Simulation: Unlike active testers, passive models cannot simulate a powered device to test the capabilities of a PoE switch or injector, limiting their usefulness in more complex installations.
Key Differences Between Active and Passive PoE Testers
| Feature | Active PoE Testers | Passive PoE Testers |
|---|---|---|
| Power Measurement | Measures voltage, current, and wattage in real time | Basic voltage detection |
| Wattage Draw Monitoring | Yes, can measure real-time power consumption by devices | No |
| Device Simulation | Simulates powered devices to test PoE capabilities | No simulation capabilities |
| Data Link Testing | Tests link speed and data transmission quality | No data transmission testing |
| Cable Diagnostics | Can identify faults such as shorts or incorrect wiring | Limited or no cable diagnostics |
| PoE Standards | Detects PoE standard (802.3af/at/bt) and power class | Limited to basic power detection |
| Cost | Higher, due to advanced features | Lower, designed for basic functionality |
| Ease of Use | More complex, requires training | Simple, plug-and-play design |
Choosing Between Active and Passive PoE Testers
The choice between active and passive PoE testers depends on your specific needs and the complexity of the PoE installations you’re working with.
- Active PoE Testers are ideal for professional network administrators or technicians who work with complex PoE systems, particularly those involving high-power devices or large-scale installations. These testers provide in-depth diagnostics, real-time power measurements, and the ability to simulate devices, making them versatile and powerful tools for troubleshooting and verifying PoE functionality.
- Passive PoE Testers are best suited for basic installation and troubleshooting tasks. If you only need to verify whether PoE power is present on a cable and check for basic voltage levels, passive testers offer a quick, cost-effective solution.
Wattage Draw and Its Importance in PoE Installations
Wattage draw refers to the amount of power a device consumes when operating over a Power over Ethernet (PoE) connection. Understanding wattage draw is crucial for ensuring the reliable performance of network-powered devices, especially in installations where multiple devices rely on the same PoE switch or injector. Properly managing wattage draw prevents power supply issues, optimizes network performance, and helps avoid damaging expensive equipment.
1. What is Wattage Draw?
Wattage draw is the measurement of electrical power (in watts) that a powered device (PD) consumes via the Ethernet cable. PoE systems deliver both power and data over the same cable, but the amount of power available depends on the PoE standard in use. Devices like IP cameras, wireless access points, VoIP phones, and other network devices all require specific wattage to function properly.
For example:
- VoIP phones might require around 5-10 watts.
- Standard IP cameras might need around 10-15 watts.
- PTZ (Pan-Tilt-Zoom) cameras, wireless access points, and other high-powered devices can draw 30 watts or more.
Ensuring that each device receives the correct wattage is critical for avoiding performance issues, such as devices failing to operate, data loss, or intermittent power outages.
2. The Role of PoE Standards in Wattage Delivery
Different PoE standards are designed to deliver varying amounts of power, ranging from lower-power devices to those requiring much higher wattage. The current PoE standards include:
- PoE (IEEE 802.3af): Delivers up to 15.4 watts, suitable for low-power devices like VoIP phones or basic IP cameras.
- PoE+ (IEEE 802.3at): Delivers up to 30 watts, used for devices like wireless access points or PTZ cameras.
- PoE++ (IEEE 802.3bt): Delivers up to 60 watts on Type 3 and up to 100 watts on Type 4, designed for devices with high power requirements, such as digital signage, LED lighting, and advanced surveillance cameras.
When deploying a PoE installation, it is essential to select the correct PoE standard based on the wattage draw of the devices. Using a lower standard (such as PoE) for a high-power device could result in power insufficiency, leading to the device not functioning properly. Conversely, using a high-power PoE standard for a device that only requires a small amount of power could result in unnecessary energy consumption.
3. Why Is Wattage Draw Important in PoE Installations?
Understanding wattage draw is essential for several reasons, including preventing power overload, optimizing network performance, and ensuring device longevity.
a. Preventing Power Overload
PoE switches and injectors have a limited power budget, which refers to the total amount of power they can supply across all connected devices. If the combined wattage draw of the devices exceeds the power budget, some devices may receive insufficient power or stop functioning altogether. This can cause network disruptions, intermittent device failures, or complete system downtime.
For example, a PoE switch with a power budget of 250 watts can power up to 8 devices that draw 30 watts each (PoE+ standard). If an additional device is connected, drawing more than the switch’s available power, one or more devices may fail to operate.
By measuring the wattage draw of each device using a PoE tester, installers and network administrators can ensure that the switch’s power budget is not exceeded. This allows them to balance power loads efficiently and prevents power-related issues during operation.
b. Optimizing Network Performance
In addition to preventing overloads, monitoring wattage draw helps optimize network performance. Power issues can lead to device failures or unreliable performance, which can impact the overall network. For instance, IP cameras may intermittently lose power, resulting in gaps in surveillance footage, or wireless access points may go offline, causing connectivity issues for users.
By regularly measuring wattage draw with a PoE tester, technicians can spot potential power-related problems before they lead to device failures. This proactive approach ensures that devices receive the necessary power to function optimally, reducing downtime and maintaining consistent network performance.
c. Ensuring Device Longevity
Excessive or insufficient power delivery can shorten the lifespan of network devices. Devices that are underpowered may experience performance issues or hardware stress, while devices receiving too much power might overheat, leading to premature failure.
Monitoring wattage draw is critical in protecting sensitive equipment and ensuring that devices operate within their specified power ranges. PoE testers allow installers to verify that each device is drawing the correct amount of power, safeguarding the health of the overall PoE network.
4. Real-World Scenarios for Wattage Monitoring
In real-world PoE installations, wattage draw monitoring plays an important role in several situations:
a. Deploying High-Power Devices
When deploying high-power devices like PTZ cameras, digital signage, or lighting systems, it’s critical to ensure they are receiving sufficient wattage. These devices often draw close to or exceed the limits of standard PoE or PoE+ systems, making it necessary to use PoE++ (802.3bt) switches or injectors. In these cases, PoE testers are used to verify that the power source can deliver the required wattage, preventing underperformance or device failure.
For instance, a PoE tester can measure the wattage draw of a PTZ camera, confirming that it is operating at its optimal power level. This prevents the camera from losing functionality during periods of high power demand, such as when it moves or zooms.
b. Balancing PoE Switch Loads
In larger installations, where multiple devices are connected to a PoE switch, wattage draw monitoring helps balance the power load across all ports. By measuring the power consumption of each device, installers can distribute devices evenly across switches to avoid overloading any single PoE switch or injector.
For example, in a security system with 20 IP cameras, each drawing 15 watts, an installer can ensure that the total wattage draw remains within the PoE switch’s power budget, preventing issues during periods of high activity, such as when all cameras are recording simultaneously.
c. Troubleshooting Power-Related Issues
When a device isn’t functioning correctly, one of the first things to check is the wattage draw. PoE testers allow technicians to quickly verify whether the device is receiving adequate power. If a device is not drawing the expected wattage, the technician can identify potential causes, such as a faulty PoE switch, poor cabling, or power budget overload.
For example, if a wireless access point is dropping connections, a PoE tester can measure its wattage draw to see if it is underpowered. If the access point is not receiving enough power due to a long cable run or an overloaded switch, the technician can take corrective action, such as reducing the cable length or upgrading to a PoE+ switch.
5. How PoE Testers Help Measure Wattage Draw
PoE testers, particularly active testers, play a critical role in measuring wattage draw during installation and maintenance. These testers simulate a powered device (PD) and measure the actual wattage being delivered by the PoE switch or injector. They provide real-time data on voltage, current, and wattage, allowing installers to verify that the power being delivered matches the needs of the connected devices.
With features like:
- Wattage monitoring: Displays the real-time wattage draw of connected devices.
- Voltage and current measurement: Confirms that devices receive the appropriate voltage and current levels.
- Power class detection: Ensures that devices and switches are operating within the correct PoE power class (e.g., Class 0-8).
Using these features, PoE testers allow technicians to identify and correct power-related issues before they affect device performance.
Final Thoughts and Conclusion
PoE testers are a crucial part of the toolkit for anyone involved in the design, installation, or maintenance of PoE networks. Whether you’re a seasoned network engineer managing large-scale installations or a technician performing a routine setup in a small office, PoE testers provide the insights and diagnostics needed to ensure optimal network performance.
From measuring wattage draw to detecting power class, PoE testers help maintain a stable, reliable, and efficient network. With the increasing adoption of PoE technology in various industries, these testers will remain an indispensable asset for years to come, ensuring that networks run smoothly and devices stay powered.
Investing in a high-quality PoE tester is not just a smart move for today’s installations but also a preparation for the future as PoE technology continues to evolve and power more devices across diverse applications.
