When discussing networking and telecommunications, the terms RJ11 and RJ12 are frequently encountered. Both are registered jacks used in telephone and network connections, but there are distinct differences in their structure, usage, and benefits. This article breaks down these differences and explores real-life applications and solutions that rely on these connectors.

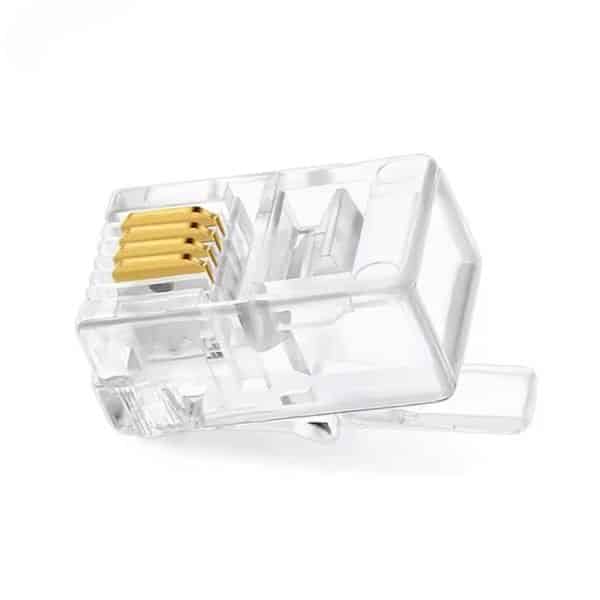

What is RJ11?
RJ11 (Registered Jack 11) is the most commonly used connector for telephone line connections, particularly in residential settings. It features a 4-position, 2-conductor (4P2C) configuration in its standard form. The “4P” refers to the four potential positions for wires in the connector, while the “2C” or “4C” refers to the number of actual wires (conductors) used within the connector.
RJ11 typically only uses the center two pins for telephone line communication, which is sufficient for a single phone line. This makes it more compact and simpler than other registered jacks designed for more complex applications. The extra positions in the connector are often unused in standard installations, but in 4P4C versions, the additional conductors can be used for supplementary features such as power for a second phone line.
Where is RJ11 Used?
- Landline telephones: RJ11 is the go-to connector for single-line landline telephones in both homes and small offices. Despite the growing use of digital and mobile communications, many places still rely on RJ11 connections for landline services.
- DSL internet connections: RJ11 is crucial in Digital Subscriber Line (DSL) setups, where it links the telephone lines to a DSL modem. It allows simultaneous phone and internet service over the same line, thanks to the use of filters or splitters that separate the voice and data frequencies.
- Fax machines and modems: Legacy office equipment, like fax machines and dial-up modems, also utilize RJ11 for connecting to the phone line, providing communication services that many businesses still use today.
- Home alarm systems: Some home security systems use RJ11 connectors to maintain a phone line connection for communicating with monitoring services.
Benefits of RJ11
- Compact and simple design: The RJ11 connector is small, straightforward, and easy to install or replace. Its design makes it perfect for the basic connectivity requirements of telephones and certain networking equipment.
- Cost-effective: Due to its simplicity and widespread use, RJ11 connectors and cables are inexpensive and readily available in most stores that sell telecommunication or networking equipment. This cost-effectiveness makes it a preferred choice for residential and small office setups.
- Compatibility: RJ11 is universally supported in almost every landline telephone system, making it a widely compatible option for users still relying on traditional phone services.
- Easy installation: With only two or four conductors to worry about, setting up or troubleshooting an RJ11 connection is relatively simple, even for non-professionals.
RJ11 remains a key component in traditional telecommunication infrastructures. While its use in data networking is limited to DSL and fax/modem connections, it is still essential in homes and businesses relying on POTS (Plain Old Telephone Service). As telephony gradually shifts to VoIP (Voice over Internet Protocol), RJ11’s relevance may reduce, but it will still be around for some time due to its role in legacy systems.
What is RJ12?
RJ12 (Registered Jack 12) is a connector similar in appearance to RJ11 but with enhanced functionality. The key difference lies in its 6-position, 6-conductor (6P6C) configuration, meaning that all six positions in the jack are wired. This allows RJ12 to carry more data or signals compared to the simpler 2-conductor or 4-conductor setups of RJ11.
Where RJ11 is used primarily for basic telephone systems, RJ12 is designed for more complex telecommunications environments. It is particularly useful in multi-line telephone systems, such as those used in office settings, where multiple phone lines need to be managed and interconnected. The additional conductors in RJ12 make it suitable for managing more than one phone line through a single jack, adding flexibility and functionality.
RJ12 supports features such as intercom, call forwarding, conference calling, and other advanced telephony functions that are often required in businesses. Its ability to handle several lines within a single connector makes it a more sophisticated alternative to RJ11 for commercial telephony setups.
Where is RJ12 Used?
RJ12 Male Head
- Business phone systems: RJ12 connectors are primarily used in Private Branch Exchange (PBX) systems, which allow businesses to manage internal and external phone lines. With RJ12, users can connect multiple lines through one phone, enabling features like call routing and internal extensions.
- Multi-line telephone setups: RJ12 is also ideal for phones that need to handle multiple lines. This is especially useful for customer service centers, where several phone lines are managed by the same system, or executive offices, where users might require more than one active phone line for communication.
- Key Telephone Systems (KTS): RJ12 is a popular connector in Key Telephone Systems, which are used in small to medium-sized businesses that need both external communication lines and internal communication among employees. KTS systems rely on RJ12 to provide access to multiple lines and internal routing between phones.
- Business modems: Some modems and telecommunication equipment that require multiple lines use RJ12 connectors for their setup. The additional wiring capacity of RJ12 makes it compatible with more advanced equipment that needs to manage larger volumes of data or calls.
Benefits of RJ12
- Supports multiple lines: One of the biggest advantages of RJ12 is its ability to manage multiple phone lines in one jack. This feature is critical in business environments where handling several phone lines from a single location is necessary.
- Advanced functionality: With its ability to connect more conductors, RJ12 allows for the use of advanced telephony features like call transfer, conferencing, and intercom systems. These features are invaluable in businesses that rely on efficient and versatile communication solutions.
- Centralized communication: RJ12’s multi-line capability allows businesses to manage both external communication and internal extensions through the same system. This makes RJ12 the perfect solution for businesses with customer service departments, executive suites, or high-traffic office environments.
- Durability and performance: The use of additional conductors in RJ12 provides greater stability in phone line connections. The extra wiring allows for reduced interference and better signal transmission, making it more reliable in busy office environments.
RJ12 in Modern Communication Infrastructure
While RJ12 may seem like a technology primarily designed for traditional phone systems, it still plays an important role in hybrid communication setups. In VoIP (Voice over IP) systems, for instance, some gateway devices or PBX systems can still use RJ12 to interface with legacy phone systems, ensuring that businesses can transition to modern communication solutions without losing functionality.
One example is a client in a customer service center that relies on RJ12 to manage four separate phone lines. The RJ12 setup not only allowed seamless call routing and conferencing but also ensured minimal signal loss, a critical factor in handling high call volumes throughout the day. In this case, the additional conductors provided the robustness needed for the business’s telephony demands, demonstrating why RJ12 is essential in multi-line environments.
Key Differences Between RJ11 and RJ12
Although RJ11 and RJ12 connectors look nearly identical, they serve different purposes and have distinct wiring configurations. Understanding these differences is crucial for selecting the right connector for your telecommunication or networking needs. Below are the key differences between RJ11 and RJ12:
1. Number of Conductors
- RJ11: RJ11 typically has a 6-position, 2-conductor (6P2C) configuration, meaning only two of the six available positions have conductors. There are versions of RJ11 that use 4 conductors (6P4C), but the two central conductors are usually sufficient for basic telephony, such as connecting a single phone line.
- RJ12: RJ12 uses a 6-position, 6-conductor (6P6C) configuration, with all six positions in the connector wired. This means RJ12 can carry three phone lines or handle other advanced telecommunications needs that require more conductors.
2. Purpose and Usage
- RJ11: RJ11 is primarily used in residential settings for connecting single-line telephones, fax machines, and modems. It is also commonly used in DSL internet setups where phone and data services are provided on the same line. RJ11 is ideal for simple applications where only basic telephony features are required.
- RJ12: RJ12 is designed for business environments where multiple lines are necessary. It is often found in Private Branch Exchange (PBX) and Key Telephone Systems (KTS), which are prevalent in office settings. RJ12’s additional conductors allow it to manage multiple phone lines and support advanced features like intercom systems, call routing, and conference calling.
3. Wiring Configuration
- RJ11: The 6P2C and 6P4C configurations in RJ11 mean that only the center two or four wires are used, making it a simpler option for residential telephony. This basic setup provides connectivity for a single phone line and is cost-effective for small-scale usage.
- RJ12: In contrast, RJ12 uses a 6P6C configuration, with all six pins wired. This allows for handling multiple phone lines and more complex telephony setups. The extra conductors also provide greater versatility in terms of data and signal transmission, making RJ12 a better option for high-traffic communication systems in business environments.
4. Functionality
- RJ11: With fewer conductors, RJ11 offers basic functionality, such as enabling one phone line or a simple DSL connection. Its main function is to support single-line telephone service in homes or small offices. It’s highly efficient for voice communication but limited in its ability to handle multiple lines or advanced features.
- RJ12: RJ12, on the other hand, is designed for more complex systems, allowing for multi-line functionality and supporting features like call transfer, conference calls, and internal communication (intercom). This makes RJ12 a go-to choice for businesses with PBX systems or those requiring robust internal and external communication capabilities.
5. Physical Appearance and Compatibility
- RJ11: RJ11 and RJ12 connectors look almost identical, and RJ11 jacks can often be inserted into an RJ12 socket without issue. However, due to its simpler wiring, an RJ11 connector will only use the center two conductors in an RJ12 jack, limiting its functionality. This is fine for single-line telephones but may not work in environments where multiple lines or advanced features are needed.
- RJ12: While RJ12 connectors can fit into an RJ11 port, using an RJ12 connector in such a scenario would waste the additional conductors provided by RJ12, rendering them unused. As a result, while the two connectors are physically compatible, they are designed for very different purposes.
6. Signal Handling and Performance
- RJ11: With fewer conductors, RJ11 is sufficient for transmitting voice signals over short distances, such as in residential telephone setups. However, it is less capable of handling large volumes of data or multiple communication lines. For users seeking basic telephony without the need for additional lines or complex functionality, RJ11 works perfectly.
- RJ12: RJ12’s additional conductors allow for stronger signal integrity and better performance over longer distances or in settings where multiple lines need to be supported. This makes RJ12 a more robust solution for businesses that require reliable and interference-free communication, particularly in high-volume environments like call centers or executive offices.
7. Cost
- RJ11: Since RJ11 is simpler and more widely used, it is generally more cost-effective than RJ12. It’s the standard for residential telephony, and its widespread availability makes it easy to find at a low price.
- RJ12: Due to its more complex wiring and usage in business environments, RJ12 tends to be slightly more expensive than RJ11. However, the cost is justified by its ability to handle multiple lines and provide advanced telephony features that are crucial for businesses.
In summary, the differences between RJ11 and RJ12 lie primarily in their wiring configurations, usage, and functionality. While RJ11 is best suited for residential or small-scale telephony, RJ12 is the preferred choice for business environments where managing multiple phone lines and utilizing advanced communication features are necessary.
RJ11 and RJ12 connectors
RJ11 and RJ12 connectors look similar, but they have key differences in pin usage and application. Here’s a breakdown of the pin configurations for both:
1. RJ11 (6P2C or 6P4C):
- 6P2C (6 positions, 2 contacts): Commonly used for single-line telephones, with only two wires (usually the center two) connected.
- Pin 3 (Tip): Transmits signal (+)
- Pin 4 (Ring): Receives signal (-)
- 6P4C (6 positions, 4 contacts): Used for two-line phones.
- Pin 2: Second line (-)
- Pin 3: First line (+)
- Pin 4: First line (-)
- Pin 5: Second line (+)
- 6P2C (6 positions, 2 contacts): Commonly used for single-line telephones, with only two wires (usually the center two) connected.
2. RJ12 (6P6C):
- RJ12 uses all six pins and is typically used for PBX systems.
- Pin 1: Third line (-)
- Pin 2: Second line (-)
- Pin 3: First line (+)
- Pin 4: First line (-)
- Pin 5: Second line (+)
- Pin 6: Third line (+)
- RJ12 uses all six pins and is typically used for PBX systems.
In summary, RJ11 typically uses 2 or 4 pins, while RJ12 uses all 6 pins for connecting multiple lines.
Real-Life Experience: Choosing RJ11 or RJ12
When it comes to making a choice between RJ11 and RJ12, the decision largely depends on the specific needs of the environment—whether it’s a home, a small office, or a business with complex communication requirements. Understanding real-life scenarios helps to illustrate why you might opt for one over the other.
Home and Small Office Environments (RJ11)
For most residential users or small home office setups, RJ11 is the clear choice. In real-life applications, RJ11 connectors are often used for basic telephone service or a simple DSL broadband connection, which requires a minimalistic setup. A typical example might be a home that has one phone line connected to a landline telephone, a fax machine, or a modem for internet access. RJ11 is more than adequate in these cases, as it can handle a single telephone line with good signal quality over short distances.
Many users appreciate the simplicity and low cost of RJ11 systems in residential environments. One home user, for instance, shared their experience of rewiring their home’s phone system using RJ11 connectors to extend landline service to several rooms. The process was simple due to the standard 2-conductor setup, and the results were effective, providing a consistent signal throughout the house without the need for complex equipment.
Small Business and Multi-Line Phone Systems (RJ12)
In contrast, businesses or offices that require multiple phone lines benefit greatly from RJ12. Consider a small law firm that needs to manage multiple incoming and outgoing lines. Each attorney may have their own direct line, but the same phones need to handle interoffice communication, conference calls, and call transfers. In this environment, using RJ12 connectors becomes essential because of their ability to carry multiple signals through one jack. This setup ensures that each attorney can manage separate lines efficiently, streamlining communication.
One real-world example comes from a call center that relies heavily on RJ12 connectors for their multi-line telephone system. The call center handles hundreds of calls daily, with multiple agents managing different phone lines from the same desk. Using RJ12’s 6-conductor setup, the center was able to streamline their operations, handling multiple lines through a PBX system. The ability to switch between lines, transfer calls, and use features like intercom and call conferencing made RJ12 a necessity in this environment. The business experienced greater efficiency, and the system was reliable enough to handle high call volumes without signal degradation or cross-talk.
Transition to VoIP Systems
In recent years, many businesses have moved to VoIP (Voice over Internet Protocol) systems, which have led to hybrid setups that still incorporate RJ11 and RJ12 connectors. For instance, a small IT company transitioning to VoIP found that their existing RJ12-based multi-line system could still be used with a VoIP gateway device. This allowed them to keep their familiar phone system while upgrading their overall communication infrastructure. This scenario highlights how RJ12 can still play a critical role even as businesses adopt more modern communication technologies.
Ease of Installation and Maintenance
From a practical perspective, both RJ11 and RJ12 are relatively easy to install and maintain. The difference often comes down to the complexity of the environment. In home setups using RJ11, end-users can typically handle the installation themselves, connecting devices like phones, faxes, or modems to a simple wall jack. In contrast, an RJ12 system in a business setting often requires professional installation, especially if it is part of a PBX or KTS system. However, once installed, the benefits in terms of multi-line communication and functionality are clear.
Key Takeaways from Real-Life Experience:
- Residential/Small Office: RJ11 is perfect for users who need basic telephony or internet connections with no need for multiple phone lines. Its cost-effectiveness, ease of installation, and adequate performance make it ideal for these scenarios.
- Business Environments: For businesses, especially those with multiple departments, customer service centers, or executive offices, RJ12 is a must. The ability to manage multiple lines, support advanced telephony features like conference calling and internal routing, and maintain signal integrity across larger setups makes RJ12 indispensable in professional settings.
- Hybrid Setups: Even as businesses transition to VoIP and other modern communication technologies, RJ12 can remain relevant in hybrid systems that require traditional multi-line functionality alongside digital communications.
Networking Solutions Based on RJ11 and RJ12
Though these connectors are primarily used for telephone systems, they also serve certain networking roles, particularly in the realm of DSL internet connections (for RJ11) and PBX systems (for RJ12). Here’s how they fit into today’s networking landscape:
- RJ11 and DSL Connectivity: RJ11 plays a key role in bringing DSL internet into homes and small businesses. For customers using telephone lines to provide both voice and data services, this jack ensures smooth integration between landline calls and internet data transmission.
- RJ12 and Business Telecommunications: In contrast, RJ12 is crucial for businesses that rely on PBX systems, allowing seamless internal and external communication across multiple lines. This versatility makes RJ12 a vital component in commercial settings.
Choosing the Right Connector: RJ11 or RJ12?
The choice between RJ11 and RJ12 comes down to application needs. Residential users or small offices with basic phone systems can confidently use RJ11, but larger businesses that require multi-line telephony should opt for RJ12 to ensure smooth and efficient communication.
The key takeaway when choosing between RJ11 and RJ12 is to assess the complexity and scale of the communication system you need.
- If your telecommunication needs are basic and you only need a single phone line for voice communication, then RJ11 will likely meet your requirements.
- On the other hand, if your environment requires multiple lines, advanced features, and the ability to manage high call volumes, then RJ12 is the better option.
Final Thoughts and Conclusion
In conclusion, both RJ11 and RJ12 have their distinct advantages. RJ11 offers simplicity and efficiency for basic telephony needs, particularly in residential and small office settings. RJ12, with its multi-line support and robust functionality, is the preferred choice for businesses requiring more complex telephony setups. Understanding these differences helps ensure that you choose the right solution for your environment, whether you’re connecting a home telephone or managing a business’s internal and external communications.
