In today’s fast-paced and power-hungry network environments, the demand for reliable, high-powered PoE solutions is higher than ever. The Enable-IT 395 PoE++ Injector is a compact yet mighty solution tailored for industrial-grade performance, advanced networking setups, and mission-critical applications.
Built with American engineering precision, the Enable-IT 395 stands out as a 56V, 110W IEEE 802.3af/at/bt compliant PoE++ injector, offering seamless support for a wide range of high-powered PoE devices. Whether it’s outdoor security, long-range Wi-Fi deployment, or smart infrastructure, the 395 delivers dependable power and super fast 2.5Gb throughput data – exactly where you need it.

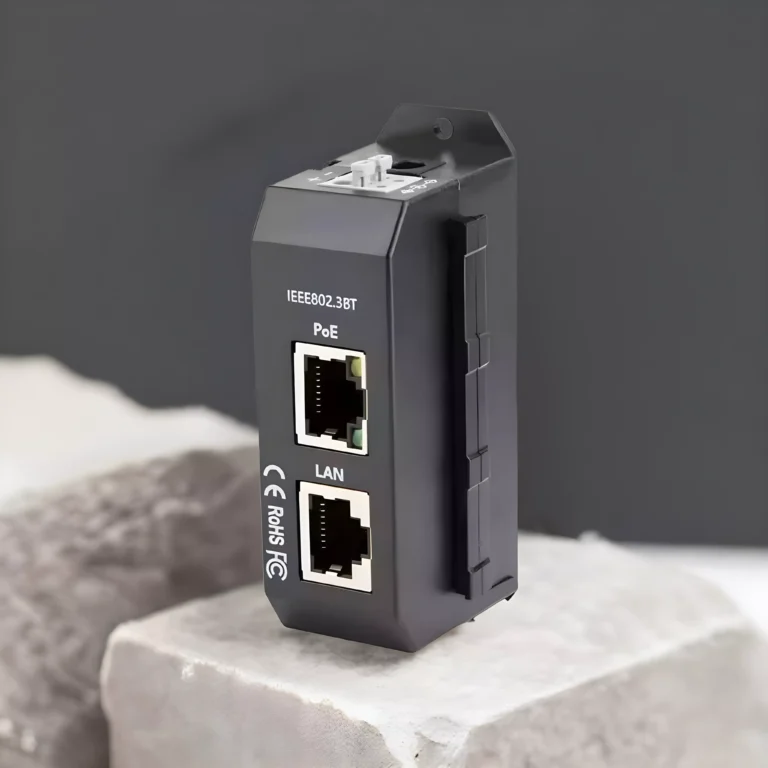

395 2.5 Gigabit PoE Injector Key Features and Highlights
- Power Capacity: 110W at 56VDC output, IEEE 802.3af/at/bt (PoE, PoE+, PoE++) compliant.
- Data Support: Supports full 2.5Gbps Ethernet speeds.
- Dual Power Input Support: Redundant DC input for increased uptime and flexibility.
- PoE Output Modes: Supports both Mode A and Mode B 4-pair output.
- Form Factor: DIN rail mountable, stackable design with rugged industrial-grade ABS casing.
- Temperature Range: Operates from -40°F to 176°F (-40°C to 80°C).
- Safety and Protection: 8KV lightning surge protection, short circuit, over-current, over-voltage protection.
- Fully Transparent: Compatible with all network equipment; does not interfere with protocols or MAC addresses.
Advantages of the Enable-IT 395 PoE++ Injector
The Enable-IT 395 isn’t just another Power over Ethernet device — it’s a robust, industrial-grade solution designed for professionals who need reliability, scalability, and performance in mission-critical networks. Below is a comprehensive look at the many advantages this injector brings to your PoE deployment:
1. High-Powered PoE++ Output (Up to 110W)
The 395 delivers a powerful 110W at 56VDC, conforming to the IEEE 802.3bt standard (PoE++), which enables it to support the most demanding PoE devices on the market. Whether it’s high-performance PTZ cameras with pan-tilt-zoom and onboard heating systems, digital signage displays, LED lighting networks, or point-of-sale kiosks, the 395 has the wattage to power them all. Unlike many low-end injectors, it provides a full 4-pair output using both Mode A and Mode B for maximum energy transfer.
2. Full 2.5 Gigabit Data Support
With data throughput of up to 2.5Gbps, the 395 supports modern network speeds well beyond basic Gigabit Ethernet. This is crucial for high-bandwidth applications such as 4K/8K IP camera feeds, Wi-Fi 6 and Wi-Fi 7 access points, or data-intensive IoT sensors. It eliminates the bottleneck that other injectors with only 1Gbps capability often create, making it future-ready for the next wave of network infrastructure.
3. Long-Distance Capable – Up to 3,500ft with Extenders
The Enable-IT 395 is engineered to support long-distance PoE transmission—up to 3,500ft when paired with an Enable-IT Ethernet extender like the 828 Gigabit or the 865X PRO. This makes it ideal for sprawling campuses, agricultural sites, manufacturing floors, border security installations, and anywhere traditional cabling limits would otherwise prevent PoE deployment. It breaks the 100-meter Ethernet barrier with ease.
4. Dual Redundant Power Inputs
For added reliability, the 395 features dual redundant power input options, allowing for backup DC power supplies to be connected in parallel. This ensures uninterrupted power in critical operations, even in the event of a primary power source failure. It’s especially useful in mission-critical systems like healthcare, emergency response, military, and transportation sectors.
5. Compact, Stackable, DIN Rail Mountable Design
Space is often a constraint in structured wiring environments. The 395’s compact housing and DIN rail mounting capabilities make it easy to install in confined panels or enclosures. The stackable design with interlocking slots allows integrators to build scalable and organized installations without clutter. Ideal for industrial control cabinets, smart building systems, and vehicle enclosures.
6. Industrial Ruggedness
Housed in a durable black ABS enclosure, the 395 is built to withstand the elements. Its operational temperature range from -40°F to 176°F (-40°C to 80°C) ensures year-round reliability in extreme weather, whether it’s a sub-zero winter or scorching desert heat. Combined with humidity tolerance up to 95%, the injector is truly designed for harsh environments.
7. Advanced Surge and ESD Protection
Your network is only as safe as the weakest link. The 395 is equipped with professional-grade protections:
- Lightning Surge Protection: 6KV (Differential), 6KV (Common Mode)
- ESD (Electrostatic Discharge) Protection: 8KV direct and air discharge
These features protect valuable equipment downstream from power spikes and surges often caused by lightning strikes or static discharge.
8. Built-in Smart Safety Features
Safety is non-negotiable in power delivery. The 395 includes:
- Over-Voltage Protection
- Over-Current Protection
- Short-Circuit Protection
- Auto Recovery Mechanism
These fail-safes not only protect the injector itself but also safeguard connected devices, helping prevent permanent hardware damage and costly downtime.
9. Transparent Integration with Any Network
The 395 operates as a midspan or endspan PoE injector and is entirely transparent to network traffic. It does not interfere with network protocols, applications, or MAC address communications. That means you can seamlessly integrate it into any existing infrastructure without needing to reconfigure your switches, routers, or firewalls.
10. American-Made Craftsmanship
Unlike many cheap imported devices that can be compromised with hidden spyware or substandard components, the 395 is designed and manufactured in the USA using high-quality materials and trusted engineering standards. Enable-IT products are known for their superior reliability and are trusted by government agencies, military operations, and major enterprises worldwide.
11. Flexible PoE Delivery Over 2 or 4 Pairs
Depending on the connected device’s requirements, the 395 can deliver power over either 2 pairs or the full 4-pair cable. This versatility ensures full compatibility with both legacy PoE devices and newer, high-draw PoE++ devices.
12. Energy Efficient with Clean Output
The 395 is built to operate with less than 5% output ripple, ensuring stable and clean power delivery. It minimizes power wastage and prevents noise interference that can affect sensitive electronics. This is essential when powering equipment like medical devices or high-resolution video feeds.
Use Case Scenarios
The Enable-IT 395 is engineered to support a wide variety of demanding real-world environments where standard PoE injectors fall short. Its high wattage output, rugged construction, compact form factor, and long-range capability make it ideal for a diverse set of professional applications.
Here are some of the key real-world use cases where the 395 excels:

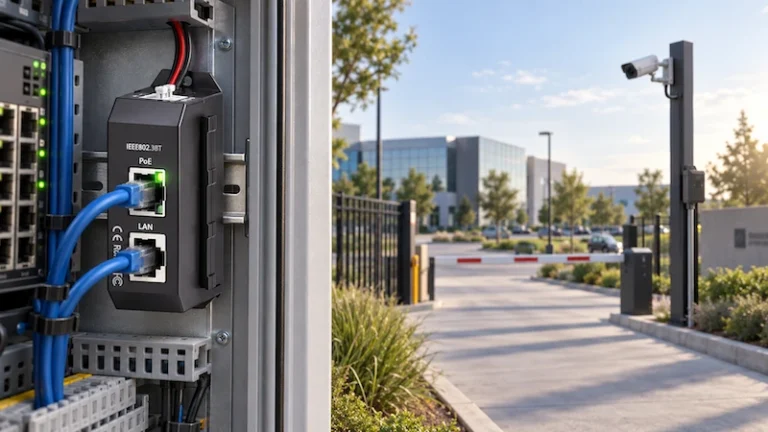

1. High-End Security Camera Installations
Modern PTZ (Pan-Tilt-Zoom) IP surveillance cameras, especially those with heaters, wipers, IR illuminators, or built-in analytics modules, can draw 60–100W of power. The 395 is tailor-made for this class of device.
- Example: Installing Axis Q-series or Hikvision DarkFighterX cameras in parking lots, outdoor perimeters, or border zones.
- Benefit: Long-range PoE support allows cameras to be mounted on poles or buildings thousands of feet from the NVR without power cabling.
2. Long-Distance Wi-Fi 6/6E Access Points
Next-generation Wi-Fi 6 and Wi-Fi 6E access points can demand upwards of 60W for peak performance, especially in high-density areas.
- Example: Stadiums, campuses, remote warehouses, transportation hubs, or outdoor festivals.
- Benefit: Use the 395 to deploy high-performance access points at extended distances, maintaining both power and full-speed 2.5Gbps data throughput.
3. Smart Agriculture & Industrial Automation
Farms and industrial operations often require connectivity in remote areas for sensors, automation, and cameras.
- Example: Agricultural drones, irrigation system controls, weather stations, and thermal imaging cameras for livestock monitoring.
- Benefit: Power and network devices hundreds or thousands of feet away in rugged outdoor environments with just one Ethernet run.
4. Outdoor Digital Signage & Kiosks
High-brightness digital displays, smart kiosks, and interactive terminals require significant power, especially in locations without easy AC access.
- Example: Transit station kiosks, highway LED signs, mall information boards, and outdoor self-service ticket machines.
- Benefit: The 395 injects sufficient power while keeping installation clean and protected from tampering or power grid interference.
5. Smart Buildings and PoE Lighting Systems
As buildings become smarter, more systems are shifting to low-voltage PoE, including LED lighting, HVAC sensors, access control, and intercoms.
- Example: Corporate campuses, green buildings, hospitals, and data centers.
- Benefit: The 395 provides a reliable power backbone that can support entire lighting networks or smart control panels via PoE++.
6. Emergency Communication Systems
Critical infrastructure like emergency call boxes, flood sensors, and early-warning sirens often require reliable power in remote or challenging environments.
- Example: Coastal tsunami alert systems, citywide emergency phone systems, or wildfire detection networks.
- Benefit: Combined with Enable-IT PoE extenders, the 395 can push data and power far into zones where traditional infrastructure can’t reach.
7. Medical and Laboratory Equipment
In some cases, compact medical devices like digital microscopes, diagnostic scanners, or imaging sensors can be PoE-powered in controlled environments.
- Example: In hospitals or mobile medical units where equipment mobility and power cleanliness is vital.
- Benefit: The 395 provides low-ripple, high-wattage power safely over Ethernet, eliminating the need for multiple wall adapters or extension cords.
8. High-Security Access Control Systems
Powering electronic locks, badge readers, biometric scanners, and surveillance at secure entry points requires dependable PoE++.
- Example: Data centers, government facilities, and research laboratories.
- Benefit: By using the 395, all systems can be powered and networked via a single cable with industrial protections like surge and ESD control.
9. Mobile and Vehicle-Based Networks
The compact and rugged design of the 395 allows it to be installed in vehicles, mobile command centers, buses, trains, or even drones.
- Example: Powering onboard Wi-Fi routers, cameras, or tracking systems in fleet vehicles.
- Benefit: Its DIN rail mount and DC input options make integration into mobile DC systems seamless and space-efficient.
10. Remote Infrastructure Monitoring
Critical utilities like pipelines, electrical substations, bridges, and telecom towers need networked sensors and cameras in harsh or remote areas.
- Example: A camera and sensor suite monitoring gas pipelines through mountain terrain.
- Benefit: The 395, combined with rugged PoE extenders, enables full connectivity and power where AC power is completely unavailable.
Technical Specifications Summary
| Feature | Specification |
|---|---|
| Power Output | 110W @ 56VDC, 2.65A |
| PoE Standard | IEEE 802.3af / at / bt (PoE, PoE+, PoE++) |
| Data Rate | Up to 2.5Gbps |
| Interfaces | 1x LAN Input RJ-45, 1x PoE Output RJ-45 |
| Protection | ESD 8KV, Surge 8KV, Short Circuit, Overload |
| Mounting | DIN Rail, Stackable Slots |
| Temperature Range | -40°F to 176°F |
| Dimensions | 2.87″ x 1.7″ x 1.65″ |
| Enclosure | Rugged Black ABS Plastic |
| Certifications | FCC Part 15 Class B, EN55022 Class B, RoHS, CE |
Distance Considerations and Cabling Tips
For deployments over 100 feet, voltage drop becomes a factor. The 395 delivers full power up to 3,500 feet when used with Enable-IT’s Ethernet extenders, but proper cabling is essential:
- Use CAT5e or better for Gigabit speeds.
- For distances over 200’, consider 18 AWG cabling to minimize voltage drop and heat buildup.
- Avoid low-quality 24 AWG cables in extended-distance, high-amp scenarios.
Final Thoughts and Conclusion
Don’t settle for foreign-manufactured injectors with uncertain origins or embedded spyware. The Enable-IT 395 is a Made-in-USA product backed by decades of experience in secure network technology. Engineered with trusted materials and craftsmanship, it offers a level of performance, reliability, and safety unmatched by cheap imports.
Whether you’re building a secure facility, upgrading a smart building infrastructure, or deploying industrial edge devices, the Enable-IT 395 110W PoE++ Injector is the compact powerhouse designed to fuel modern networking – safely, securely and reliably.
With rugged durability, extreme reach, and smart power delivery, it’s the ideal choice for any serious PoE deployment.
