Get more Value out of any Power over Ethernet (PoE) Technology
PoE Distance is as limiting as Ethernet Data Networking.
Power over Ethernet (PoE) is a revolutionary technology that allows network cables to carry electrical power, eliminating the need for expensive power outlets every 100m (328ft) for devices such as Ethernet Switches, IP cameras, wireless access points, access controls and VoIP phones for example. This convergence of data and power over a single cabling infrastructure simplifies installations, reduces costs, and enhances the flexibility of network deployments.
However, to the dismay of all electricians wanting to push power further, all PoE technology is severely handicapped by Data Networking engineers that design Ethernet Data standards into these power products, particularly in terms of distance.
PoE power is for the most part always DC (Direct current) electricity and can go up to 4,000 feet over standard Ethernet copper wiring. This is where Enable-IT’s advanced PoE Injectors and PoE Extenders come into practice as we focus on distance for both Power and Ethernet Data. Enable-IT PoE solutions overcome these constraints and unlock new possibilities.

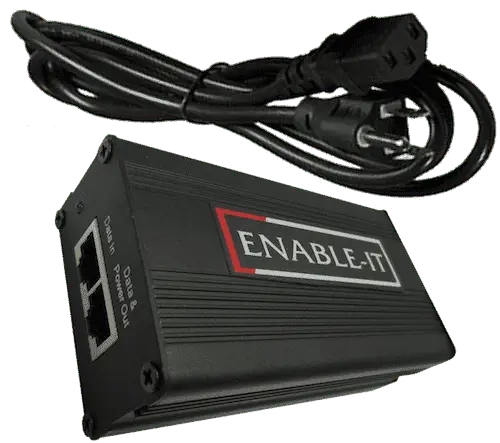

Understanding PoE Injectors
A PoE Injector is a device that converts AC Outlet electricity to a safer and lower energy DC source for input into an Ethernet cable, enabling it to deliver both data and electrical power to a remote device. This functionality is crucial in scenarios where devices such as IP cameras, wireless access points, and VoIP phones are located far from power sources. Traditional PoE standards, such as 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++), impose distance limitations of approximately 328 feet (100 meters). Beyond this range, signal degradation and power loss become significant issues, often requiring additional equipment like repeaters or extra power supplies, which increase the complexity and cost of installations.
Enable-IT PoE Injectors, however, are engineered to address these challenges head-on. Here’s a deeper look into how they work and their unique features:
Key Features and Functionality
- Power Injection: PoE Injectors work by injecting DC power into the Ethernet cable, which carries both power and data to the Powered Device (PD). The injector is typically placed near the power source, such as a network switch or router, and can be used with standard Cat5e, Cat6, or higher-grade Ethernet cables.
- Compatibility and Standards: While traditional PoE injectors are designed to comply with IEEE standards, Enable-IT PoE Injectors go beyond these limitations by supporting passive PoE, which delivers power on all four pairs of the Ethernet cable. This approach maximizes the amount of copper used for power transmission, enabling greater distances and higher power levels than those defined by standard PoE protocols.
- Extended Distance: Enable-IT PoE Injectors are capable of delivering power over copper wire up to 9,000 feet (approximately 2.7 kilometers). This is a significant advancement compared to the 328 feet limitation of standard PoE. This extended reach is particularly beneficial in large-scale deployments, such as campus networks, industrial sites, and remote installations where running additional power lines is impractical or cost-prohibitive.
- Efficiency and Reliability: Unlike standard PoE solutions that rely on the PD (Powered Device) protocol with a timing limitation, Enable-IT Injectors are designed to handle the 25k resistance and timing issues, ensuring consistent performance over long distances. This reliability is critical for maintaining the integrity of both power and data transmission, reducing the risk of device failures and network disruptions.
- Ease of Installation: Enable-IT PoE Injectors simplify the installation process by eliminating the need for additional power sources at remote locations. This not only reduces the complexity of the network setup but also lowers installation costs and time. Network engineers can deploy devices in hard-to-reach or distant areas without worrying about power availability.
Types of PoE Injectors
- Single-Port Injectors: These are used to power a single device, making them ideal for small deployments or individual devices that require power at a distance.
- Multi-Port Injectors: These injectors can power multiple devices simultaneously, providing a scalable solution for larger networks. Multi-port injectors are particularly useful in environments like office buildings, warehouses, and outdoor installations where several devices need to be powered and connected.
- High-Power Injectors: Designed to deliver higher wattages, these injectors support devices that require more power, such as PTZ cameras, high-performance wireless access points, and other power-intensive equipment.
Deployment Scenarios
Enable-IT PoE Injectors are versatile and can be deployed in various scenarios, including:
- Surveillance Systems: Powering IP cameras in remote or outdoor locations without nearby power sources.
- Wireless Networks: Extending power to wireless access points placed in strategic but distant locations for optimal coverage.
- VoIP Systems: Providing power to VoIP phones in large office spaces or multi-building campuses.
- Industrial IoT: Supporting sensors and monitoring equipment in large industrial sites, agricultural fields, or smart cities.
The Benefits of Enable-IT PoE Injectors
Enable-IT’s PoE Injectors offer several key advantages over traditional PoE solutions, making them an ideal choice for various applications. Here are the primary benefits in more detail:
1. Extended Distance Capabilities
One of the most significant benefits of Enable-IT PoE Injectors is their ability to deliver power over much greater distances than traditional PoE solutions. Conventional PoE injectors are limited to about 328 feet (100 meters), which can be a significant constraint for large-scale deployments. Enable-IT’s PoE Injectors can transmit power up to 9,000 feet (approximately 2.7 kilometers), which is a game-changer for applications such as remote surveillance, large campuses, and industrial sites. This extended range is made possible by using all four pairs of the Ethernet cable for power delivery, maximizing the use of available copper and ensuring efficient power transmission.
2. Reliability and Performance
Enable-IT PoE Injectors are designed to handle the challenges associated with long-distance power transmission. Standard PoE solutions often struggle with power loss and signal degradation over extended distances. Enable-IT addresses these issues with advanced engineering that ensures consistent performance and reliable power delivery. The injectors are built to manage the 25k resistance and timing issues that can cause standard PoE systems to fail, providing a robust solution for maintaining power and data integrity even over long distances.
3. Flexibility in Deployment
The flexibility offered by Enable-IT PoE Injectors allows for a wide range of deployment scenarios. Whether you need to power devices in remote locations, industrial environments, or outdoor settings, these injectors provide a versatile solution that simplifies network architecture. The ability to use existing copper wiring further enhances this flexibility, as it eliminates the need for additional electrical infrastructure. This makes Enable-IT PoE Injectors an ideal choice for extending network reach without the complications and costs associated with installing new power lines or intermediate power sources.
4. Cost-Effectiveness
By eliminating the need for intermediate repeaters, power sources, or additional cabling, Enable-IT PoE Injectors can significantly reduce the overall cost of network deployments. The ability to power devices over existing copper infrastructure also minimizes the need for extensive and expensive electrical work. This cost-effectiveness is particularly beneficial for large-scale projects, such as city-wide surveillance systems, extensive agricultural monitoring networks, and multi-building campuses.
5. Enhanced Power Delivery
Enable-IT PoE Injectors deliver superior power by utilizing passive PoE on all four pairs of the Ethernet cable. This approach ensures that the maximum amount of copper is leveraged for power transmission, providing higher power levels to support a broader range of devices. Whether powering high-performance wireless access points, PTZ cameras, or other power-hungry devices, Enable-IT injectors can meet the demands of modern network deployments.
6. Simplified Installation
The simplicity of installation with Enable-IT PoE Injectors is another significant benefit. Traditional PoE deployments often require additional power supplies or repeaters to extend reach, adding complexity to the setup. Enable-IT injectors, on the other hand, allow for straightforward installations by providing power over long distances without additional equipment. This not only reduces installation time but also minimizes potential points of failure, resulting in a more reliable and maintainable network infrastructure.
7. Superior Engineering
Enable-IT’s deep understanding of both networking and electrical engineering allows them to design PoE Injectors that excel in performance and reliability. Their injectors are built to overcome the inherent limitations of the IEEE 802.3af/at/bt standards, ensuring robust power delivery even in challenging environments. This superior engineering translates into a product that network professionals can trust to deliver consistent results in diverse applications.
8. Environmental Resilience
Enable-IT PoE Injectors are designed to perform reliably in various environmental conditions. Whether deployed in extreme temperatures, high humidity, or harsh industrial settings, these injectors are built to withstand the elements. This resilience makes them suitable for outdoor installations, such as surveillance cameras in remote or exposed locations, ensuring that power and data are consistently delivered regardless of environmental challenges.
9. Future-Proofing
As the demand for smart infrastructure and IoT devices continues to grow, the ability to deliver power and data over long distances will become increasingly important. Enable-IT PoE Injectors are designed with future needs in mind, providing a scalable and adaptable solution that can meet the evolving requirements of modern networks. By investing in Enable-IT technology, organizations can future-proof their network infrastructure, ensuring it can support new devices and applications as they emerge.
Case Studies and Real-Life Experiences
Case Study 1: Remote Surveillance System
The Challenge
A city government needed to enhance its security infrastructure by deploying a network of surveillance cameras across a vast urban area. This included parks, remote streets, and other public spaces where power sources were either scarce or non-existent. The primary challenge was to extend power to these cameras without incurring the high costs and logistical issues associated with installing new power lines or using multiple intermediate power sources.
The Solution
The city government opted to use Enable-IT PoE Injectors due to their capability to deliver power over extended distances. By deploying these injectors, they were able to extend power to cameras located over 5,000 feet from the nearest power source. The injectors’ ability to deliver consistent power over such long distances ensured that all cameras operated reliably, providing high-quality video feeds for surveillance purposes.
The Outcome
The deployment significantly enhanced city security, with cameras covering critical areas without interruption. The city saved on installation costs and time, as they didn’t need to install additional power infrastructure. This case demonstrated the reliability and efficiency of Enable-IT PoE Injectors in maintaining power and data integrity over long distances.
Case Study 2: Agricultural Monitoring
The Challenge
A large agricultural enterprise required continuous monitoring of soil moisture, weather conditions, and crop health across its expansive fields. Traditional PoE solutions were impractical due to the distance limitations, which would have required numerous repeaters and additional power sources, increasing complexity and costs.
The Solution
By utilizing Enable-IT PoE Injectors, the enterprise was able to deploy sensors and cameras up to 8,000 feet away from the central monitoring station. These injectors enabled the power to be extended over the existing copper wiring, eliminating the need for new electrical installations.
The Outcome
The agricultural enterprise achieved real-time data collection across its fields, significantly improving crop management and yield predictions. The reliability of the Enable-IT PoE Injectors ensured continuous operation of all monitoring devices, even in remote locations. This deployment highlighted the injectors’ capability to support extensive agricultural applications efficiently.
Case Study 3: Educational Campus Network
The Challenge
A large university needed to expand its campus network to cover new buildings and outdoor areas, providing reliable Wi-Fi access for students and staff. The challenge was to power wireless access points (APs) in distant locations without extensive electrical work.
The Solution
The university implemented Enable-IT PoE Injectors to extend power to APs situated across the campus, including remote areas such as sports fields and parking lots. The injectors’ ability to deliver power over long distances allowed the university to use existing Ethernet cabling without the need for additional power installations.
The Outcome
The university successfully expanded its network coverage, ensuring seamless Wi-Fi access throughout the campus. This deployment not only improved connectivity for students and staff but also demonstrated the scalability and cost-effectiveness of Enable-IT PoE Injectors for large educational institutions.
Case Study 4: Industrial Facility Monitoring
The Challenge
An industrial facility required a robust monitoring system to oversee operations, ensure safety, and maintain efficiency. The monitoring equipment, including cameras and sensors, needed to be installed in various locations throughout the facility, some of which were far from power sources.
The Solution
Enable-IT PoE Injectors were deployed to power the monitoring equipment over long distances, leveraging the facility’s existing copper wiring infrastructure. This approach minimized the need for new electrical installations and ensured reliable power delivery to all devices.
The Outcome
The facility achieved comprehensive monitoring coverage, enhancing operational oversight and safety. The reliability of the Enable-IT PoE Injectors ensured continuous operation of all monitoring devices, even in harsh industrial environments. This case underscored the injectors’ suitability for demanding industrial applications.
Case Study 5: Remote Office Connectivity
The Challenge
A company needed to extend its network to a remote office located several kilometers away from the main building. Running new power lines to the remote office was impractical due to the distance and associated costs.
The Solution
The company utilized Enable-IT PoE Injectors to extend power and data to the remote office over existing copper wiring. This solution enabled them to deploy network devices such as computers, phones, and printers without the need for new electrical infrastructure.
The Outcome
The remote office was seamlessly integrated into the company’s network, providing employees with reliable access to all necessary resources. This deployment highlighted the versatility and efficiency of Enable-IT PoE Injectors in extending network connectivity to remote locations.
Case Study 6: Smart City Infrastructure
The Challenge
A smart city project aimed to implement various IoT devices, such as environmental sensors, smart lighting, and traffic monitoring systems, throughout the city. The challenge was to power these devices in diverse and often distant locations without extensive new power installations.
The Solution
Enable-IT PoE Injectors were chosen for their ability to deliver power over long distances using the city’s existing copper wiring. This approach allowed for the widespread deployment of IoT devices without the need for additional electrical infrastructure.
The Outcome
The smart city project successfully deployed a comprehensive network of IoT devices, enhancing urban management and improving the quality of life for residents. The reliable performance of the Enable-IT PoE Injectors ensured that all devices operated continuously, demonstrating their effectiveness in supporting smart city initiatives.
Issues and Problems Solved by Enable-IT PoE Injectors
Enable-IT PoE Injectors solve a variety of issues associated with traditional PoE deployments:
- Overcoming Distance Limitations
Traditional PoE standards restrict power and data transmission to about 328 feet (100 meters), posing a significant challenge for large-scale deployments where devices need to be placed at greater distances from power sources. Enable-IT PoE Injectors solve this problem by extending the reach up to 9,000 feet (approximately 2.7 kilometers), making it possible to deploy network devices in remote or hard-to-access areas without the need for additional infrastructure. This capability is particularly valuable in applications like campus-wide networks, industrial sites, and remote surveillance systems.
- Ensuring Consistent Power Delivery
One of the common issues with conventional PoE solutions is the inconsistent power delivery over long distances, which can lead to device malfunctions or failures. Enable-IT PoE Injectors are designed to handle the inherent resistance and timing issues that can disrupt power delivery in standard PoE systems. By using all four pairs of the Ethernet cable for power transmission, these injectors ensure a stable and reliable power supply, even at extended distances, thereby reducing the risk of network disruptions and device failures.
- Reducing Installation Costs and Complexity
The deployment of additional power sources or repeaters to overcome distance limitations can significantly increase both the cost and complexity of network installations. Enable-IT PoE Injectors simplify the installation process by eliminating the need for intermediate power supplies or repeaters. This not only reduces the overall cost but also streamlines the network architecture, making it easier to install and maintain. For organizations looking to expand their network infrastructure without incurring high costs, Enable-IT PoE Injectors offer a cost-effective and straightforward solution.
- Enhancing Network Flexibility
Network deployments often require flexibility to accommodate devices in various locations, including those that are remote or environmentally challenging. Enable-IT PoE Injectors provide the flexibility to power devices in diverse environments, from urban areas to rural settings, and from outdoor installations to industrial facilities. This adaptability ensures that organizations can deploy network devices wherever they are needed without being constrained by power availability.
- Improving Network Reliability
Power fluctuations and signal degradation are common issues that can affect the reliability of network devices, particularly in long-distance deployments. Enable-IT PoE Injectors address these issues by providing consistent power and data transmission, regardless of distance. This reliability is crucial for applications where uninterrupted operation is essential, such as surveillance systems, industrial monitoring, and critical communication networks.
- Supporting High-Power Devices
As network devices become more advanced, the demand for higher power levels increases. Traditional PoE injectors often struggle to meet the power requirements of high-performance devices like PTZ cameras, high-throughput wireless access points, and sophisticated IoT sensors. Enable-IT PoE Injectors deliver higher power levels by utilizing passive PoE on all four pairs of the Ethernet cable, ensuring that even the most power-hungry devices receive the necessary power for optimal performance.
- Facilitating Remote Monitoring and Management
In scenarios where devices are located in remote or difficult-to-access areas, remote monitoring and management become critical. Enable-IT PoE Injectors enable the deployment of devices in such locations by providing reliable power and data connections over long distances. This capability is particularly beneficial for applications like environmental monitoring, agricultural management, and smart city infrastructure, where remote devices need to be continuously monitored and managed without frequent on-site maintenance.
- Enhancing Security and Surveillance
For security and surveillance applications, the ability to place cameras and sensors at optimal locations without being limited by power availability is crucial. Enable-IT PoE Injectors allow security systems to cover wider areas, including remote or isolated locations, by providing power and data over extended distances. This enhanced coverage improves the effectiveness of security and surveillance systems, ensuring comprehensive monitoring and quick response to incidents.
- Future-Proofing Network Infrastructure
As technology evolves, the need for scalable and future-proof network solutions becomes increasingly important. Enable-IT PoE Injectors are designed to support future network expansions and the integration of new devices and applications. By providing a robust and scalable power solution, these injectors help organizations prepare for future growth and technological advancements, ensuring that their network infrastructure remains relevant and capable of meeting new demands.
Future Trends in PoE Technology
1. Increasing Power Requirements
As the Internet of Things (IoT) continues to expand, the power requirements of connected devices are also increasing. Future PoE technology will need to support higher power levels to accommodate devices such as advanced PTZ cameras, high-performance wireless access points, and other power-hungry IoT devices. Standards like IEEE 802.3bt, which allows for up to 90 watts of power, are becoming more prevalent. Enable-IT is well-positioned to meet these demands with its superior engineering and use of all four pairs of Ethernet cables for power delivery, ensuring robust support for the next generation of high-power devices.
2. Expansion of PoE Beyond Traditional Applications
PoE technology is increasingly being adopted in a variety of non-traditional applications. Beyond just powering network devices like cameras and wireless access points, PoE is now being used for smart lighting systems, access control systems, and even building automation. As buildings become smarter and more integrated, PoE will play a crucial role in delivering power and data to a wide array of devices, simplifying installation, and reducing overall energy consumption. Enable-IT’s PoE Injectors are designed to support these diverse applications, providing reliable power and data transmission across various use cases.
3. Enhanced Energy Efficiency
Energy efficiency is becoming a critical factor in the design and deployment of network infrastructure. Future PoE technologies will focus on optimizing power usage, reducing energy waste, and improving overall system efficiency. This trend will be driven by advancements in power management algorithms and more efficient hardware designs. Enable-IT is already ahead of the curve with its advanced engineering that ensures efficient power delivery over long distances, minimizing power loss and maximizing the use of available resources.
4. Integration with Renewable Energy Sources
As the world moves towards more sustainable energy solutions, there is a growing interest in integrating PoE systems with renewable energy sources like solar and wind. This integration can provide a more sustainable power solution for remote or off-grid installations. Future PoE technologies will likely include features that facilitate seamless integration with renewable energy systems, providing reliable power while reducing carbon footprints. Enable-IT’s PoE Injectors, with their capability to deliver power over long distances, are ideally suited for such sustainable energy applications.
5. Adoption of Intelligent PoE Systems
Intelligent PoE systems that offer advanced features such as remote power management, power scheduling, and real-time monitoring are becoming more popular. These systems provide greater control over the power distribution network, allowing for optimized power usage, enhanced security, and easier troubleshooting. Enable-IT is poised to take advantage of this trend by incorporating smart features into their PoE Injectors, enabling users to monitor and manage their power distribution network efficiently and effectively.
6. Growing Importance of PoE in 5G and Edge Computing
The rollout of 5G networks and the growth of edge computing are driving the need for robust and flexible power solutions. PoE technology will play a significant role in powering the vast array of small cells, edge servers, and IoT devices required to support these next-generation networks. Enable-IT’s PoE Injectors, with their ability to deliver power over long distances and support high-power devices, will be crucial in ensuring the reliable operation of 5G and edge computing infrastructure.
7. Enhanced Security Features
As PoE technology becomes more integral to network infrastructure, ensuring the security of PoE networks is becoming increasingly important. Future PoE systems will likely include enhanced security features such as encryption, authentication, and intrusion detection to protect against cyber threats. Enable-IT is committed to incorporating robust security measures into its PoE Injectors, ensuring that power and data are delivered securely and reliably.
8. Development of Universal PoE Standards
The continued development of universal PoE standards will help streamline the deployment of PoE systems and ensure compatibility across different devices and manufacturers. These standards will facilitate easier integration of PoE technology into various applications, promoting wider adoption and simplifying network design. Enable-IT’s commitment to adhering to and advancing industry standards ensures that their PoE Injectors remain compatible with a wide range of devices and applications, providing users with a reliable and future-proof solution.
9. Increased Focus on Environmental and Safety Standards
With growing awareness of environmental and safety concerns, future PoE technologies will need to comply with stricter environmental and safety regulations. This includes ensuring safe power delivery, reducing electromagnetic interference, and minimizing environmental impact. Enable-IT’s PoE Injectors are designed with these considerations in mind, offering safe and environmentally friendly power solutions that meet or exceed regulatory requirements.
Final Thoughts and Conclusion
Enable-IT’s PoE Injectors and Extenders represent a significant advancement in PoE technology, addressing the critical issue of distance limitations and enabling reliable power delivery over extended ranges. By leveraging passive PoE on all four pairs of Ethernet cables and understanding both networking and electrical engineering principles, Enable-IT provides solutions that are both innovative and practical.
For organizations looking to deploy network devices in remote or challenging environments, Enable-IT PoE Injectors offer a reliable, cost-effective, and flexible solution. As the demand for smart infrastructure continues to grow, these advanced PoE technologies will be essential in powering the future of connected devices and systems.
By choosing Enable-IT, you are investing in the future of network deployment, ensuring that power and data can be delivered seamlessly, no matter the distance.
In conclusion, Enable-IT PoE Injectors are a game-changer in the realm of PoE technology. By addressing the limitations of traditional PoE solutions and providing innovative features that support long-distance power transmission, Enable-IT has set a new standard for PoE performance and reliability. Whether for urban surveillance, industrial monitoring, smart city infrastructure, or agricultural management, Enable-IT PoE Injectors offer a robust and scalable solution that meets the diverse needs of modern network deployments. With a commitment to quality, innovation, and customer satisfaction, Enable-IT continues to lead the way in advancing PoE technology and shaping the future of network infrastructure.
Extend any Ethernet Cable Beyond the Limits with Enable-IT Solutions !
The benefit of buying an Ethernet Extender from Enable-IT because our equipment leverages high throughput telecom signals over any wire – including coax, barbed wire fence, etc. Enabling distances unheard of in the industry. There are Ethernet Extender Solutions available that can extend this distance limit out to 9,000 feet or 2,743 m.
The industry uses are endless – as everyone has a need for extended Ethernet many times in their lifetime and sooner than later the need will arise and we are ready when you are to help select a solution.
Diverse Industry customers include the US, UK and Canadian Military; NASA; Aerospace manufacturers; Nautical Infrastructure (Marinas, Mega Yachts, Cruise Ships,Port facilities, US Nuke sub fleet, etc); Video Surveillance and Security Specialists; Advanced Telecommunications companies; Extreme Mining Operators; Global Construction Enterprises; Commercial Agriculture companies; major Healthcare providers; Live Entertainment, Broadcasting, and News agencies; Extreme Retail/POS organizations; Long-Distance Education Companies; International Hospitality Companies; Elevator manufacturers, Digital Signage and much more.
