The Importance of Data Networking in Wind Farms

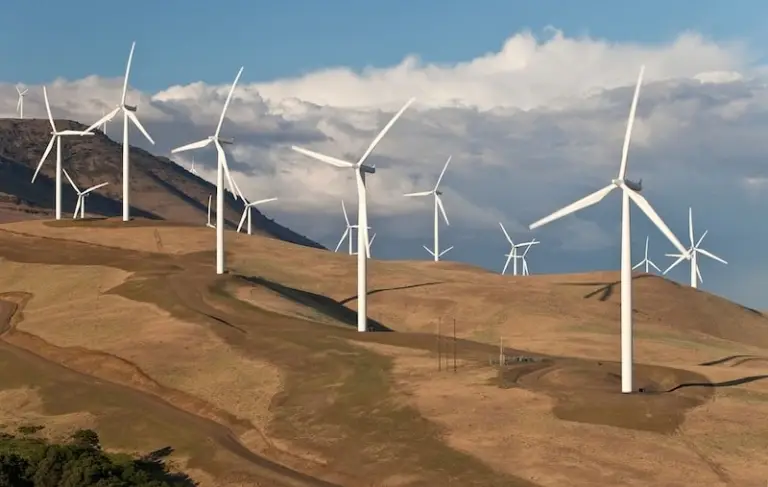

Wind farms have become a pivotal source of renewable green energy, harnessing the power of wind to generate clean electricity on a large scale in areas on the planet where wind is a more constant force for now.

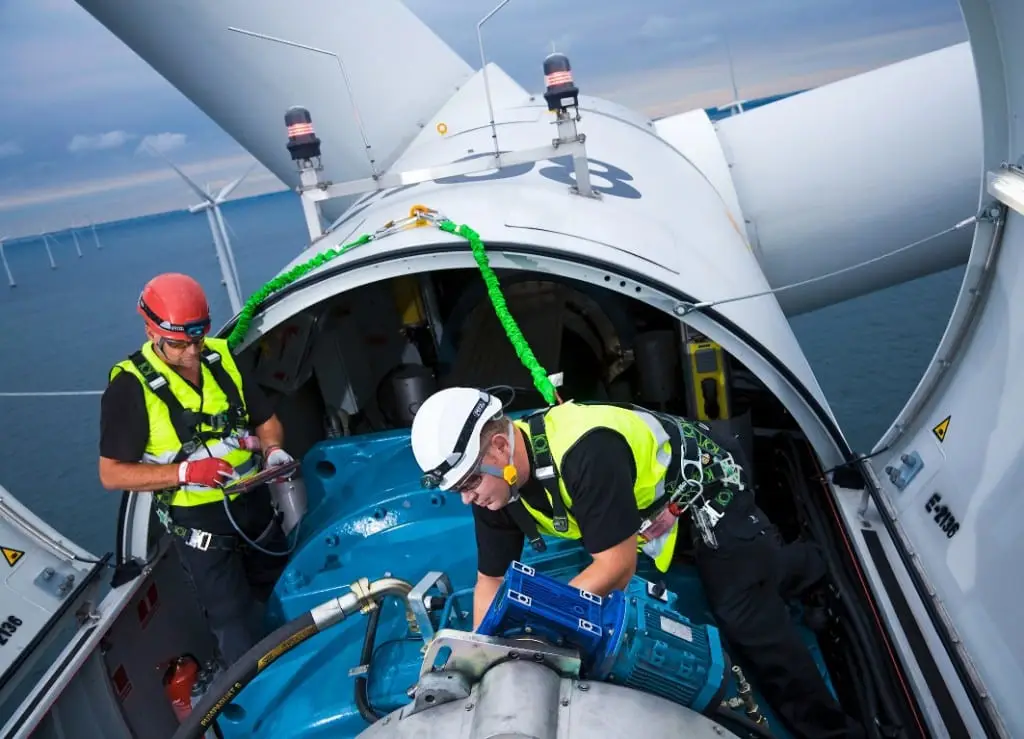

These HAWT (Horizontal Axis Wind Turbine) are the most expensive to install and operate, so ensuring the proper maintenance and monitoring/control is critical to ensure these farms operate efficiently and safely. Typically individual wind turbines are all blind machines as the master control center is responsible for managing and controlling individual wind turbines that are turned on or off according to demand for electricity.
The controls for Wind Farm turbines has relied on low bandwidth SCADA (supervisory control and data acquisition) protocols up to now and the biggest challenge is the distance barrier of traditional networks. The costs associated with network downtime in these environments can be staggering, often ranging from $20,000 to $50,000 per hour.
This article explores the importance of reliable data networking in wind farms, the challenges they face, and the solutions available, including the use of Ethernet extenders.
Enable-IT Ethernet Extenders have easily solved this challenge for the Wind Energy industry and has been implemented in many farms worldwide.
A newer data sharing infrastructure protocol has been established – (IEC) 61400-25 standard that will still leverage the Ethernet Data networks, but now will allow for the sharing between individual wind turbines creating smart-wind power farms (Smart-WPFs).
Smart-WPF wind turbines will communicate directly and share sensing data in order to maximize power generation, WPF availability, and turbine efficiency. Some installations are leveraging insecure and unstable Wireless technology for this communications – until they are hacked or severely disrupted by the increasing energy blasts from our star in the form of CME’s, Proton storms, Solar flares, ground generated lightning and collapsing protection of our Van Allen magnetic shield.
The expectations of having a Carrington Sized event in the next Solar Cycle maximum (6 to 9 years away) that will wipe out most all earth based electronics and set us back into a Stone Age only gives us so much time to enjoy these benefits – but at least it could be a termination for AI and autonomous robotics if it gets out of control and thinks it is is unstoppable.
Data networking in wind farms plays a crucial role in ensuring the efficient operation of the entire facility. It enables real-time monitoring and control of various systems, including individual turbines, weather stations, and power distribution infrastructure. This data is essential for optimizing energy production by adjusting turbine settings based on wind conditions, monitoring equipment performance to prevent failures, and predicting maintenance needs to minimize downtime.
Furthermore, data networking in wind farms is vital for safety and compliance. It allows operators to monitor environmental conditions, such as wind speed and direction, to ensure that turbines operate within safe limits. Networking also facilitates communication with grid operators to ensure that the electricity generated by the wind farm is delivered efficiently and in accordance with regulatory requirements.
In addition to operational and safety benefits, data networking in wind farms also provides valuable data for analysis and optimization. By collecting and analyzing data from various sensors and systems, operators can gain insights into the performance of individual turbines, identify areas for improvement, and optimize overall energy production. This data-driven approach is essential for maximizing the return on investment in wind energy and ensuring the long-term sustainability of wind farms.
Challenges in Wind Farm Data Networking
- Remote Locations: Wind farms are often situated in remote, rural areas, far from urban centers, making it challenging to establish reliable network connections.
- Harsh Weather Conditions: The harsh weather conditions in wind farm locations, including high winds, extreme temperatures, and exposure to the elements, can pose significant challenges for networking equipment.
- Vast Geographic Spread: Wind farms can cover hundreds or even thousands of acres, making it difficult and costly to deploy traditional wired networking solutions, such as fiber optic cables, which may require extensive trenching and infrastructure development.
- Dynamic Operations: The dynamic nature of wind farm operations, with turbines constantly adjusting to changing wind conditions, can place high demands on network infrastructure, requiring the network to handle large volumes of data in real-time with minimal latency.
Solutions
- Use of Ruggedized Equipment: Deploy ruggedized networking equipment designed to withstand harsh environmental conditions, ensuring reliable operation in remote and harsh locations.
- Wireless Networking Solutions: Utilize wireless networking solutions, such as point-to-point microwave links or cellular networks, to establish reliable connections in remote areas without the need for extensive cabling infrastructure.

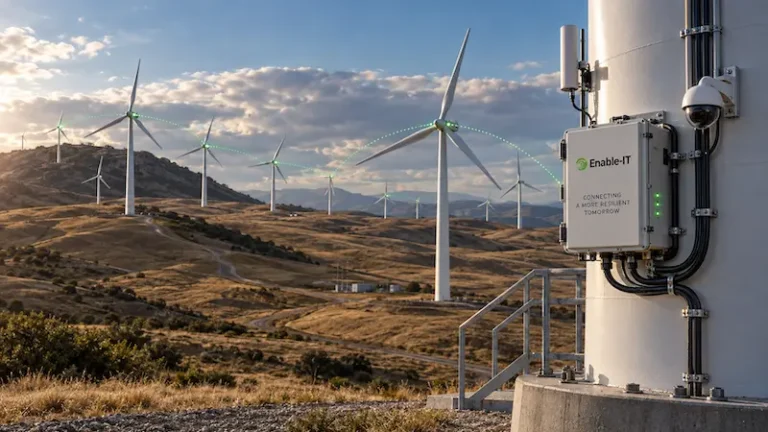

- Ethernet Extenders: Deploy Ethernet extenders to transmit network signals over long distances, enabling the connection of remote turbines and monitoring stations to the central network hub without the need for costly fiber optic cables.
- Redundant Network Configurations: Implement redundant network configurations to minimize downtime and ensure continuous operation, even in the event of equipment failure or network disruptions.
- Remote Monitoring and Maintenance: Use remote monitoring and maintenance capabilities to quickly identify and address network issues, minimizing downtime and ensuring optimal performance of the network infrastructure.
The Role of Ethernet Extenders
Ethernet extenders play a critical role in overcoming the challenges of networking in wind farms. These devices are designed to extend Ethernet connections over long distances, enabling the connection of remote turbines, weather stations, and monitoring stations to the central network hub. By using Ethernet extenders, wind farm operators can eliminate the need for costly fiber optic cables, which can be challenging to install and maintain over long distances.
One of the key advantages of Ethernet extenders is their ability to transmit data over long distances, up to several kilometers, without significant signal degradation. This makes them ideal for connecting remote devices in wind farms, which may be located far from the central network hub. Additionally, Ethernet extenders are often ruggedized and designed to withstand harsh environmental conditions, making them well-suited for use in the remote and challenging environments typically found in wind farms.
Ethernet extenders are also easy to install and configure, requiring minimal setup and maintenance. This makes them a cost-effective solution for extending network connectivity in wind farms, allowing operators to quickly and efficiently connect remote devices to the central network hub. Overall, Ethernet extenders are a valuable tool for ensuring reliable network connectivity in wind farms, helping operators optimize energy production, ensure equipment safety, and minimize downtime.
The Cost of Downtime
The costs associated with network downtime in wind farms can be substantial, often ranging from $20,000 to $50,000 per hour. When the data network goes down, wind turbines may be unable to communicate with the central control system, leading to a loss of visibility and control over individual turbines. This can result in decreased energy production as turbines may not operate at optimal settings. Additionally, the inability to monitor equipment performance in real-time can increase the risk of equipment failures, leading to costly repairs and maintenance.
Furthermore, network downtime can disrupt maintenance schedules, as technicians may be unable to access critical data needed to perform maintenance tasks efficiently. This can lead to longer downtimes for maintenance activities, further reducing energy production and increasing costs.
Beyond the direct financial costs, network downtime can also have indirect costs, such as damage to the wind farm’s reputation and potential legal ramifications. Wind farm operators may face penalties for failing to meet contractual obligations, such as providing a certain amount of energy to the grid.
Overall, the costs of network downtime in wind farms can be substantial, highlighting the importance of investing in reliable and robust networking solutions to minimize downtime and ensure the efficient operation of wind farm facilities.
Ensuring Reliable Connectivity
Ensuring reliable connectivity in wind farms is crucial for maintaining efficient operations and minimizing downtime. Several key strategies can help achieve this goal:
- Redundant Network Configurations: Implementing redundant network configurations can help minimize downtime by providing backup routes for data transmission. Redundant switches, routers, and network paths can ensure that if one component fails, data can still flow through alternative paths.
- Ruggedized and Weatherproof Equipment: Using networking equipment that is ruggedized and weatherproof is essential for withstanding the harsh environmental conditions typically found in wind farms. This equipment should be able to withstand high winds, extreme temperatures, and exposure to moisture and dust.
- Remote Monitoring and Maintenance: Implementing remote monitoring and maintenance capabilities allows operators to quickly identify and address network issues without the need for on-site visits. This can help minimize downtime and reduce the need for costly on-site maintenance.
- Backup Power Supply: Having a backup power supply, such as a UPS (uninterruptible power supply), can ensure that networking equipment remains operational during power outages. This can help prevent downtime and ensure continuous operation of critical systems.
- Proactive Maintenance: Regularly scheduled maintenance can help prevent issues before they occur. This includes checking for loose connections, updating firmware, and replacing aging equipment to ensure optimal performance and reliability.
By implementing these strategies, wind farm operators can ensure reliable connectivity, minimize downtime, and optimize the performance of their network infrastructure, ultimately leading to improved efficiency and cost savings.
Final Thoughts and Conclusion
In conclusion, reliable data networking is essential for the efficient and safe operation of wind farms. The high costs associated with network downtime highlight the importance of investing in robust and reliable networking solutions, including Ethernet extenders. By choosing the right networking equipment and implementing best practices for network management, wind farm operators can minimize downtime, optimize energy production, and maximize the return on their investment.
It’s also worth noting that as wind farms continue to expand and evolve, the demand for reliable data networking solutions will only increase. Advances in technology, such as the development of more efficient turbines and the integration of smart grid technologies, will require even more sophisticated networking infrastructure to support these systems.
As such, wind farm operators should stay informed about the latest developments in networking technology and work closely with industry partners to ensure they have the most reliable and cost-effective solutions in place. By doing so, they can continue to reap the benefits of wind energy while ensuring the long-term sustainability and profitability of their operations.
