In today’s connected world, Power over Ethernet (PoE) technology plays a pivotal role in simplifying the deployment of network devices, such as IP cameras, wireless access points, and VoIP phones. By delivering both power and data over a single Ethernet cable, PoE eliminates the need for additional power cables, streamlining installations and reducing costs. But not all PoE systems are created equal — two main categories exist: Active PoE and Passive PoE. Understanding the differences between them is crucial to choosing the right solution for your specific needs.
What is Power over Ethernet (PoE)?
PoE works by using standard twisted pair Ethernet cables, which typically consist of four pairs of wires (eight individual wires). Two of these pairs are used for data transmission, while the remaining two can be used for power delivery. Depending on the PoE standard, power can either be delivered through the same pairs as the data or through the spare pairs.
- Data Transmission: Ethernet cables carry data at rates of 100 Mbps, 1 Gbps, or higher, depending on the type of cable and the network infrastructure.
- Power Delivery: Through PoE, power is transmitted along the cable in a manner that doesn’t interfere with data transmission. The amount of power delivered can range from a few watts to up to 100 watts, depending on the PoE standard being used.
Key Components of PoE
To make PoE work, several components are involved:
- Power Sourcing Equipment (PSE): This is the device that supplies power over the Ethernet cable. Common types of PSEs include PoE-enabled network switches, injectors, or midspan devices. These devices are responsible for providing the correct voltage and current to power connected devices.
- Powered Device (PD): These are the end devices that receive power via the Ethernet cable, such as IP cameras, wireless access points, VoIP phones, and other network-connected equipment. PDs are equipped with a PoE-compatible Ethernet port that allows them to accept power without needing a separate power adapter.
PoE Standards
Over time, PoE has evolved with different standards that define how much power can be delivered over Ethernet cables. The most common PoE standards include:
- IEEE 802.3af (PoE): Introduced in 2003, this standard delivers up to 15.4W of power, making it suitable for devices with low power consumption, such as IP phones and basic wireless access points.
- IEEE 802.3at (PoE+): Established in 2009, this standard increases the power delivery to 25.5W, allowing it to support devices with higher power requirements, such as more advanced wireless access points or security cameras with pan-tilt-zoom (PTZ) functionality.
- IEEE 802.3bt (PoE++): Introduced in 2018, this standard further increases the power available to devices, with two variants: Type 3 (up to 60W) and Type 4 (up to 100W). These higher power levels make PoE++ suitable for devices like LED lighting systems, high-performance PTZ cameras, and even small computers or displays.
How Power is Delivered Over Ethernet
Ethernet cables consist of eight wires (four twisted pairs). In PoE, power can be transmitted through two of these pairs in either of the following ways:
- Mode A (Endspan): In this mode, power is transmitted over the same wires that are used for data transmission (pins 1, 2, 3, and 6). This is commonly used by PoE switches where the power comes from the switch itself.
- Mode B (Midspan): Here, power is delivered over the spare pairs that are not used for data transmission (pins 4, 5, 7, and 8). This is often used in midspan injectors that add PoE functionality to non-PoE network switches.
PoE Power Classes
To better manage power distribution, PoE standards define different “power classes” that categorize the power needs of connected devices. These classes help ensure that devices receive the appropriate amount of power while avoiding overloading the PSE. For example:
- Class 0: Default class, up to 15.4W (PoE)
- Class 1: Very low power devices, up to 4W
- Class 2: Low power devices, up to 7W
- Class 3: Medium power devices, up to 15.4W (PoE)
- Class 4: Higher power devices, up to 25.5W (PoE+)
- Class 5 & 6: Up to 60W and 100W, respectively (PoE++)
What is Active PoE?
Active Power over Ethernet (PoE) refers to a standardized method of delivering electrical power over Ethernet cables to network devices, in accordance with the IEEE 802.3af/at/bt standards. These standards define how power is distributed safely and effectively across Ethernet cables, ensuring compatibility between Power Sourcing Equipment (PSE) and Powered Devices (PD). Active PoE is commonly used in professional and commercial environments where reliability, safety, and power regulation are critical.
How Active PoE Works
Active PoE operates by using a process known as power negotiation, which ensures that power is only delivered if the connected device supports PoE. This process involves a “handshake” between the PSE (like a PoE switch or injector) and the PD (such as an IP camera or access point). Here’s how it works:
- Initial Detection: When a PoE-enabled PSE is connected to a device via Ethernet, it sends out a small test current (typically 2-10 volts) to detect whether the connected device supports PoE. This detection phase prevents the PSE from supplying full power to a non-PoE device, which could cause damage.
- Classification: If the connected device is PoE-compatible, the PSE identifies its power requirements. PoE devices are classified into different power classes (ranging from Class 0 to Class 6) depending on their power consumption needs. Based on this classification, the PSE determines how much power to send to the device.
- Power Delivery: Once the correct power class is established, the PSE begins supplying power at the required voltage and wattage. The power delivered through Active PoE typically ranges between 44-57 volts. If the device requires less power than the maximum available, the PSE will adjust the power output accordingly.
- Monitoring and Protection: Active PoE systems continuously monitor the power delivery to ensure that it remains stable and within the device’s operational requirements. Should any irregularities or faults be detected (such as short circuits or power overloads), the PSE will automatically shut down the power supply to protect the device and network infrastructure.
Types of Active PoE
There are three main standards within Active PoE, each defining a specific power range and use case:
1. IEEE 802.3af (PoE):
- Released in 2003, this standard provides up to 15.4 watts of power to the connected devices.
- It uses Cat5 or higher Ethernet cables to deliver power over distances of up to 100 meters (328 feet).
- Common applications include IP phones, basic wireless access points, and simple IP cameras with limited functionality.
2. IEEE 802.3at (PoE+):
- Introduced in 2009, PoE+ delivers up to 25.5 watts of power to devices, which is necessary for more demanding equipment.
- It also uses Cat5 or higher cables and supports distances of up to 100 meters.
- PoE+ is commonly used for devices like advanced IP cameras with pan-tilt-zoom (PTZ) features, high-performance wireless access points, and video phones.
3. IEEE 802.3bt (PoE++):
- The most recent standard, established in 2018, PoE++ extends the power capabilities to up to 60 watts (Type 3) or 100 watts (Type 4), depending on the device.
- PoE++ is particularly useful for high-power devices such as LED lighting systems, digital signage, laptops, high-power access points, and even some industrial equipment.
- This standard uses all four twisted pairs of wires in an Ethernet cable to deliver power efficiently over long distances.
Applications of Active PoE
Active PoE is used across various industries and scenarios where reliable power delivery and data transmission are required. Some common use cases include:
- Enterprise Networks: Businesses use Active PoE to deploy IP phones, wireless access points, and other network devices throughout the office without needing additional electrical infrastructure.
- Surveillance Systems: In security systems, Active PoE powers IP cameras, including high-performance PTZ models, ensuring reliable operation and remote control capabilities.
- Healthcare: Hospitals utilize PoE for medical devices, networked monitors, and communication systems, where consistent power delivery and safety are critical.
- Smart Buildings: PoE powers LED lighting systems, climate control sensors, and other IoT devices in smart buildings, allowing for centralized energy management and efficiency improvements.
- Public Spaces: In environments like airports, hotels, and schools, PoE is used to power digital signage, interactive kiosks, and Wi-Fi access points, reducing the need for local power sources.
What is Passive PoE?
Passive Power over Ethernet (PoE) is a method of delivering power over Ethernet cables without adhering to the standardized power negotiation protocols defined by the IEEE 802.3af/at/bt standards. Unlike Active PoE, Passive PoE does not automatically detect and adjust the voltage or power requirements of the connected device. Instead, it delivers a fixed voltage (typically 24V or 48V) regardless of the device’s power needs.
While Passive PoE can be a more cost-effective and simple option for powering devices, it comes with limitations and risks, particularly in terms of safety and device compatibility.
How Passive PoE Works
Passive PoE operates by delivering a constant, pre-defined voltage through an Ethernet cable to power devices. This means that there is no power negotiation or detection phase between the Power Sourcing Equipment (PSE) and the Powered Device (PD), as occurs with Active PoE. As a result, Passive PoE relies on the assumption that the connected device is designed to accept the specific voltage being supplied.
- No Power Detection: In Passive PoE systems, the PSE delivers power immediately once a device is connected, regardless of whether the device can handle that power. This lack of an initial handshake or power classification means that improper use can lead to device damage or failure if a non-PoE device or one requiring a different voltage is connected.
- Fixed Voltage Delivery: Passive PoE typically delivers power at a fixed voltage, most commonly 24V or 48V. This contrasts with Active PoE, which can deliver variable voltages within a range (44-57V), depending on the device’s needs.
- Simplified Power Transmission: Since Passive PoE lacks the advanced negotiation and protection features found in Active PoE, the components are simpler and often cheaper. Power injectors or PSEs used in Passive PoE systems usually come with fewer internal safety checks or control mechanisms, reducing complexity and cost.
Key Components of Passive PoE
Passive PoE relies on the same fundamental components as Active PoE but lacks the intelligence and communication features for power management. Here are the essential components:
- Power Sourcing Equipment (PSE): In Passive PoE systems, this is often a basic PoE injector or a Passive PoE-enabled switch. These devices supply a constant voltage to the Ethernet cable without checking the requirements of the connected device.
- Powered Device (PD): The devices that receive power, such as IP cameras, wireless access points, or sensors, must be specifically designed to accept the fixed voltage provided by Passive PoE. Incompatible devices could be damaged if they are not designed to handle the supplied voltage.
Common Voltage Levels in Passive PoE
Passive PoE typically operates at one of two voltage levels:
- 24V Passive PoE: Often used in low-power networking devices like wireless access points or basic IP cameras. Many Passive PoE systems operate at 24V, which is suitable for devices that consume less power.
- 48V Passive PoE: This higher voltage is used for more demanding devices that require more power. It is closer to the voltage range provided by standard Active PoE (44-57V), but there is no guarantee of compatibility with standard-compliant devices.
It’s important to note that while 48V Passive PoE may seem similar to the voltage supplied by Active PoE systems, the lack of power negotiation still poses a risk if non-compatible devices are connected.
Limitations and Risks of Passive PoE
While Passive PoE can be a viable option in some situations, it comes with significant limitations and risks, particularly in more complex or professional settings:
- No Device Protection: Since Passive PoE doesn’t include any power negotiation or safety protocols, there is a risk of damaging devices that aren’t designed to handle the supplied voltage. For instance, connecting a non-PoE device to a Passive PoE injector could result in permanent damage.
- Lack of Standardization: Passive PoE doesn’t adhere to the IEEE PoE standards, meaning there is no universal standard for voltage or power delivery. This can create compatibility issues if devices from different manufacturers are used in the same system. In contrast, Active PoE ensures interoperability across different brands and devices, thanks to the standardized nature of IEEE PoE.
- Limited Power Delivery: Most Passive PoE systems supply less power than standard Active PoE solutions. For example, a 24V Passive PoE system may only deliver up to 24W of power, which is insufficient for high-power devices like advanced IP cameras, wireless access points with multiple radios, or industrial equipment.
- Shorter Distance Limitations: Passive PoE can sometimes struggle to deliver power over longer distances. While Active PoE supports distances of up to 100 meters (328 feet) with power and data, Passive PoE may experience voltage drops over long cable runs, particularly in lower-voltage systems like 24V setups. This limits its effectiveness for large-scale installations or where devices are spread across a wide area.
Differences Between Active and Passive PoE
| Aspect | Active PoE | Passive PoE |
|---|---|---|
| Standard | IEEE 802.3af/at/bt | Non-standard |
| Power Negotiation | Yes | No |
| Voltage Range | Automatically adjusts (typically 44-57V) | Fixed voltage (24V, 48V, etc.) |
| Max Power | Up to 100W (with PoE++) | Typically up to 24W |
| Device Protection | Safe, will not damage non-PoE devices | Risk of damage to non-PoE devices |
| Cost | Higher | Lower |
| Use Cases | Professional-grade deployments | Simple setups with fewer safety needs |
Main Advantages and Disadvantages
When selecting between Active and Passive Power over Ethernet (PoE), it’s essential to weigh their advantages and disadvantages in terms of safety, cost, complexity, power delivery, and overall scalability. Let’s break these down in detail:
Active PoE
Advantages:
1. Safety and Device Protection:
- Active PoE follows strict IEEE 802.3 standards, which means devices undergo a power negotiation process. This ensures that power is only delivered if the connected device supports PoE and at the correct voltage and power level.
- The negotiation process protects non-PoE devices from accidental power delivery, minimizing the risk of damage.
- Built-in protection mechanisms such as overload, underload, short-circuit protection, and automatic power shutdown in case of fault conditions make Active PoE systems far safer and more reliable.
2. Standardization and Interoperability:
- Active PoE is standardized by the IEEE, which guarantees that any PoE-compliant device will work seamlessly with a PoE switch or injector, regardless of the manufacturer.
- This standardization ensures that users can mix and match equipment without worrying about compatibility issues, making it ideal for scalable and large installations.
3. Automatic Power Adjustment:
- Active PoE systems automatically adjust the power output based on the power requirements of the connected device. This dynamic adjustment prevents underpowering or overpowering, enhancing device longevity and reducing power consumption.
4. Higher Power Availability:
- With standards like PoE+ (IEEE 802.3at) and PoE++ (IEEE 802.3bt), Active PoE can deliver higher power levels (up to 100 watts in some cases), which is essential for devices like pan-tilt-zoom (PTZ) IP cameras, video conferencing systems, smart lighting, and industrial equipment.
5. Longer Distance:
- Active PoE can deliver both power and data over distances of up to 100 meters (328 feet), maintaining performance and power efficiency over long cable runs.
6. Centralized Power Management:
- Active PoE switches and devices often come with centralized management features that allow network administrators to control and monitor power delivery remotely. This feature includes rebooting devices, scheduling power usage, and tracking energy consumption, which is particularly useful for large-scale networks.
Disadvantages:
1. Higher Cost:
- Active PoE injectors and switches are more expensive than their Passive PoE counterparts due to the complexity of the power negotiation circuits and safety mechanisms. This added cost can be significant, particularly for small-scale or budget-conscious deployments.
2. Slightly More Complex Setup:
- While Active PoE simplifies management and offers enhanced safety features, the initial setup may be slightly more complex due to the need to ensure that all connected devices comply with the IEEE standards.
3. Power Consumption:
- Active PoE systems consume a small amount of additional energy to support power negotiation and monitoring functions, although this is usually minimal.
Passive PoE
Advantages:
1. Cost-Effective:
- One of the most significant advantages of Passive PoE is its low cost. Since it doesn’t adhere to IEEE standards and lacks power negotiation circuitry, Passive PoE injectors and switches are generally cheaper to manufacture and purchase.
- For smaller installations or home networks where power requirements are known, Passive PoE can be a budget-friendly solution.
2. Simplicity:
- Passive PoE systems are simpler to install and configure. Since there’s no power negotiation or management involved, setting up a Passive PoE system is as easy as connecting devices to an Ethernet cable. This makes it an attractive option for smaller or DIY installations where technical expertise may be limited.
3. Useful for Low-Power Devices:
- In scenarios where the power requirements are minimal, such as in small-scale wireless access points or basic IP cameras, Passive PoE can provide sufficient power without the need for more expensive Active PoE infrastructure.
Disadvantages:
1. No Power Negotiation or Protection:
- Unlike Active PoE, Passive PoE does not check whether the connected device is PoE-compatible or whether it can handle the supplied voltage. This lack of power negotiation poses a significant risk of damaging devices if they are not designed to handle the fixed voltage being supplied.
- There is no automatic adjustment for underpowered or overpowered devices, which can lead to operational inefficiency and possible device failure.
2. Limited Standardization:
- Passive PoE is not governed by any official standards like Active PoE. As a result, different manufacturers may supply different voltage levels, leading to compatibility issues between devices. Without strict standardization, interoperability is not guaranteed, and mixing equipment from different vendors can be problematic.
3. Fixed Voltage:
- Since Passive PoE delivers a constant voltage (usually 24V or 48V), it lacks flexibility. Devices that require a different voltage level will either be underpowered, causing them to malfunction, or risk being damaged due to overvoltage.
4. Lower Power Delivery:
- Most Passive PoE systems provide less power than their Active PoE counterparts. This makes Passive PoE unsuitable for devices with higher power demands, such as PTZ cameras, advanced wireless access points, or devices requiring PoE++ (IEEE 802.3bt) power levels of up to 100 watts.
- Additionally, Passive PoE systems may experience power loss over long cable distances, especially with lower voltage systems like 24V Passive PoE, limiting their effectiveness in larger installations.
5. No Centralized Management:
- Unlike Active PoE switches, Passive PoE systems lack centralized power management features. This limits the ability to remotely monitor or control power delivery, making network troubleshooting or device management more challenging in large installations.
6. Shorter Effective Distance:
- Passive PoE systems, especially those running at 24V, can struggle to deliver power over long distances due to voltage drops. This reduces the effective distance of power delivery, making Passive PoE less suitable for widespread or large-scale deployments.
Benefits of Using PoE
Using PoE technology offers numerous advantages for businesses and organizations:
- Simplicity: PoE eliminates the need for separate electrical wiring, reducing both the time and cost of installations.
- Flexibility: Devices can be installed in optimal locations without relying on the availability of electrical outlets.
- Scalability: As network demands grow, PoE makes it easy to expand infrastructure without costly rewiring.
- Remote Management: Many PoE systems allow for centralized control and monitoring of connected devices, making it easier to maintain and troubleshoot.
Real-life Use Cases
- IP Cameras: Security systems often rely on PoE to simplify the installation of IP cameras in hard-to-reach locations.
- Wireless Access Points: Large-scale wireless networks for businesses and schools use PoE to install access points without needing power outlets in every location.
- VoIP Phones: Offices can use PoE to power desk phones, reducing clutter and allowing flexible placement.
- Digital Signage: Retailers and venues deploy PoE to install digital displays in strategic locations without needing additional power outlets.
Recommendations for Choosing the Right PoE Type
- Consider Device Compatibility: If your devices support PoE and require varying power levels, Active PoE is the safest and most flexible option.
- Evaluate Power Requirements: For devices with higher power demands, like certain IP cameras or access points, Active PoE (especially PoE+ or PoE++) is necessary.
- Budget Considerations: If you’re working on a tight budget and your devices explicitly support Passive PoE, it can be a viable option. However, proceed with caution and ensure that only compatible devices are connected.
- Risk Tolerance: For mission-critical applications, Active PoE is the better choice, offering better protection against equipment failure.
Final Thoughts
Active and Passive PoE are both powerful technologies that serve different needs. Active PoE provides a standardized, reliable solution with built-in safety mechanisms, making it ideal for professional and scalable deployments. Passive PoE, while more cost-effective, comes with risks and limitations that must be carefully managed.
In conclusion, while Active PoE is the preferred choice for most commercial and industrial applications due to its flexibility and safety features, Passive PoE can still offer value for low-power, non-critical setups. The key is to assess your specific requirements, device compatibility, and budget before making a decision.

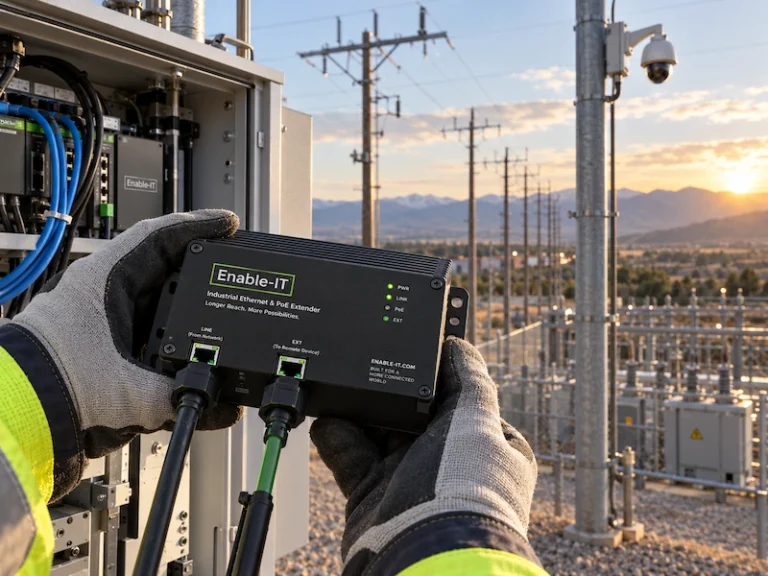

Extend any Ethernet Cable Beyond the Limits with Enable-IT Solutions !
