Why Understanding a PoE Power Budget Matters More Than You Think
Every experienced integrator has met this system: the IP camera that works perfectly all day and drops offline at 9 PM. The gate controller that responds beautifully — until the motor actuates. The wireless bridge that survives all summer and dies with the first cold snap.
The device gets blamed. The cable gets replaced. The switch gets swapped. Hours of troubleshooting burn away, and the failure keeps coming back — because the problem was never the hardware.
**It was the power budget.** And here’s the uncomfortable truth about our industry: the majority of “flaky” PoE deployments aren’t flaky at all. They are systems that were mathematically guaranteed to fail from the day they were designed — nobody ran the numbers.
Power over Ethernet transformed how the world deploys remote devices. One cable delivering **both data and power** eliminates electrical drops, slashes installation costs, and puts surveillance cameras, access control, wireless radios, and industrial automation in places AC power can’t reach. But that convenience carries a discipline most spec sheets never mention. At Enable-IT — the USA OEM that pioneered the PoE Extender industry — we’ve spent over two decades engineering around it. This guide gives you the rules.
What Is a Power Budget — Really? 🔌
Your power budget is the **total wattage available to your connected devices, and how it survives the journey to them.** Every PoE system lives inside three hard limits:
1. How much power the **PoE source** can supply
2. How much power the **extender or midspan** can pass or inject
3. How much power the **remote devices actually demand** — at their worst moment, not their best
When demand exceeds budget, the failure is never a clean error message. Devices fail to boot. They reboot randomly. IR LEDs quietly shut off, PTZ motors stall, radios drop association, and under full load the whole endpoint goes dark.
**A system that “almost works” is almost always a power budget problem.** Commit that sentence to memory and you’ll out-diagnose half the industry.
Why Power Budget Matters in Real-World Applications 🌍
Let’s look at common PoE-powered deployments where power budgeting is essential.
🎥 Surveillance Cameras
### Surveillance Cameras — The 4X Surprise
Modern IP cameras are not the 6-watt devices integrators remember. A single current-generation camera can stack high-resolution 4K+ sensors, infrared LED arrays, heaters and blowers, PTZ motors, and onboard AI analytics processors. The consequence is a power profile that swings wildly:
– **8–12W** in daylight operation
– **25–40W** at night with IR active
– **60–90W** for PTZ units under load, heater running
Design for the daytime number and your camera **fails exactly when you need it most** — at night, in bad weather, during the motion event it exists to capture. A surveillance system that only works in daylight isn’t a security system; it’s a liability with a lens.
🚧 Remote Gates & Access Control — Death by Power Spike
Gate systems stack cameras, card readers, intercoms, control logic, sensors, and relays or motors — deployed hundreds or thousands of feet from the nearest power source. Motors and relays don’t draw power politely; they spike it. An underbudgeted gate responds sluggishly, fails to actuate under load, and drops its camera offline mid-operation — usually while a vehicle is sitting at the entrance and a customer is calling your office.
🏭Industrial & Outdoor Endpoints — Margin or Downtime
Wireless bridges, PLCs, environmental sensors, and edge computing devices are unforgiving about power stability, and industrial reality conspires against them: cold weather raises demand, long cable runs steal voltage, and simultaneous startup after an outage stacks every device’s inrush current into one brutal moment. Designing without margin isn’t optimism — it’s scheduled downtime.
PoE Standards & Power Levels (Quick Overview) 📊
| PoE Standard | Max Power at Source |
|---|---|
| PoE (802.3af) | 15.4W |
| PoE+ (802.3at) | 30W |
| PoE++ / 4PPoE (802.3bt) | 60W / 90W+ |
Notice what the table doesn’t say: those are figures **at the source**. Distance, wire gauge, and resistance all take their cut before power reaches your device. Enable-IT solutions are engineered beyond this ladder entirely — supporting high-power PoE++ delivery at extended distances where standard Ethernet gave up thousands of feet earlier.
Enable-IT solutions go even further, supporting high-power PoE++ and extended-distance delivery far beyond standard Ethernet limits.
Enable-IT PoE Extenders & Power Budget Examples 💡

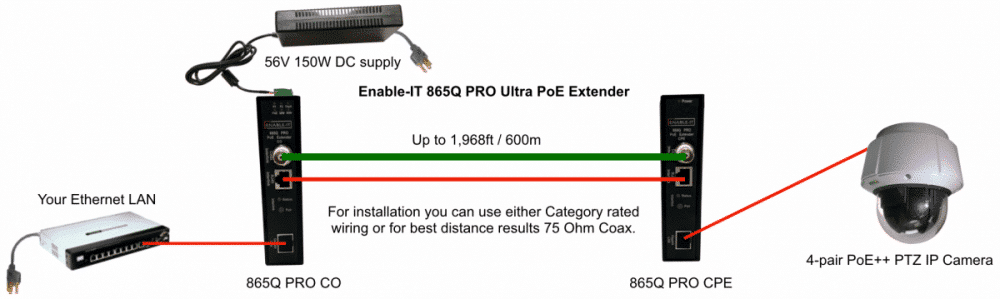

🔹 Enable-IT 865Q PRO – Up to 150W PoE++
The Enable-IT 865Q PRO is designed for serious power requirements.
Key advantage:
👉 Up to 150 watts total PoE output
This means:
- You can power multiple devices
- Or one very high-power device
- Over long distances where traditional Ethernet fails
Example:
You deploy:
- 1 PTZ camera – 70W
- 1 IR camera – 30W
- 1 wireless bridge – 20W
Total load:
70 + 30 + 20 = 120W
✅ This setup works comfortably within the 865Q PRO’s power budget, with margin to spare.
⚠️ If you tried this on a lower-power PoE system, devices would reboot or fail under load.

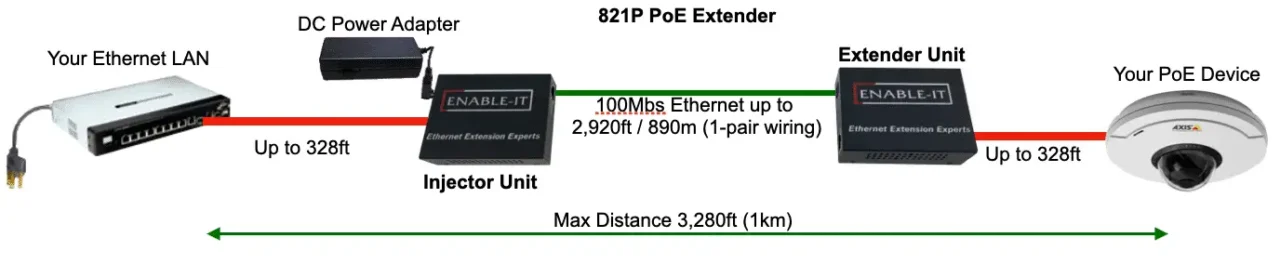

🔹 Enable-IT 821P – Up to 71W PoE++
The Enable-IT 821P is ideal for:
- Single high-power cameras
- Access control systems
- Industrial endpoints
With up to 71W available, it easily supports:
- PTZ cameras
- Multi-sensor cameras
- Camera + intercom combinations
Example:
- PTZ camera: 55W peak
- Heater enabled during winter
✅ The 821P delivers stable power without brownouts or resets.
The Hidden Enemy: Peak Power ⚠️ - Not Average Power
The single most common design mistake in PoE deployment is budgeting for **average draw instead of peak draw.** Devices don’t consume politely: IR arrays snap on at dusk, motors fire intermittently, heaters engage with the cold front, and after a power outage every device on the segment boots *simultaneously* — the worst-case load, all at once, precisely when your system is trying to recover.
**Design rule: budget for maximum rated power, always.** “Typical usage” is a fair-weather number, and networks don’t fail in fair weather.
One of the most common mistakes in PoE design is calculating average power, not peak power.
Devices don’t always draw the same wattage:
- IR LEDs turn on at night
- Motors activate intermittently
- Heaters kick in during cold weather
- Multiple devices boot simultaneously after a power outage
🧠 Best practice:
Always design for maximum rated power, not “typical” usage.
Power Budget Over Distance 📏- Physics Takes Its Cut
Long runs introduce voltage drop, rising resistance, and shrinking usable wattage at the endpoint. Enable-IT PoE Extenders are engineered specifically to maintain voltage integrity, regenerate power and data, and deliver dependable PoE over **thousands of feet** — with Ethernet extension solutions reaching **9,000 ft (2,743 m)** over virtually any wire, including coax and legacy copper.
But even the best extender obeys arithmetic: inject 150W and you cannot power 200W of devices. The extender eliminates the distance penalty — the budget discipline is still yours. That’s why our engineers design it *with* you, free, before you buy a single unit.
Long cable runs introduce:
- Voltage drop
- Increased resistance
- Reduced usable power at the endpoint
Enable-IT PoE Extenders are engineered specifically to:
- Maintain voltage integrity
- Regenerate power and data
- Deliver reliable PoE over thousands of feet
But even with extenders, power budget still matters.
👉 If you inject 150W, you can’t magically power 200W worth of devices.
Best Practices for Designing PoE Power Budgets ✅
✔️ Add 20-30% power headroom
✔️ Account for night mode / heaters / motors
✔️ Know the real power draw of your devices
✔️ Choose PoE extenders with adequate wattage
✔️ Don’t mix high-power and low-power devices blindly
✔️ Plan for future expansion
Why the Source of Your PoE Equipment Is Part of the Power Budget
A power budget is only as trustworthy as the hardware enforcing it — and this is where Enable-IT’s advantage becomes undeniable:
**✔ Designed and Made in the USA** — engineered and built in our AS9100D aerospace-certified facility, not imported and re-badged.
**✔ Professional Grade Equipment — Trusted Reliability** — ruggedized, extreme-temperature enclosures deployed by the US military, NASA, and mission-critical networks worldwide.
**✔ Lifetime Product Warranty — Industry Leading** — we know exactly what’s inside every unit, because we built it.
**✔ 45-Day Money Back Guarantee** — prove the power math in your own deployment, risk-free.
**✔ Certified Spyware Free** — trusted on US Government networks where imported alternatives are banned.
**✔ No Configuration — Plug and Go — Highest Throughput** — your power budget shouldn’t require a firmware degree to deliver.
**✔ Same Day Discounted Rate Shipping — US Factory Floor Direct** — your project timeline doesn’t wait on a container ship.
**✔ Next Business Day Advanced Replacement Service** — because a down endpoint costs more than the AREP plan protecting it.
**✔ US Based Expert Technical Support and Customer Care Team** — live engineers who will run your power calculations with you, before and after the sale.
**✔ Custom USA Made OEM Solutions** — non-standard voltage, unusual form factor, special wattage requirement? Our factory builds to your spec, from 5 units up.
PoE makes deployments cleaner, simpler and more cost-effective – but only when power is planned correctly.
Ignoring power budget can turn a solid installation into a troubleshooting nightmare.
Enable-IT PoE Extenders, such as the 865Q PRO and 821P, are designed specifically for real-world, high-power, long-distance applications, where reliability is non-negotiable.
💡 If your remote device matters, your power budget matters.
Design it right the first time – and your PoE system will just work.
If your remote device matters, your power budget matters. The difference between a system that “just works” for a decade and one that generates weekend service calls is a twenty-minute conversation before you buy — and we offer that conversation free.
Tell us your devices, your distances, and your wiring. Our US-based engineers will calculate your real peak load, spec the right solution with proper headroom, and back it with the strongest guarantees in the industry.
**📞 Call (888) 309-0910** — Mon–Fri, 5AM–4PM PST — and run your power budget with an Enable-IT solutions engineer.
**🛠 [Request Your Free Custom Design Consultation →](https://enableit.com/free-custom-design-consultation/)**
**🛒 Explore the [865Q PRO Ultra PoE Extender](https://enableit.com/product/enable-it-865q-pro-ultra-poe-extender/) and [821P PoE Extender](https://enableit.com/product/821p-poe-extender/)**
*Enable-IT: Extending secure Ethernet and PoE beyond every limit — with the power math done right, the first time.*
