Game Changing Firetruck & Ambulance PoE Enabled Security Surveillance
For over a decade – Enable-IT’s innovative PoE technology has enabled automotive, airborne and marine DC powered solutions for military, police, public safety and disaster recovery entities.
These PoE Enabled solutions have been used for in-vehicle computing connectivity with radio communications, license plate reader cameras, RF jamming sensors, WiFi access points and now custom integration to support Firetruck and Ambulance mobile solutions.
In the realm of public safety and emergency response, the integration of advanced technology plays a pivotal role in enhancing operational efficiency and ensuring the safety of responders and the public. Firetrucks, Ambulances and essential vehicles in firefighting and emergency response, are increasingly being equipped with sophisticated security, communications and surveillance systems to provide real-time monitoring and situational awareness during critical operations.
One key component of these systems is the Enable-IT 8805M, a Power over Ethernet (PoE) Switch, which facilitates the deployment of PoE IP devices such as sensors, WiFi access points and cameras on vehicles, vessels or aircraft for enhanced capabilities.
Creative Firetruck Security, Surveillance and Communications
In the context of modern emergency response, the integration of advanced security surveillance systems on firetrucks has become increasingly important. These systems provide critical support to responders, offering real-time monitoring and situational awareness that can make a significant difference in the outcome of an operation.
Firetrucks are not just vehicles; they are the lifeline of firefighting and emergency response operations. These specialized vehicles are equipped with a wide array of tools and equipment to tackle fires, rescue individuals, and mitigate various emergencies.
However, the challenges faced by firefighters and emergency responders are not limited to the immediate dangers at the scene.

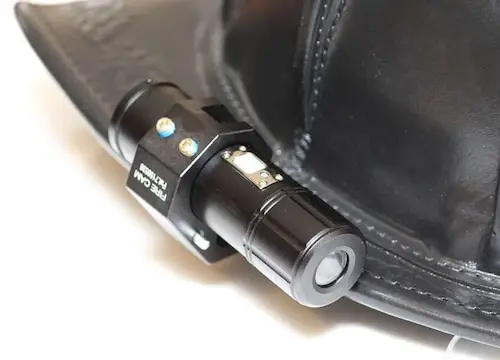

In this solution Firetruck PoE Enabled WiFi Access Points allow for individual firefighters that ability to feed live video streams from their helmets directly to a fire captain in the vehicle or back to a central command center for direct situational awareness. Awesome !!!
Importance of Security Surveillance on Firetrucks
In the demanding and high-risk environment of firefighting and emergency response, having access to reliable security surveillance systems on firetrucks is crucial. These systems provide a range of benefits that enhance the effectiveness and safety of firefighting operations:
Security surveillance systems play a critical role in modern firefighting and emergency response operations. By providing enhanced situational awareness, improving safety, facilitating evidence collection, and promoting accountability, these systems contribute to more effective and efficient emergency response, ultimately saving lives and protecting property.
- Enhanced Situational Awareness: Security surveillance systems offer real-time video feeds, enabling responders to assess the situation before arriving at the scene. This early awareness allows for better decision-making and resource allocation, potentially reducing response times and minimizing damage.
- Improved Safety: Surveillance cameras help in monitoring the surrounding area for potential hazards, ensuring the safety of both responders and bystanders. By providing a comprehensive view of the scene, these cameras help identify risks such as structural instability, hazardous materials, or other dangers, allowing responders to take appropriate precautions.
- Evidence Collection: In the event of an incident or emergency, video footage captured by surveillance cameras can serve as valuable evidence for investigations and training purposes. The ability to review footage can help determine the cause of an incident, identify any areas for improvement in procedures or training, and provide valuable insights for future operations.
- Training and Accountability: Surveillance footage can also be used for training purposes, allowing firefighters to review past incidents and learn from them. Additionally, the presence of cameras can promote accountability among responders, encouraging adherence to protocols and best practices.
- Public Safety: Beyond the immediate benefits to responders, security surveillance on firetrucks also contributes to public safety. The ability to monitor the surrounding area can help identify and respond to potential threats or incidents that may impact the community, enhancing overall emergency preparedness and response capabilities.

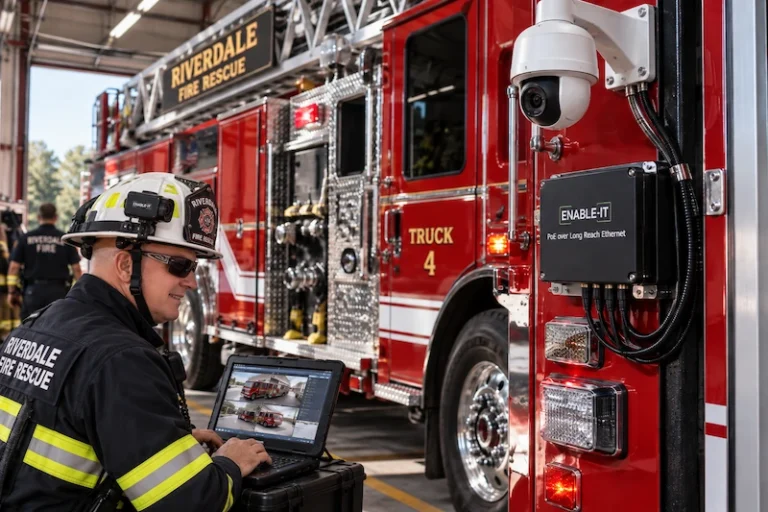

Integration of PoE IP Cameras on Firetrucks & Ambulances
The integration of Power over Ethernet (PoE) IP cameras on firetrucks is a strategic and essential component of modern security surveillance systems. These cameras are designed to be rugged, weatherproof, and capable of capturing high-quality video footage in challenging environments. The placement of PoE IP cameras on firetrucks is carefully planned to provide comprehensive coverage of the surrounding area, including blind spots that may not be visible to the naked eye.
- Camera Placement: PoE IP cameras can be strategically placed on firetrucks to provide optimal coverage. Cameras are typically mounted on the exterior of the vehicle, offering a 360-degree view of the surroundings. Additional cameras may be installed inside the vehicle to monitor the crew and equipment.
- Real-Time Monitoring: The cameras provide real-time video feeds to the firetruck’s monitoring system, allowing responders to assess the situation and make informed decisions. This real-time monitoring is invaluable during emergency response operations, providing critical information to responders as they approach the scene.
- Remote Access: Surveillance footage can be accessed remotely, enabling command centers to monitor operations and provide guidance to on-site responders. This remote access allows for coordination between multiple agencies and enhances overall situational awareness during complex incidents.
- Integration with Other Systems: PoE IP cameras can be integrated with other systems on the firetruck, such as GPS tracking and mapping systems. This integration provides a comprehensive view of the incident scene, allowing responders to navigate and deploy resources more effectively.
- Storage and Retention: The footage captured by PoE IP cameras is typically stored on onboard storage devices or transmitted to a central server for storage and retention. This footage can be used for incident reconstruction, training, and investigation purposes.
The integration of PoE IP cameras on firetrucks enhances security surveillance capabilities, providing responders with valuable information and situational awareness during emergency response operations. By strategically placing cameras, ensuring real-time monitoring, enabling remote access, and integrating with other systems, fire departments can improve operational efficiency and enhance the safety of both responders and the public.

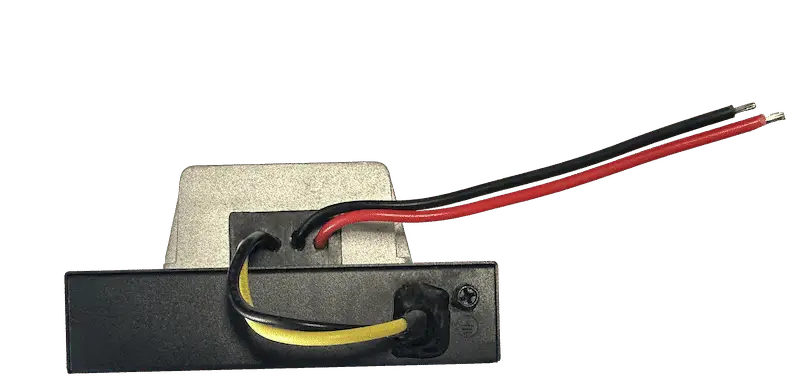

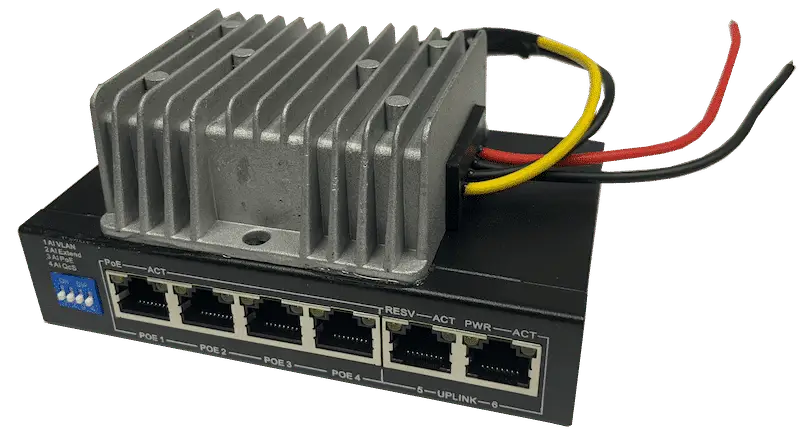

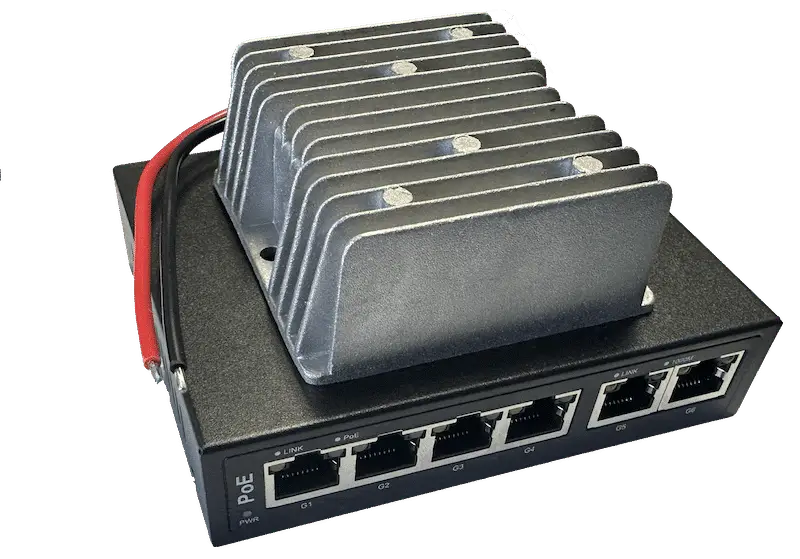

Enable-IT 8805M PoE Extender
The Enable-IT 8805M Automotive / Marine 6-port Gigabit PoE Switch is a versatile and ruggedized PoE switch designed for automotive and marine applications. This unique product offers advanced features and functionality, making it ideal for use in demanding environments where reliable power and data connectivity are essential.
Key Features of the 8805M poE Switch:
- PoE Auto Detect: Automatically detects PoE devices and supplies power with IEEE 802.3af/at/bt standard voltage and watts, ensuring compatibility and safety.
- High-Speed Connectivity: Offers 6 dedicated 10/100/1000Mbps Auto-Negotiation RJ-45 LAN ports with PoE auto detect enabled, providing high-speed data connectivity for PoE devices.
- Extended PoE Reach: Supports PoE electrical power on industry-standard 2-pair cables, allowing for PoE device deployment up to 3,500ft using the 865X PRO Gigabit PoE Extender kit.
- Robust Design: Ruggedized wall-mount black aluminum casing ensures durability and optimal heat extraction without the need for fans, making it suitable for harsh environments.
- Plug-and-Play Installation: Easy to install and requires no configuration, simplifying deployment and maintenance.
- Safety Features: Supports automatic-detect function to protect the system from power overload or non-PoE device connection, ensuring reliable and safe operation.
- LED Indicators: Provides LED indicators for monitoring PoE power, physical link, LAN activity, and LAN speed, allowing for easy status monitoring.
Specifications:
- Power: Supports up to 192W 4A 56V DC PoE output, powered by a supplied 12/24V DC input transformer, making it suitable for use with automotive or marine batteries.
- Data Rate: Supports Gigabit full-duplex Ethernet data and PoE (802.3af/at/bt) for high-speed and reliable data transmission.
- Interface: Includes (4) LAN RJ-45 standard 10/100/1000 Base-TX autosensing ports for Ethernet connectivity and (2) uplink LAN RJ-45 standard 10/100/1000 Base-TX autosensing ports for network uplink.
- Dimensions: Compact and space-saving design with dimensions of Height 1″ (27mm), Depth 2.95″ (75mm), and Width 4.9″ (125mm).
- Environment: Designed to operate in extreme temperatures ranging from -49°F to 168°F (-45°to 76°C) and humidity levels from 10% to 95%, ensuring reliable operation in harsh conditions.
The Enable-IT 8805M Automotive / Marine 6-port Gigabit PoE Switch is a reliable and high-performance PoE switch designed for use in demanding automotive and marine environments. With its advanced features, robust design, and ease of installation, it is an ideal solution for expanding network connectivity and powering PoE devices in challenging settings.
Benefits of Using Enable-IT 8805M for Firetruck Security Surveillance
The Enable-IT 8805M PoE extender offers a range of benefits that make it an ideal choice for integrating security surveillance systems on firetrucks:
- Increased Flexibility: The 8805M extends the reach of PoE networks, allowing for flexible placement of cameras without the need for additional power sources. This flexibility is crucial in emergency response situations, where cameras may need to be deployed in challenging locations to provide optimal coverage.
- Enhanced Security: By extending the reach of PoE networks, the 8805M enables the deployment of cameras in strategic locations on firetrucks, enhancing security surveillance capabilities. This improved coverage helps in monitoring the surrounding area for potential threats and hazards, ensuring the safety of both responders and the public.
- Cost-Effective Solution: The 8805M eliminates the need for expensive infrastructure upgrades by extending the reach of existing PoE networks. This cost-effective solution allows fire departments to enhance their security surveillance capabilities without breaking the budget.
- Reliability: Built to withstand harsh conditions, the 8805M is designed to operate reliably in extreme temperatures and challenging environments. This reliability is essential in emergency response situations, where equipment needs to perform flawlessly under pressure.
- Ease of Installation: The 8805M is easy to install and requires no configuration, making it suitable for rapid deployment in emergency situations. This ease of installation reduces downtime and ensures that security surveillance systems can be quickly deployed when needed most.
The Enable-IT 8805M PoE extender offers a range of benefits that make it an ideal choice for integrating security surveillance systems on firetrucks. From increased flexibility and enhanced security to cost-effective solutions and ease of installation, the 8805M is a valuable tool for enhancing operational efficiency and ensuring the safety of both responders and the public.
Final Thoughts and Conclusion
In conclusion, the integration of security surveillance systems on firetrucks, facilitated by devices such as the Enable-IT 8805M PoE extender, represents a significant advancement in modern firefighting and emergency response capabilities. By providing real-time monitoring, enhanced situational awareness, and improved security, these systems play a crucial role in ensuring the safety of responders and the public during emergency operations.
The Enable-IT 8805M PoE extender, with its long-range PoE extension capabilities, plug-and-play installation, and robust design, is a key enabler of these systems. It allows for the flexible placement of PoE IP cameras on firetrucks, extending the reach of PoE networks and enhancing security surveillance capabilities.
Furthermore, the integration of security surveillance systems on firetrucks is not just about technology; it is about improving operational efficiency, enhancing safety, and ultimately saving lives. These systems provide valuable insights for incident reconstruction, training, and investigations, helping fire departments improve their practices and procedures over time.
Overall, the integration of security surveillance systems on firetrucks represents a proactive approach to emergency response, embracing technology and innovation to meet the evolving challenges of modern firefighting. As technology continues to advance, these systems will play an increasingly important role in enhancing the effectiveness and safety of firefighting and emergency response operations.
Extend any Ethernet Cable Beyond the Limits with Enable-IT Solutions !
The benefit of buying an Ethernet Extender from Enable-IT because our equipment leverages high throughput telecom signals over any wire – including coax, barbed wire fence, etc. Enabling distances unheard of in the industry. There are Ethernet Extender Solutions available that can extend this distance limit out to 9,000 feet or 2,743 m.
The industry uses are endless – as everyone has a need for extended Ethernet many times in their lifetime and sooner than later the need will arise and we are ready when you are to help select a solution.
Diverse Industry customers include the US, UK and Canadian Military; NASA; Aerospace manufacturers; Nautical Infrastructure (Marinas, Mega Yachts, Cruise Ships,Port facilities, US Nuke sub fleet, etc); Video Surveillance and Security Specialists; Advanced Telecommunications companies; Extreme Mining Operators; Global Construction Enterprises; Commercial Agriculture companies; major Healthcare providers; Live Entertainment, Broadcasting, and News agencies; Extreme Retail/POS organizations; Long-Distance Education Companies; International Hospitality Companies; Elevator manufacturers, Digital Signage and much more.
