Enable-IT 8805M Mobile Gigabit PoE Switch
$170.00
► 6-port High Power Gigabit PoE Switch with Smart PoE Detection.
► 4-Ports Auto PoE power detect for safely attaching non-PoE devices.
► Delivers up to 48V ~ 57V DC 95W per port of IEEE 802.3af/at/bt 2-pair or 4-pair High PoE power.

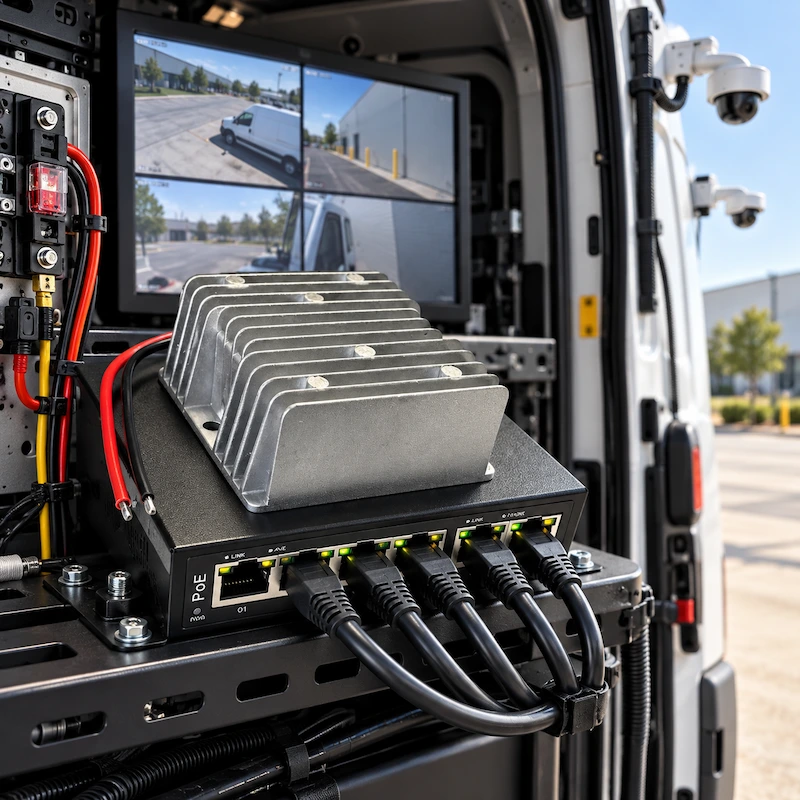

► Installs directly into vehicle battery wiring with or without protection fuse
► Micro size for easy concealment or in protective enclosure.
► Core 16Gbps Backplane to Uplink port allows for over 2 Gbps per port
► 9.2K Jumbo Frame support
► (Full Duplex) and 8k Mac addressing and 4k VLAN addressing supported
► ENABLE-IT USA AS9100D Aerospace Quality Factory Floor Direct Same Day Shipping.
PROFESSIONAL BUSINESS GRADE PERFORMANCE,
RUGGEDIZED EXTREME TEMPERATURE ENCLOSURE,
ENCRYPTED AND SECURE.
► Don’t risk your business data to cheap, low quality imported LAN equipment!
► Protect your company intellectual property as it transits your network.
► Beware of cheap competitors as most of their Extenders are bannedin the USA due to spyware.
► Insist on the Enable-IT Brand, trusted by security experts worldwide.
► NO SALES TAX – The Internet is sales tax Free.

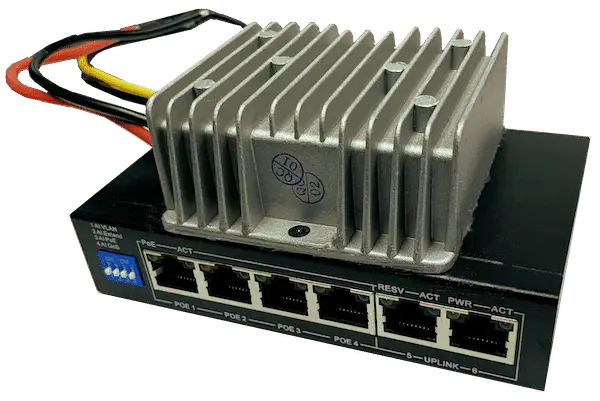

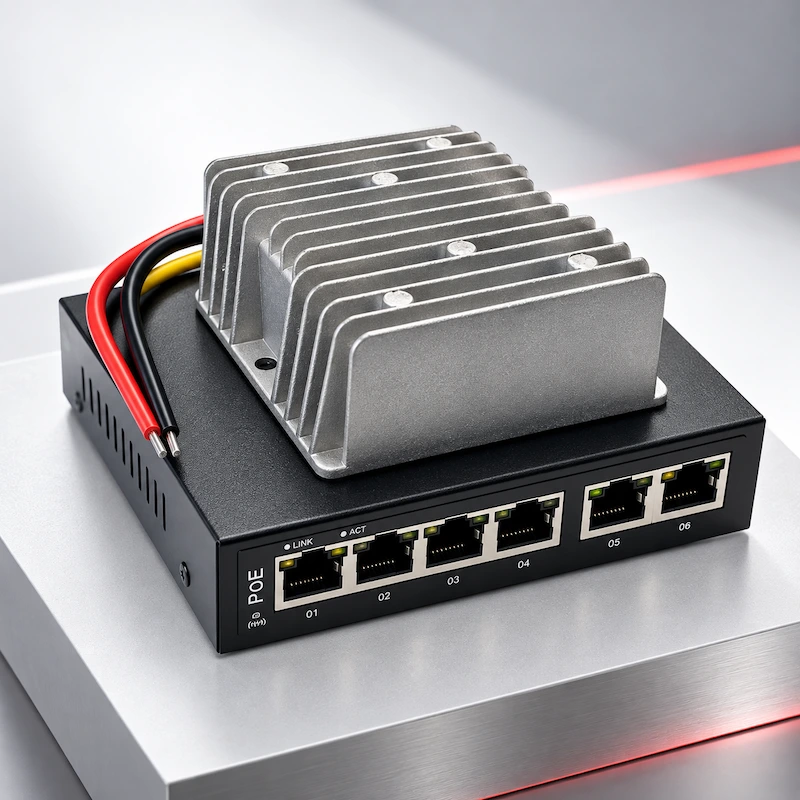

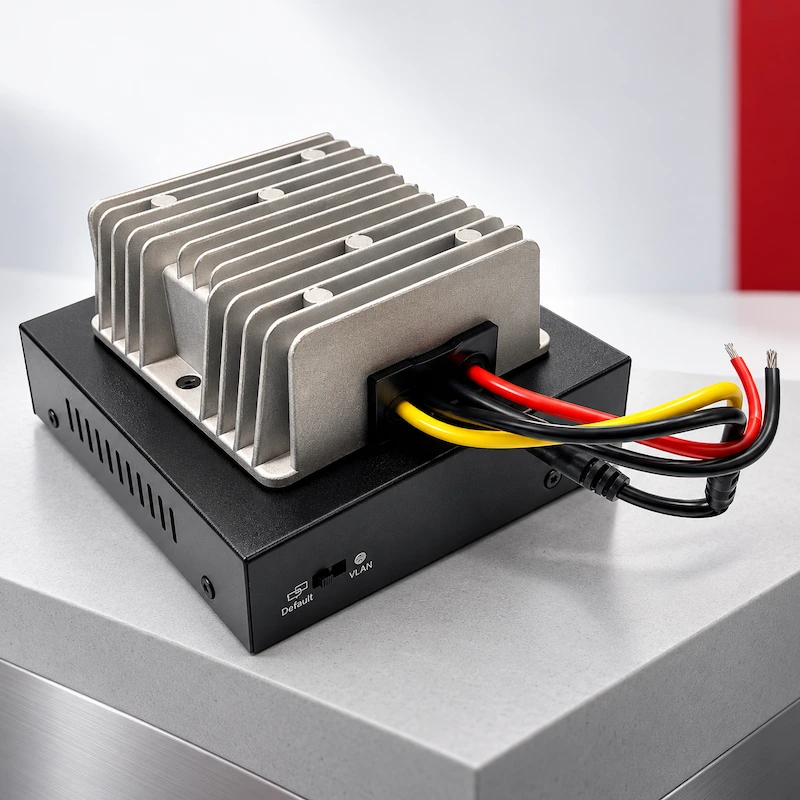

The Enable-IT 8805M Mobile Gigabit PoE Switch
| The Enable-IT 8805M Automotive / Marine 6 port Gigabit PoE Switch is a unique product. It can automatically detect any LAN device and determine if it is a PoE device and supply power with IEEE 802.3af/at/bt standard voltage and watts. Designed & Made in the USA with quality and prideful Craftsmanship! The Enable-IT 8805M Automotive / Marine 6 port Gigabit 380W PoE Switch has 4 dedicated 10/100/1000Mbps Auto- Negotiation RJ-45 LAN ports with each port PoE auto detect enabled. Auto detect PoE uses IEEE 802.3 PoE Power Detection (PD). There is no need to worry about the damage of PoE being applied to Non-PoE Devices and PoE connected devices are supplied with up to 95W per port.Why risk your business to lower quality imported equipment? The value of your network communications should be a protected investment. This enables you to deploy PoE devices such as WiFi Access Points, PoE IP Cameras, Poe Access controls or PoE IP Phones. This Gigabit PoE Switch supports Gigabit PoE extension up to 3,500ft by using our 865X PRO Gigabit PoE Extender kit. | Enable-IT is the seminal creator and inventor of Ethernet Extender and PoE Extender concepts and technology. We are the original trusted source. The US Federal Govt has banned most all non-US made networking products in their networks – Why risk your business using cheap foreign LAN products?Try the world’s fastest performing and most cost effective Ethernet Extender and PoE Extender Solutions – With a 45-day money-back guarantee and Same Day Discounted Rate Shipping, you have nothing to lose. ► Designed and Made in our USA AS9100D Aerospace Quality Production Facilities. ► Professional Business Grade Product, Solid reliability not Chinese Home Use crap. ► Includes the Industry leading Limited Lifetime Manufacturer Warranty. What’s the cost of your network being down? ► Insured, Same Day Discounted Rate Shipping – US Factory Floor Direct.► NO SALES TAX – The Internet has always been tax free worldwide. ► Get some Peace of Mind – 45-day Money Back Guarantee. |
| ► (4) 10/100/1000Mbps Auto-Negotiation RJ-45 ports with PoE auto detect ► (2) Uplink 10/100/1000Mbps Auto-Negotiation RJ-45 ports ► Complies with IEEE 802.3af/at/bt standards ► Each port supports full duplex auto-negotiation -10/100/1000Mbps ► Maximum Bandwidth backplane 16 Gbps | ► Supports High PoE power up to 95W for each PoE port ► Supports automatic-detect function to protect the system when the system power is overloaded or there is a non-PoE device ► LED indicators for monitoring PoE power, Physical link, LAN activity and LAN speed ► DC source power 9V up to 30V converts to 48VDC 5A 380W Outputs 48 ~ 57V DC 95W per port |
This kit includes the following:
| (1) Enable-IT 8805M Gigabit PoE Switch 12V DC Powered (1) 12/24V DC input 380W 5A 56V DC Output Transformer (1) Enable-IT 8805M Gigabit PoE Switch Quickstart Guide | ► Same Day Discounted Rate Shipping ► US West Coast Factory Floor Direct ► Optional 4yr Next Business Day Advanced Replacement |
PowerUse your supplied 9v~30v (typical automotive or marine battery) Positive and Negative leads (Red/Black) attached to the 8805M transformer. Data RateGigabit full-duplex Ethernet Data & PoE (802.3af) or PoE (802.3at/bt) InterfaceEthernet: (4) LAN RJ-45 Standard 10/100/1000 Base-TX autosensing ports | DimensionsHeight 1″ (27mm) Depth 2.95″ (75mm) Width 4.9″ (125mm) EnvironmentOperational Temperature: -49°F to 168°F (-45°to 76°C) EnclosureRuggedized wall mount black Aluminum casing Optimized for heat extraction and isolation without fans. |

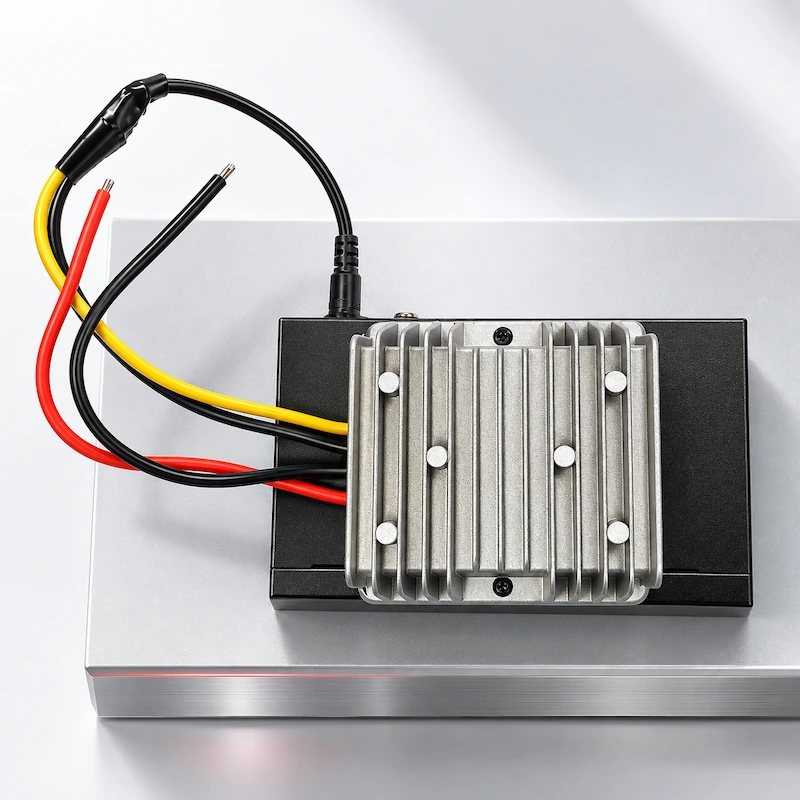

ENABLE-IT 8805M WIRING
