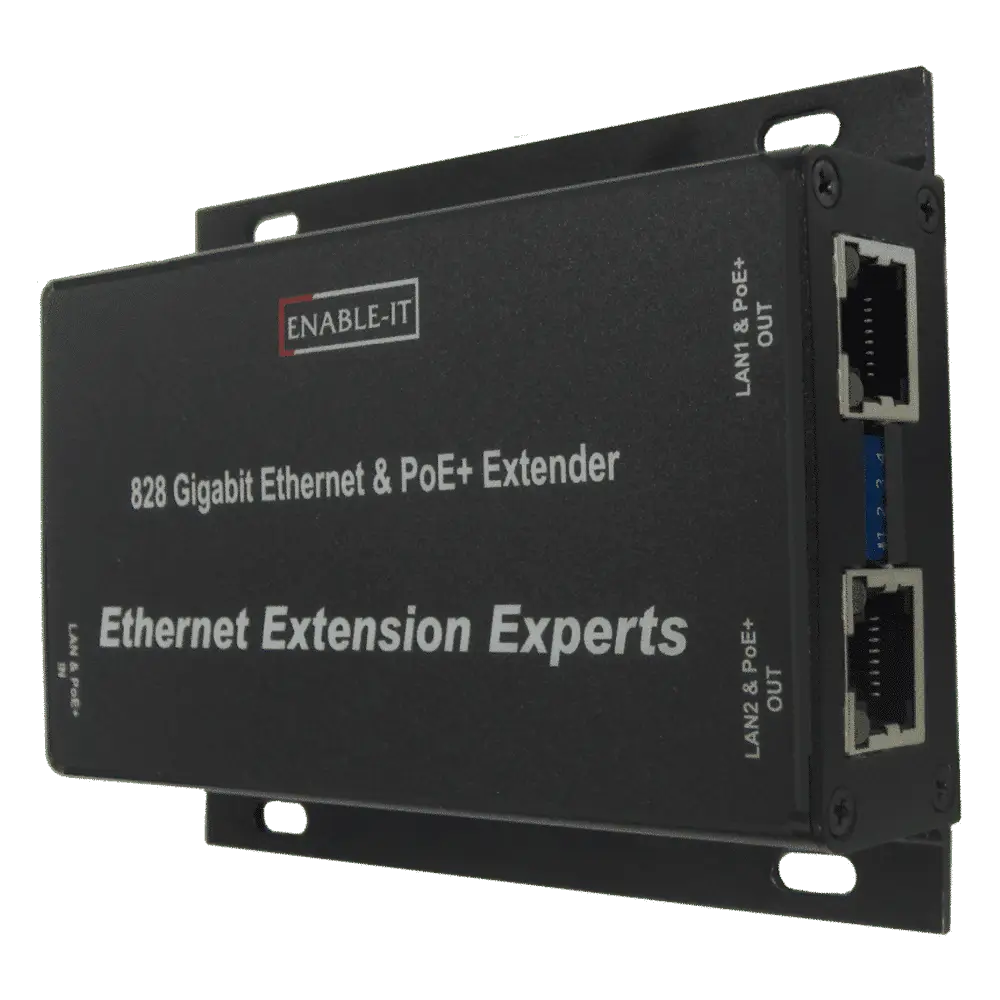

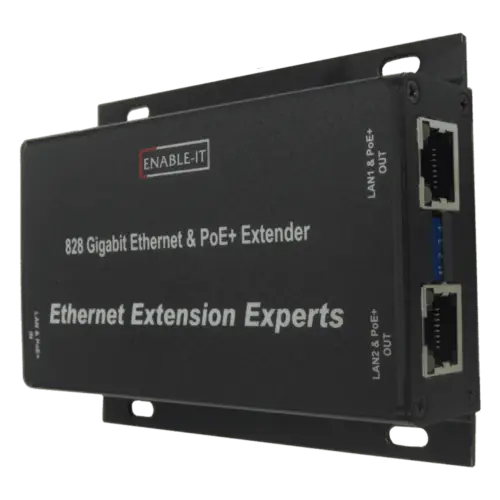

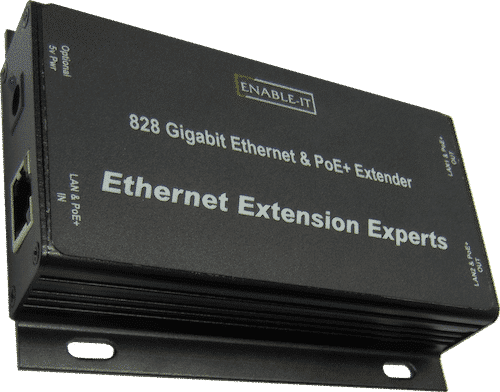

Enable-IT 828 Gigabit PoE Extender Unit

MSRP $299 A Complete Solution End-To-End

3-port Gigabit PoE Extender Solution up to 240m or 800ft.
Delivers Gigabit Full Wire Speed Ethernet with your High Power PoE+.
The PLANET's most trusted and deployed brand since 1982.
Can be deployed as 4 828 units in a series to reach 2,000ft (600m).
Both 2-pair & 4-pair PoE output to support your high powered PoE Devices.
Secure and Encrypted Communications between End-To-End devices.
Any CUSTOM options available at time of order.
ENABLE-IT USA AS9100D Aerospace Quality Factory Floor Direct Same Day Shipping.


DESIGNED & MADE IN THE USA WITH QUALITY AND PRIDE.
PROFESSIONAL BUSINESS GRADE PERFORMANCE,
RUGGEDIZED EXTREME TEMPERATURE ENCLOSURE,
ENCRYPTED AND SECURE.


Don't risk your business data to cheap, low quality imported LAN equipment!
Protect the value of your LAN data and company secrets.
Beware of competitors as some are banned in the USA due to spyware.
Insist on the Enable-IT Brand, trusted by security experts worldwide.

In-Stock NOW Product UPC: 896741002096 [wp-review]

This will also add the following products to your cart:

  • .94¢/mo for a 4yr Advanced Replacement 828 Kit Next Business Day
Request a Quote Quote from Resellers
SKU: 828 Category:
The Enable-IT™ 828 Gigabit PoE Extender Unit is the world’s 1st and only for 4 years running copper Gigabit PoE Extender Kit solution in the industry today.

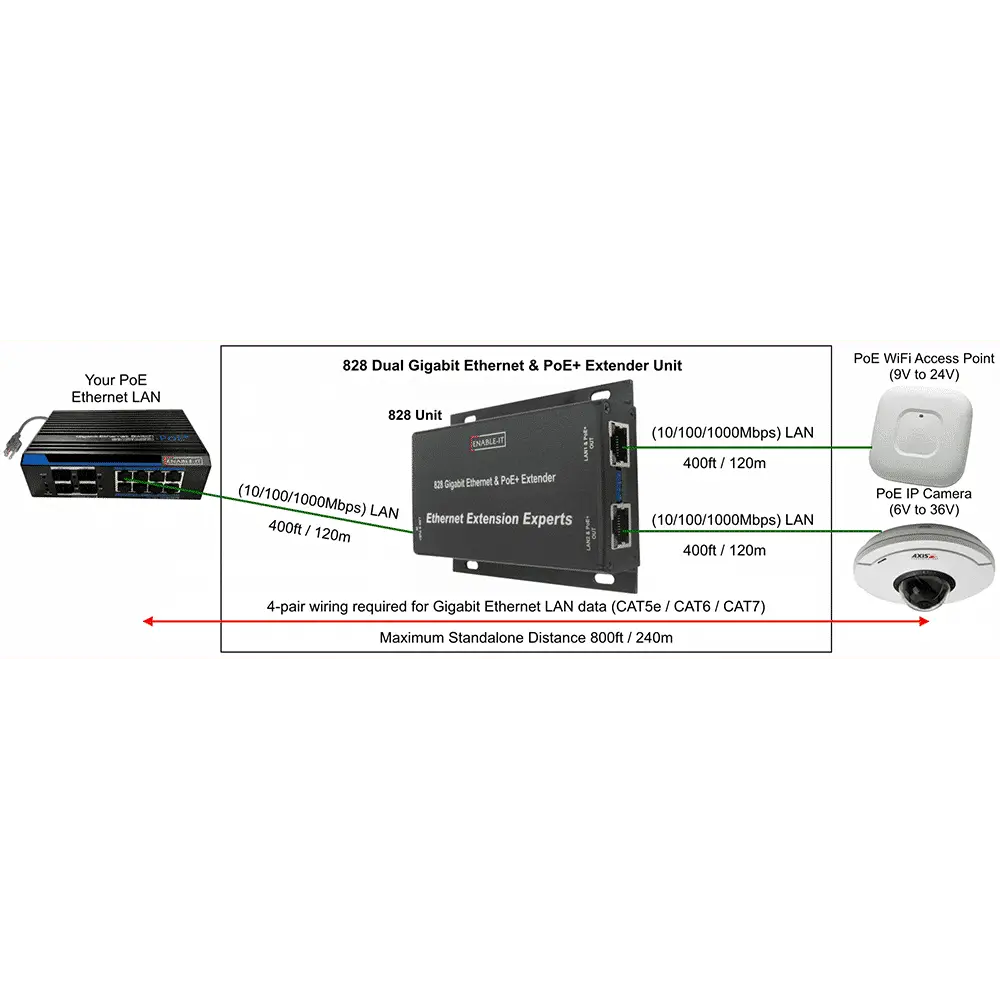

This 828 product is a standalone unit to be used with your PoE Injector or PoE Midspan. The standalone 828 can drive incremental Gigabit Ethernet to 800ft (240m). For installing PoE IP cameras, PoE Access Points and remote LAN segments - Nothing is more cost effective or simple to install. The three LAN port design allows for a laptop to be connected and quickly configure devices.

The Enable-IT 828 can drive industry standard Gigabit Ethernet signals to over six times the restricted IEEE standard Ethernet distance when combined in a series of multiple units and uses high power PoE . This cost-effective solution eliminates many of the limitations and high costs for extending LAN cabling today.

The 828 Series Solution is a standalone powered Gigabit Ethernet Repeater that doubles the range of your Gigabit Ethernet to an unpowered remote location.This is ideal for installing high powered PoE cameras remotely using only a CAT5e or CAT6 rated 100m cabling. Selectable DIP switches allow for disabling PoE output on either output port to enable standard non PoE LAN devices such as a laptop to configure an IP camera.

You can also daisy chain (3) 828 PoE Extender Kit to reach 2,000ft (600m) to power a 56V 50W PoE device easily.
Enable-IT is the seminal creator and inventor of Ethernet Extender and PoE Extender concepts and technology. We are the original trusted source.

The US Federal Govt has banned most all non-US made networking products in their networks - Why risk your business using cheap foreign LAN products?

Try the world's fastest performing and most cost effective PoE Extender Kit Solutions -

With a 45-day money-back guarantee and Same Day Flat Rate Shipping, you have nothing to lose.

Designed and Made in our USA AS9100D Aerospace Quality Production Facilities.

Professional Business Grade Product, Solid reliability not Chinese Home Use crap.

Includes the Industry leading Limited Lifetime Manufacturer Warranty.

Optional 4 year Next Business Day Advanced Replacement for under $1 per month!
        What's the cost of your network being down?

Insured, Same Day Flat Rate Shipping - US West Coast Factory Floor Direct.

Get some Peace of Mind - 45-day Money Back Guarantee.
Extends standard Gigabit Ethernet Full Duplex 6 times beyond the IEEE barrier of 328ft (100m) with PoE 56V over CAT5e/6 or better wiring.
Three LAN port design allows for deployment of (2) separate PoE IP Cameras or devices up to 1,200ft (360m).
DIP switch selection enables you to turn on or off the PoE output for each port.
Rapid LAN style installation RJ-45 LAN Interfaces - no programming required.
Cisco / Motorola reverse polarity PoE compatible.
Daisy chain up to (3) 828’s to 1,200ft (360m).
Ideal for deploying High Definition IP Cameras requiring Gigabit throughput at distance. Supports VoIP (Voice over IP).
LAN Device independence - Transparent to 802.3 Protocols, Applications.
      and MAC / IP addresses.
Sustained full-duplex service delivery end to end.
You must supply the PoE to power the 828 standalone unit or you can order the 828P Gigabit PoE Extender.

This kit includes the following:
(1) EnableIT 828 Gigabit & PoE Ethernet Extender Unit
(1) Enable-IT 828 Quickstart Guide
(1) 10' Black Ethernet patch cords
► Same Day Flat Rate Shipping - US West Coast Factory Floor Direct
► 45-day Money Back Guarantee
► Lifetime Manufacturer Warranty
► Optional 4yr Next Business Day Advanced Replacement

Power

5V DC Self Powered from your PoE Input

Data Rate

1000Mbps full-duplex Ethernet Data & PoE (802.3af) or PoE (802.3at)

Interface

Ethernet: (3) LAN RJ-45 Standard 10/100/1000BaseTX, MDI-X, Auto-negotiate ports)

Dimensions

Thick 1" (25mm) Width 3.1" (81mm) Length 4" (110mm)

Environment

Operational Temperature: -49°F to 168°F (-45°to 76°C)

Humidity: 5% to 95%, non-condensing

Enclosure

Ruggedized metal wallmount casing with Triple Gigabit LAN Network ports

Datasheet ►      Datasheet pdf

Quickstart Guide ►      Quickstart Guide pdf

Product Manual ►      Product Manual pdf

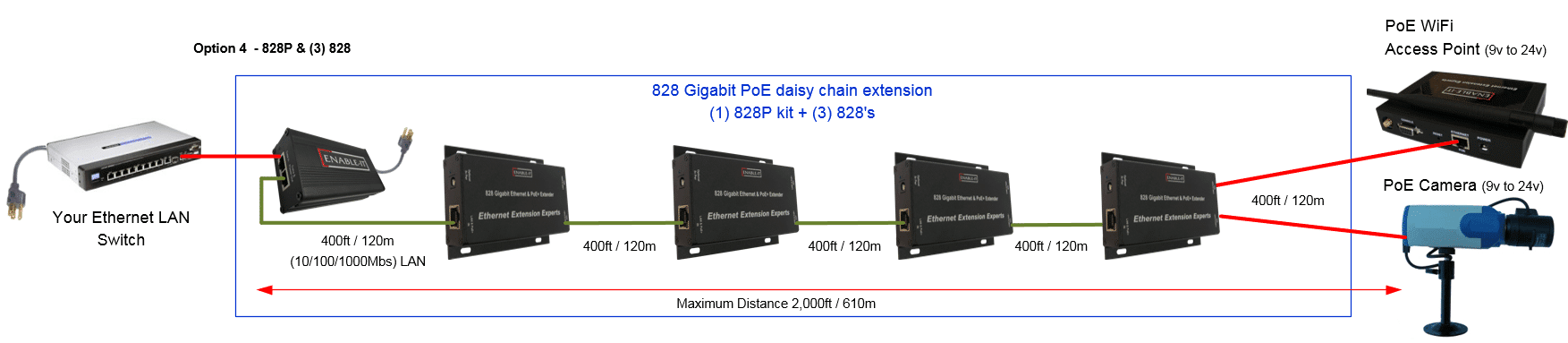

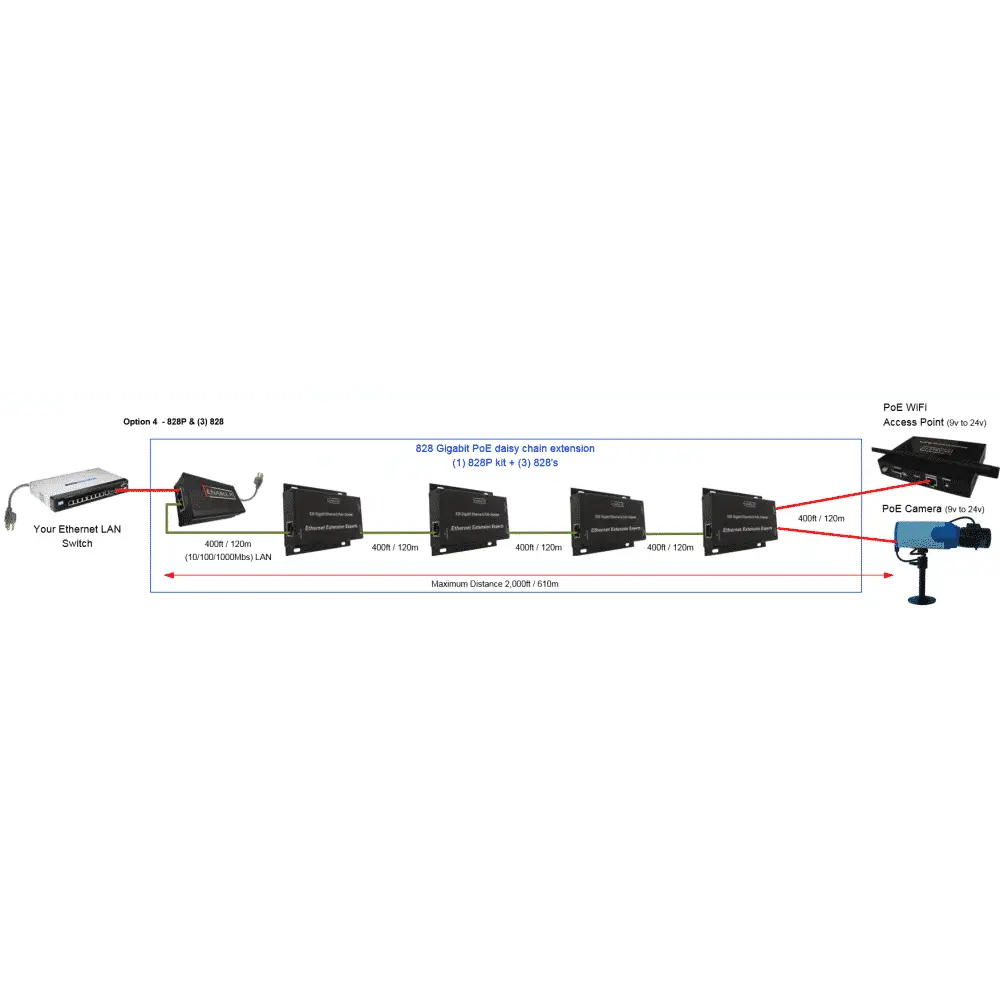

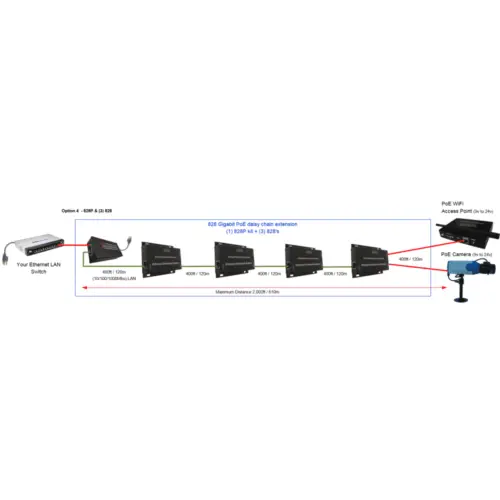

ENABLE-IT 828 MULTIPLES WIRING
Enable-IT 828 multiples
#1 ► Designed and Made in the USA
        Factory Direct Highest Quality Expert Product Engineering.
        Don't be fooled by foreign companies with US offices selling you cheap quality electronics from who knows where.
        Insist on USA made high quality equipment and support.Why a Made in the USA product Matters

#2 ► Professional Grade Equipment - Trusted Reliability
        (Ruggedized, Extreme Distance, Highest Throughput, OEM Customizable, Encrypted and Secure)
        Since 1997, we have been manufacturing the highest quality Made in the USA Ethernet Extenders
        US Factory Floor direct same day flat rate shipping. Our commitment and promise of quality and real value.

#3 ► Lifetime Product Warranty
        Peace of Mind Longest Product Warranty in the industry - Limited Lifetime Product Warranty.
        Why would you waste your time and money with anything of inferior quality
        or from a company that doesn't stand behind it's own products?Warranty Details

#4 ► 45-Day Money Back Guarantee
        For those who wish to try our superior USA engineered Ethernet and or PoE technology.
         We offer a gracious 45-Day trial period when purchasing single unit kits per our policy Money Back Details

#5 ► Certified Spyware Free
        Buyer Beware! Knockoff competitors of our products have been banned by the US Govt for containing data stealing spyware.
        Our products are trusted in some of the most secure environments such as control of US Nuclear weapon systems through
        our national security contracts for the DOD and US Military.

#6 ► No Configuration - Plug and Go - Highest Throughput
        All of our products are ready ring out of the box. Simply connect the devices to your cabling and plug them in if they require a power adapter.
        There are no configuration parameters to set up! We even include your country-specific power adapters.
        Don’t settle for low bandwidth. And because we offer the highest speeds of any Ethernet Extender Manufacturer, we make sure you won’t have to.
        High performance without compromise – that’s what you’ll get.

#7 ► Same Day Flat Rate Shipping - US Factory Floor Direct
        Our US West coast AS9011D manufacturing facility processes all orders placed by 3:30pm PST and expedites for same day shipping worldwide.
        Flat Rate Domestic US Shipping - See our preferred shipping commitment - See our policy Shipping Details

#8 ► Next Business Day Advanced Replacement Service
        No other manufacturer in our industry can stand behind their products or services as well as Enable-IT does bar none.
        We offer a 4-Year peace of mind business continuity AREP (Next Business Day Advanced Replacement). - See our AREP Details

#9 ► US Based Expert Technical Support and Customer Care Team
        No need to speak Mandarin or Urdo and or wait days to get timely support to technical questions answered.
        Our Expert Technical Customer Care Team along with our OEM Design engineers and manufacturing operations are all Proudly USA In-house.
        We take great pride in listening to and understanding your needs and providing professional timely support.Click to Chat

#10 ► Custom USA Made OEM Solutions
        If you need a design or specifications that are not in one of our products, our OEM Design engineers and manufacturing operations are all Proudly USA In-house.
        We can create tailored OEM solutions in days with minimum 10 unit quantity orders. Enable-IT can give you a strategic advantage in your marketplace - Try Enable-IT
