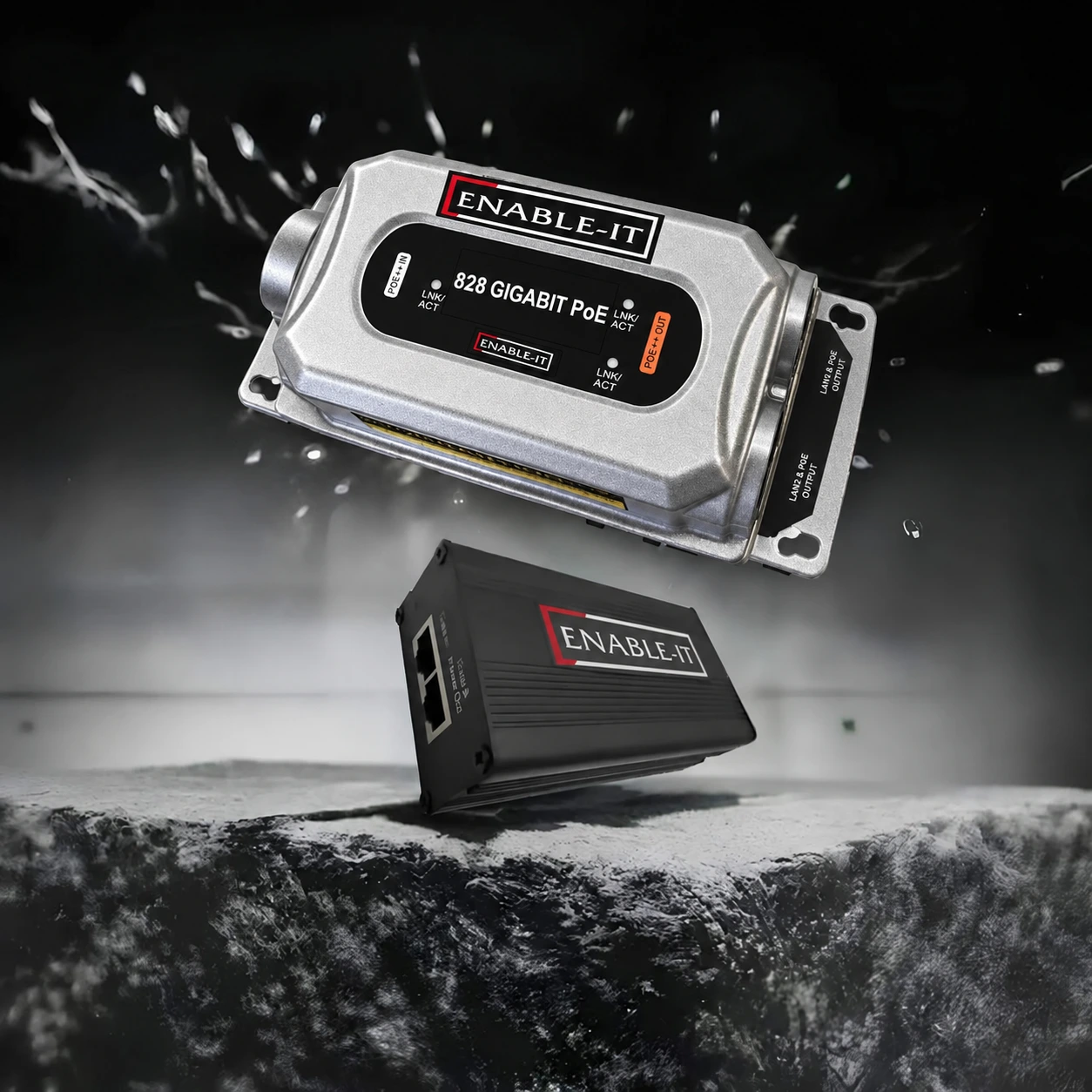

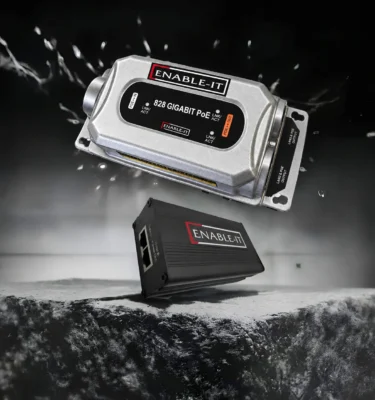

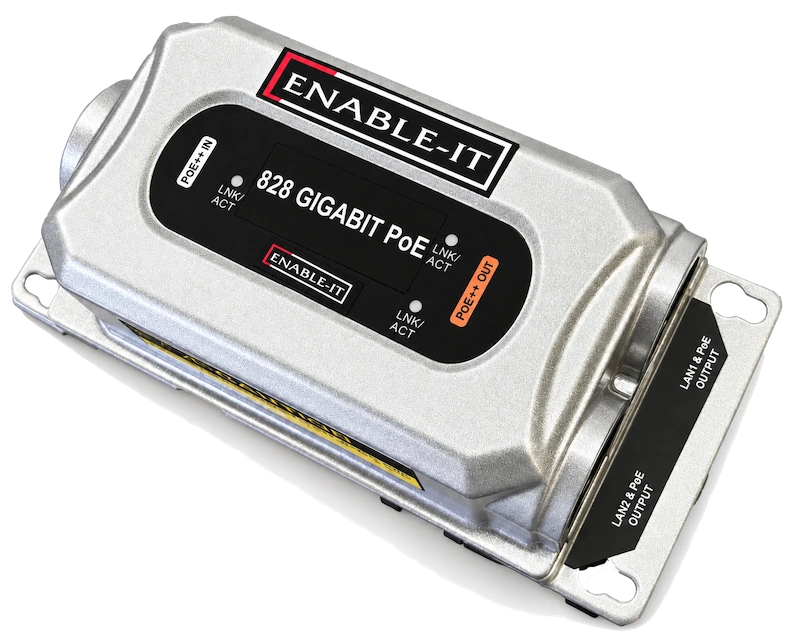

ENABLE-IT 828WP OUTDOOR IP68 RATED WATERPROOF GIGABIT POE EXTENDER

$450

Professional Waterproof Gigabit PoE Extender

The Enable-IT 828WP 3-port IP68 Rated Waterproof Gigabit PoE Extender Kit is a complete solution that drives incremental Gigabit Ethernet up to 240m or 800ft and can be deployed with up to 3 828W units in a series to reach 2,000ft (600m) at blazing fast Gigabit full wire speed. Both 2-pair and 4-pair PoE output is standard to support your high powered PoE Devices.

This professional grade Waterproof solution is ideal for putting your PoE devices where you need them and not where you are limited to by IEEE Ethernet distance restrictions.


DESIGNED & MADE IN THE USA WITH QUALITY AND PRIDE.
PROFESSIONAL BUSINESS GRADE PERFORMANCE,
RUGGEDIZED EXTREME TEMPERATURE ENCLOSURE,
ENCRYPTED AND SECURE.


This is a trusted Business Reliable Professional Grade Ethernet Extension without the high cost of fiber or unsecured wireless. Why risk your business data to lower quality imported equipment? The value of your network communications should be a protected investment.

This 828WP Gigabit PoE Extender solution is ideal for installing extended range PoE devices such as PoE VoIP phones, PoE WiFi Access Points, PoE IP cameras, PoE medical equipment, PoE security locks and much more.
At time of ordering the 828WP can be configured to disable PoE output on either or both output ports to enable non PoE LAN devices. Default configuration is PoE output enabled on both ports.

MSRP $450      A Complete Solution
Post Install Ratings

This will also add the following products to your cart:

  • $1.42/mo for a 4yr Advanced Replacement 828WP Kit Next Business Day
SKU: 828WP Category: Tag:

Add to Cart ► Request a Quote ► Quote from Resellers ►

Add to Cart ► Request a Quote ► Quote from Resellers ►

Professional Waterproof Gigabit PoE Extender

The Enable-IT 828WP 3-port IP68 Rated Waterproof Gigabit PoE Extender Kit is a complete solution that drives incremental Gigabit Ethernet up to 240m or 800ft and can be deployed with up to 3 828W units in a series to reach 2,000ft (600m) at blazing fast Gigabit full wire speed. Both 2-pair and 4-pair PoE output is standard to support your high powered PoE Devices.

This professional grade Waterproof solution is ideal for putting your PoE devices where you need them and not where you are limited to by IEEE Ethernet distance restrictions.


DESIGNED & MADE IN THE USA WITH QUALITY AND PRIDE.
PROFESSIONAL BUSINESS GRADE PERFORMANCE,
RUGGEDIZED EXTREME TEMPERATURE ENCLOSURE,
WATERPROOF / SUBMERSIBLE,
ENCRYPTED AND SECURE.


This is a trusted Business Reliable Professional Grade PoE Extender without the high cost of fiber or unsecured wireless. Why risk your business data to lower quality imported equipment? The value of your network communications should be a protected investment.

This 828WP Gigabit PoE Extender solution is ideal for installing extended range PoE devices such as PoE VoIP phones, PoE WiFi Access Points, PoE IP cameras, PoE medical equipment, PoE security locks and much more.
At time of ordering the 828WP can be configured to disable PoE output on either or both output ports to enable non PoE LAN devices. Default configuration is PoE output enabled on both ports.

MSRP $450      A Complete Solution
Post Install Ratings

Additional information

Weight4 lbs
Dimensions12 x 11 x 3 in

Reviews

There are no reviews yet.

Be the first to review “ENABLE-IT 828WP OUTDOOR IP68 RATED WATERPROOF GIGABIT POE EXTENDER”

Description
The Enable-IT™ 828WP Outdoor IP68 Rated Waterproof Gigabit PoE Extension Solution is ideal for deploying your outdoor PoE Devices like IP PoE Cameras, PoE Sensors and PoE WiFi Access Points. These are the world’s 1st and only Waterproof copper Gigabit PoE solution in the industry - from the Inventors of PoE Extender. This weatherproof solution comes with a high powered Enable-IT 360 56V 61W Gigabit PoE Injector. that powers the 828WP Gigabit PoE Extender and your PoE devices with 2-pair and 4-pair PoE power. The single PoE injector can even power up the 828WP and 3 other 828W units and your PoE device up to 2,000ft (600m) all from one 120 ~ 260V AC outlet - Nothing is more cost effective or simple to install.

The three LAN port design allows for deployment of two separate PoE devices. By default both output ports supply PoE power, however the unit can be configured at time of ordering for disabling PoE output on either or both output ports.

The Enable-IT 828WP Outdoor IP68 Rated Waterproof Gigabit PoE Extender is a very cost-effective solution eliminates many of the limitations and high costs for extending LAN cabling today. For Gigabit throughput make sure to leverage your existing or new CAT5e or better rated cabling

Both 2-pair and 4-pair PoE output is standard to support your high powered PoE Devices.

You can also daisy chain (4) 828W Outdoor IP68 Rated units to reach 2,000ft (600m) to power a PoE devices easily.

► Designed and Made in the USA in High Quality Production runs

► Professional Business Grade Product, Solid reliability not Chinese Home Use

► Includes a Industry leading Lifetime Manufacturer Warranty

► Optional 4 year Next Business Day Advanced Replacement for under $2 per month

► Insured, Free Ground Shipping or Low cost Flat Rate 2nd Day / Overnight Shipping

► 45-day Money Back Guarantee
Key Features
  • Extends Full Duplex Gigabit Ethernet and PoE SIX TIMES beyond the IEEE barrier of 328ft (100m) with PoE+ 56V over CAT5e/6 or better wiring.
  • Three LAN port design allows for deployment of (2) separate PoE devices up to 800ft (240m) or up to 2,000ft (600m) if used in a series.
  • Rapid LAN style installation RJ-45 LAN Interfaces - no programming required.
  • Both 2-pair and 4-pair PoE output is standard to support your high powered PoE Devices.
  • Cisco / Motorola reverse polarity PoE compatible
  • Ideal for deploying High Definition IP Cameras requiring Gigabit throughput at distance.
  • Supports VoIP (Voice over IP).
  • Network equipment independence - Transparent to protocols, applications and MAC addresses.
  • Sustained full-duplex Gigabit Ethernet service delivery end to end.
    This kit includes the following:

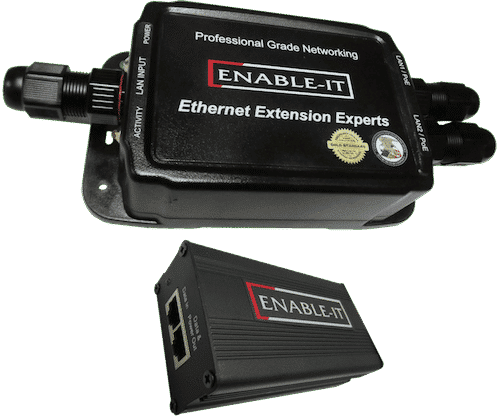

    (1) Enable-IT 828WP Outdoor IP68 Rated Waterproof Gigabit PoE Ethernet Extender Unit

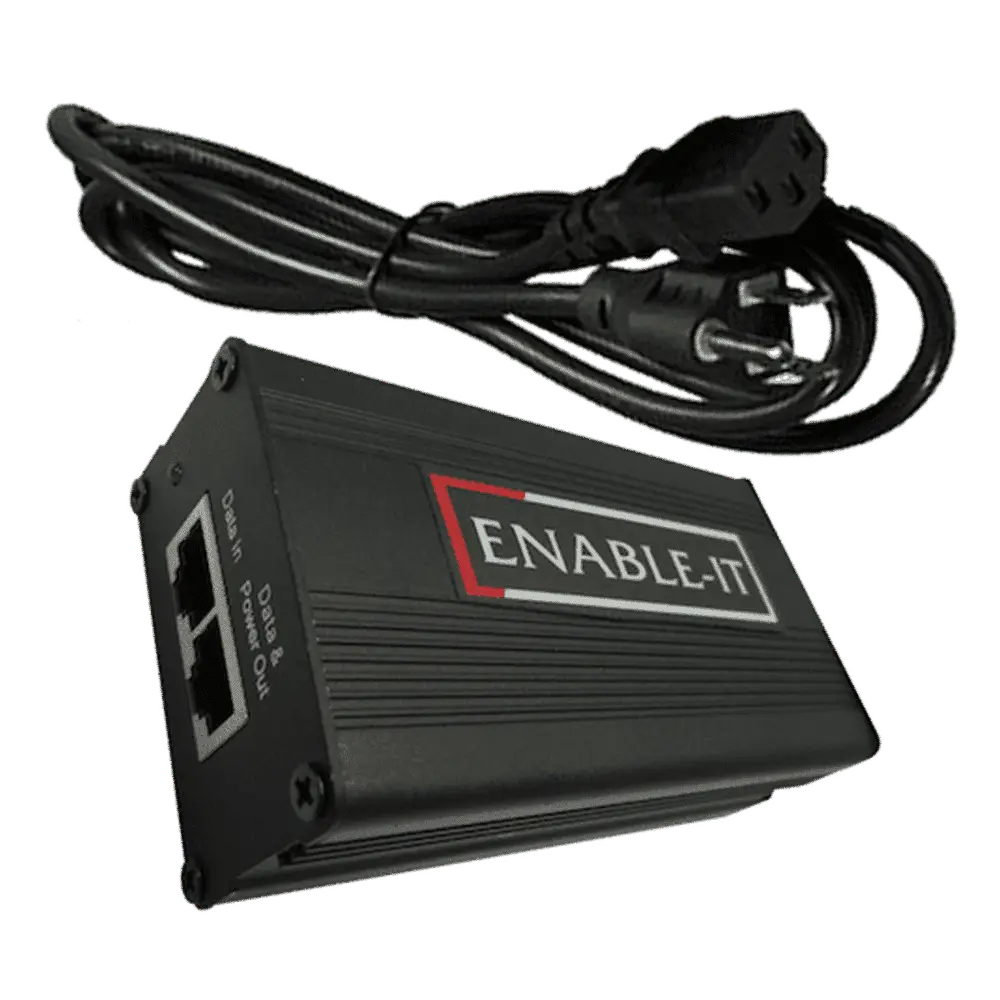

    (1) Enable-IT 360 56V 61W Gigabit PoE Injector

    (2) 10' Black Ethernet patch cords

    (1) Enable-IT 828WP Quickstart Guide

    (1) Lifetime Manufacturer Warranty

    (1) Optional 4yr Next Business Day Replacement

    (1) Free Shipping* and 45-day Money Back Guarantee
    Specifications

    Power

    Enable-IT 360 56V 61W Gigabit PoE Injector- 120 ~260v AC Input 56V DC 61W Output
    Enable-IT 828WP uses PoE input Power and consumes less than 5v DC at startup and passes the rest through

    Data Rate

    Gigabit full-duplex Ethernet Data & PoE (802.3af) or PoE+ (802.3at)

    Interface

    Ethernet: (3) LAN RJ-45 Standard 10/100/1000BaseTX, MDI-X, Auto-negotiate ports

    Dimensions

    Height 2.0" (51mm) Depth 11.0" (280mm) Width 4.5" (114mm)

    Environment

    Operational Temperature: -49°F to 168°F (-45°to 76°C)
    Humidity: 5% to 95%, non-condensing

    Enclosure

    Ruggedized IP68 Rated mountable casing for durability.

    Downloads
    ENABLE-IT 828WP OUTDOOR WATERPROOF GIGABIT POE ETHERNET EXTENDER

    DATASHEET ►


    QUICKSTART GUIDE ►


    MANUAL ►


    Diagrams
     Enable-IT-828WP-Wiring1
    ENABLE-IT 828WP WIRING OPTION 1
     Enable-IT-828WP-Wiring2
    ENABLE-IT 828WP WIRING OPTION 2
    Undeniable Benefits

    ► Designed and Made in the USA

            Factory Direct Highest Quality Expert Product Engineering.
            Don't be fooled by foreign companies with US offices selling you cheap quality electronics from who knows where - Insist on USA made high quality equipment and support.

    ► Professional Grade Equipment - Trusted Reliability

            (Ruggedized, Extreme Distance, Highest Throughput, OEM Customizable, Encrypted and Secure)
            Since 1997, we have been manufacturing the highest quality Made in the USA Ethernet Extenders - US Factory Floor direct same day flat rate shipping.

    ► Lifetime Product Warranty

            Peace of Mind Longest Product Warranty in the industry - Limited Lifetime Product Warranty. Why would you waste your time and money with anything of inferior quality
            or from a company that doesn't stand behind it's own products?

    ► 45-Day Money Back Guarantee

            For those who wish to try our superior USA engineered Ethernet and or PoE technology, we offer a gracious 45-Day trial period when purchasing single unit kits per our policy here .

    ► Certified Spyware Free

            Buyer Beware! Knockoff competitors of our products have been banned by the US Govt for containing data stealing spyware.
            Our products are trusted in some of the most secure environments such as control of US Nuclear weapon systems through our national security contracts for the DOD and US Military.

    ► No Configuration - Plug and Go - Highest Throughput

            All of our products are ready ring out of the box. Simply connect the devices to your cabling and plug them in if they require a power adapter.
            There are no configuration parameters to set up! We even include your country-specific power adapters.
            Don’t settle for low bandwidth. And because we offer the highest speeds of any Ethernet Extender Manufacturer, we make sure you won’t have to.
            High performance without compromise – that’s what you’ll get.

    ► Same Day Flat Rate Shipping - FREE Ground shipping

            Our US West coast manufacturing factory floor processes all orders placed by 4:30pm PST and are expedited for same day shipping worldwide.
            Flat Rate Domestic US Shipping - Ground shipping is FREE - See our policy here .

    ► Next Business Day Advanced Replacement Service

            No other manufacturer in our industry can stand behind their products or services as well as Enable-IT does bar none.
            We offer a 4-Year peace of mind business continuity AREP (Next Business Day Advanced Replacement). - See our AREP policy.

    ► US Based Expert Technical Support and Customer Care Team

            No need to speak Mandarin or Urdo and or wait days to get timely support to technical questions answered.
            Our Expert Technical Customer Care Team along with our OEM Design engineers and manufacturing operations are all Proudly USA In-house.
            We take great pride in listening to and understanding your needs and providing professional timely support.

    ► Custom USA Made OEM Solutions

            If you need a design or specifications that are not in one of our products, our OEM Design engineers and manufacturing operations are all Proudly USA In-house.
            We can create tailored OEM solutions in days with minimum 10 unit quantity orders. Enable-IT can give you a strategic advantage in your marketplace - Try Us
