Enable-IT 865QW PRO Ultra PoE Extender
$799.00
► Install high powered PoE devices like Axis Q or other high power IP Cameras, Aruba and Cisco Access points up to 3,000ft (915m) away from your LAN and Power Source.
► Ultra PoE Extender Solution delivers full duplex Gigabit Ethernet up to 1.2GB/s throughput.
► The PLANET’s most trusted and deployed brand since 1982
► 150W 56V 4-pair PoE output in one clean solution over Twisted Pair.
► Secure and Encrypted Communications between devices
► ENABLE-IT USA Factory Floor Direct Same Day Shipping
► Available in an single port – see 865XW PRO
PROFESSIONAL BUSINESS GRADE PERFORMANCE,
RUGGEDIZED EXTREME TEMPERATURE ENCLOSURE,
ENCRYPTED AND SECURE.
Put your PoE device where you need to and not where you are limited to. Ideal for installing PoE cameras or WiFi Access Points rapidly.
► Don’t risk your business data to cheap, low quality imported LAN equipment!
► Protect your company intellectual property as it transits your network.
► Beware of cheap competitors as most of their Extenders are bannedin the USA due to spyware.
► Insist on the Enable-IT Brand, trusted by security experts worldwide.
► NO SALES TAX – The Internet is sales tax Free.
The Enable-IT 865QW PRO Ultra PoE Extender
|
The Enable-IT 865QW PRO Ultra PoE Extender is the world’s only available solution to Extended Ethernet and Ultra High Power PoE in a complete solution that exceeds the IEEE distance limitations for all Ethernet equipment and 802.3af/at/bt Power Over Ethernet (PoE) Standards. The 865QW PRO enables the simple installation of a high powered PoE devices like Axis Q or other high power IP Cameras, Aruba and Cisco Access points up to 3,000ft (915m) from your LAN and Power Source. This is ideal for installing any PoE IP Security cameras or PoE WiFi Access Points. Over any copper wiring (telephone, twisted pair, coax or 14ga Landscape LED wire) Designed & Made in the USA with quality and prideful Craftsmanship! This Ultra PoE Extender drives the reach of Ultra high power PoE and Ethernet to more than (9) nine times the typical Ethernet distance limit of 328ft, up to 3,000ft (915m) distance. There is no substitute for our Expertise – Only Enable-IT 865QW solution can. Made in the USA with quality and pride – the only manufacturer to do so in this industry.Why risk your business to lower quality imported equipment? The value of your network communications should be a protected investment. Beware of Cheap Chinese “so called Business Use” (not even suitable US Home use) gear that is banned in the US due to discovered hidden spyware. To increase the durability and extended use of the product providing maximum future technology protection, 865Q PRO Ultra PoE Extender have been designed to meet the challenge of modern switched LANs and allows you to add features and capacity as your network expands. The 865QW PRO Ultra PoE Extender Solution delivers full duplex Gigabit Ethernet up to 1.2GB/s throughput. |
Enable-IT is the seminal creator and inventor of Ethernet Extender and PoE Extender concepts and technology. We are the original trusted source. The US Federal Govt has banned most all non-US made networking products in their networks – Why risk your business using cheap foreign LAN products?Try the world’s fastest performing and most cost effective Ethernet Extender and PoE Extender Solutions – With a 45-day money-back guarantee and Same Day Discounted Rate Shipping, you have nothing to lose. ► Designed and Made in our USA AS9100D Aerospace Quality Production Facilities. ► Professional Business Grade Product, Solid reliability not Chinese Home Use crap. ► Includes the Industry leading Limited Lifetime Manufacturer Warranty. What’s the cost of your network being down? ► Insured, Same Day Discounted Rate Shipping – US Factory Floor Direct.► NO SALES TAX – The Internet has always been tax free worldwide. ► Get some Peace of Mind – 45-day Money Back Guarantee. |
| ► Extended Ultra Power over Ethernet (PoE ) over RJ-45 Twisted Pair. ► IEEE 802.3 Ultra PoE is delivered: on pins 3/4/5/6 – positive power on pins 1/2/7/8 – negative power ► Optimized for Ultra PoE ++ devices like the Axis Q Series PTZ cameras. ► Using a managed PoE Switch for data input will detect existing power and shutdown Use our 828 PoE Unit to solve this issue or use standard IEEE 802.3 data only switch |
► Industrial Grade DIN Rail or Wall mountable casing for harsh environments. ► LAN Device independence – Transparent to 802.3 Protocols Applications and MAC / IP addresses. ► Longest warranty protection included exceeding any knockoff competitors. ► 150W Ultra PoE power and Gigabit LAN ports to drive the most demanding PoE Devices at distance. |
This kit includes the following:
| (1) 865Q PRO CO Ethernet Extender (1) 865QW PRO CPE Self Powered Ethernet Extender in a Outdoor IP68 Rated enclosure (3) W Case Cable Seal Connectors (1) W Case Cable Seal Cap (1) 56V – 150W PoE Injector Power Adapter (1) Country Specific (120-260V AC) Power Cord (2) Ethernet Patch Cords (1) Enable-IT 865QW PRO QuickStart User Guide (1) Lifetime Manufacturer Warranty |
► Same Day Discounted Rate Shipping – US West Coast Factory Floor Direct ► 45-day Money Back Guarantee ► Lifetime Manufacturer Warranty ► Optional 4yr Next Business Day Advanced Replacement |
PowerCO unit CPE unit Data Rate1.2 Gbps full-duplex Gigabit Ethernet Data InterfaceEthernet: (2) LAN RJ-45 Standard 10/100/1000 Base-TX autosensing ports |
DimensionsCO Unit: EnvironmentOperational Temperature: -49°F to 168°F (-45°to 76°C) EnclosureRuggedized wallmount black IP68 Rated thick plastic casing. Optimized for heat extraction and isolation without fans. Waterproof glands if installed properly. Interlink configurationRJ-45 Interface – Data is pin 1 & 2 |

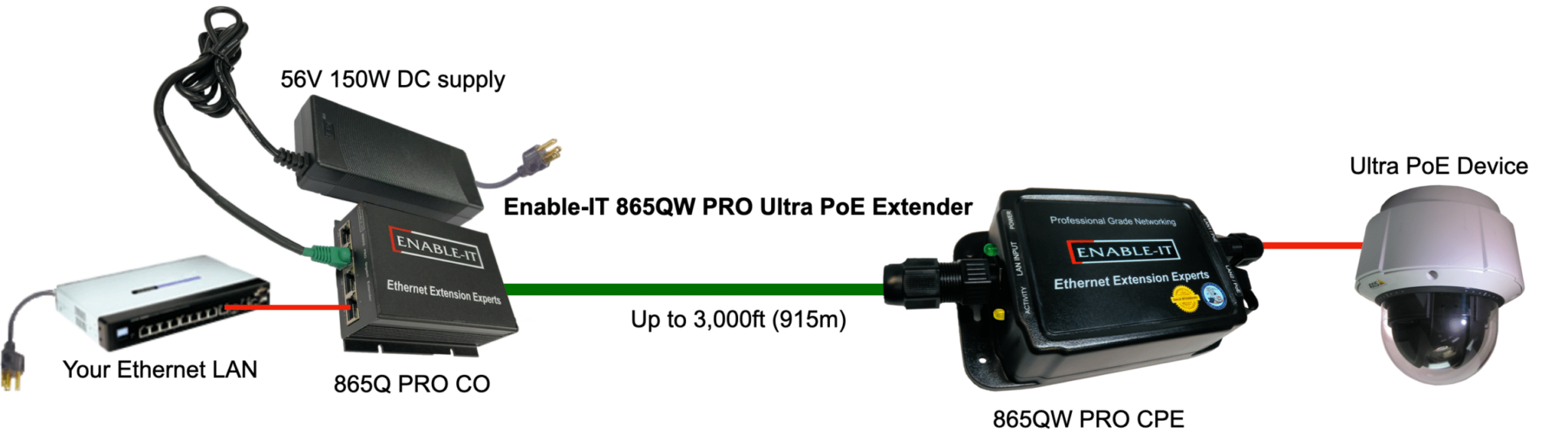

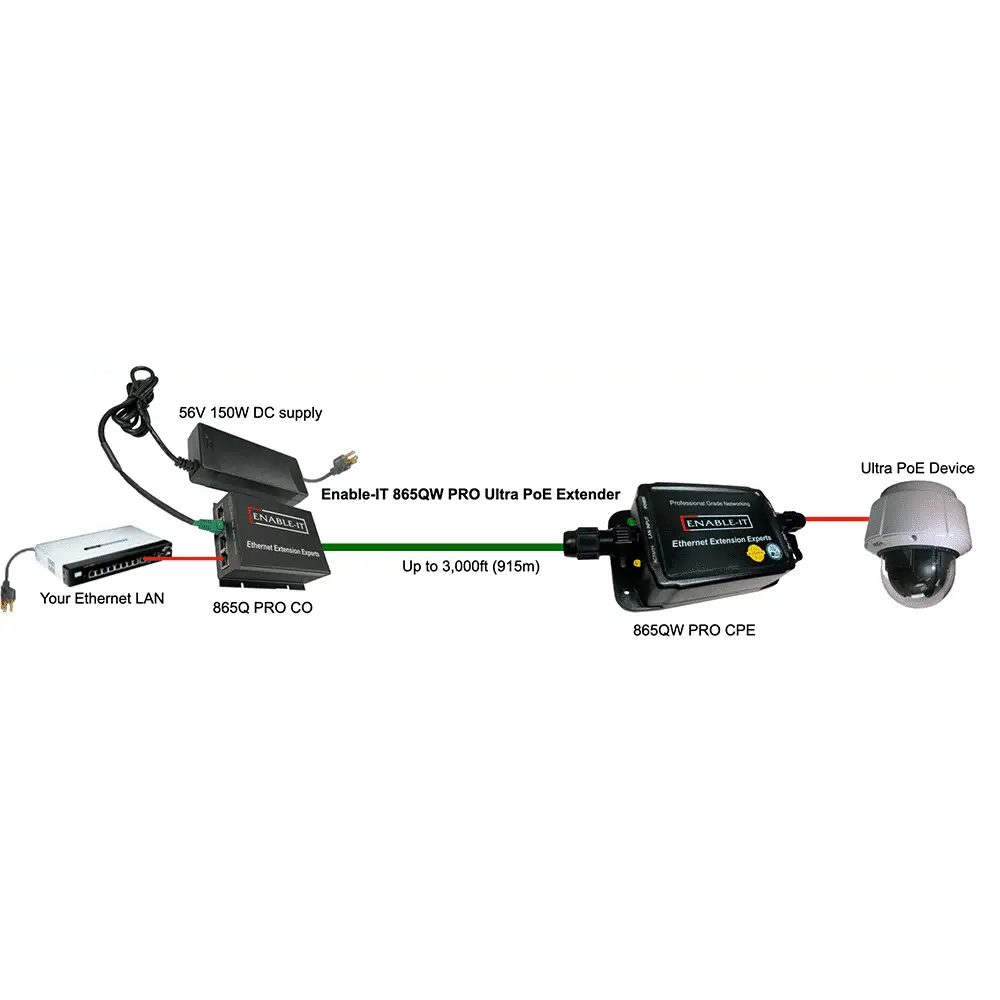

Enable-IT 865QW PRO Ultra PoE Extender Wiring
