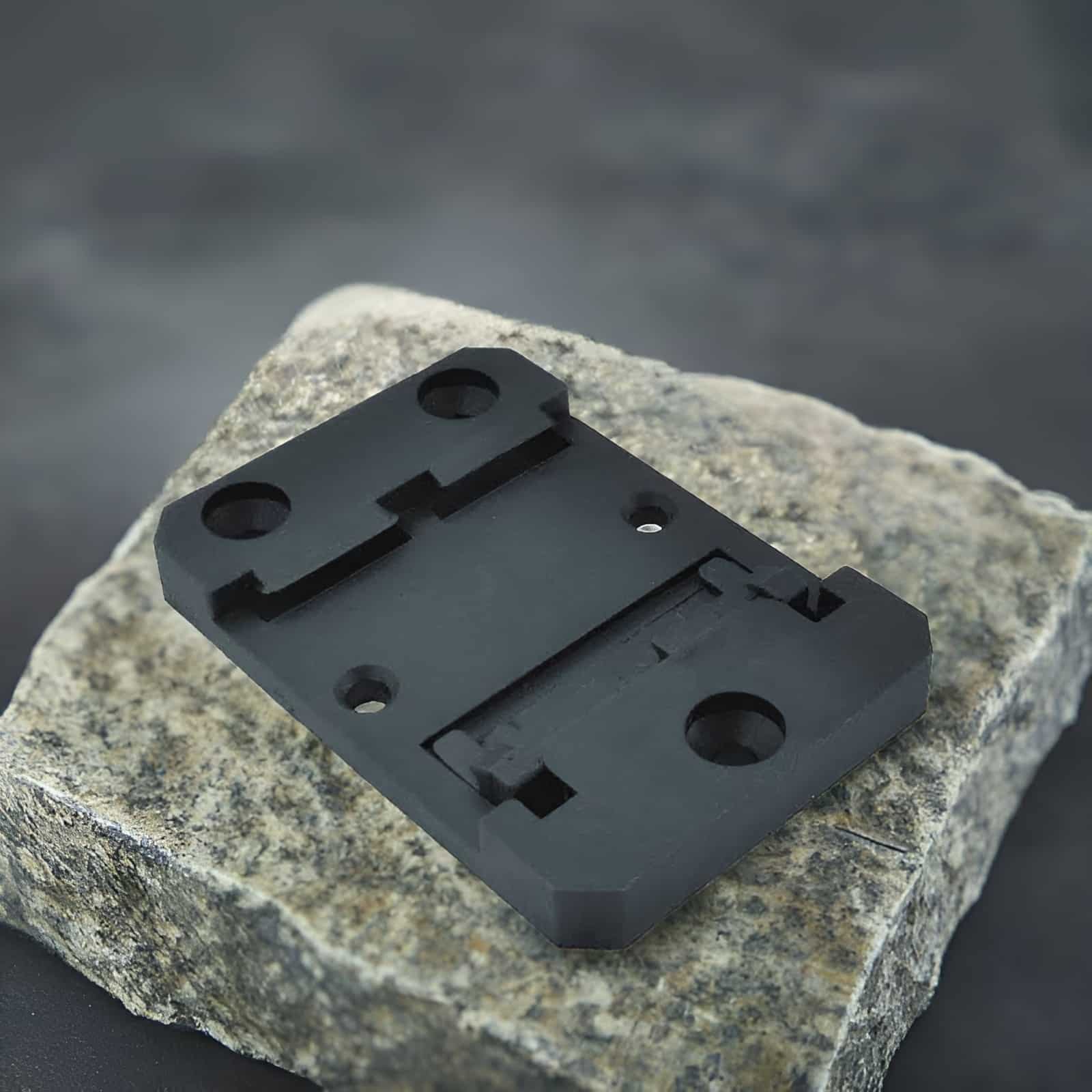

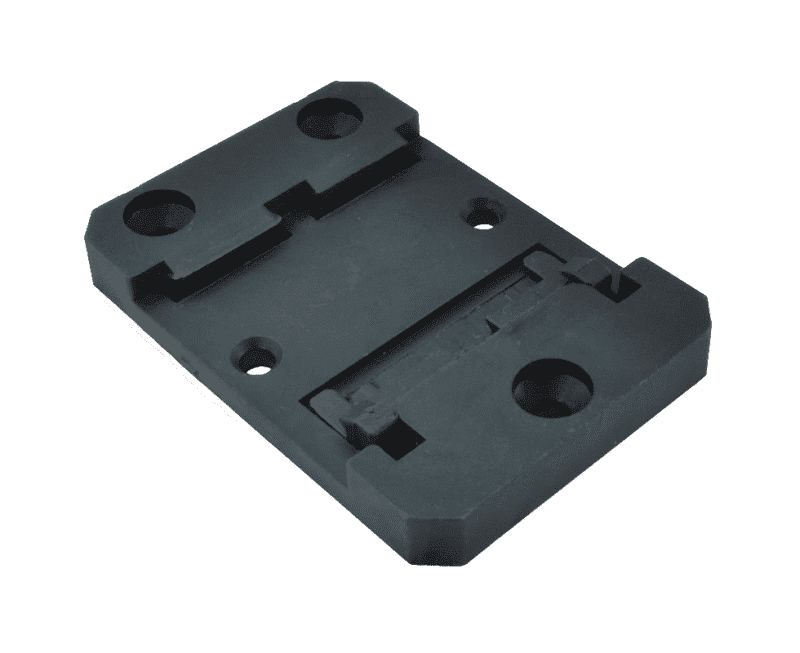

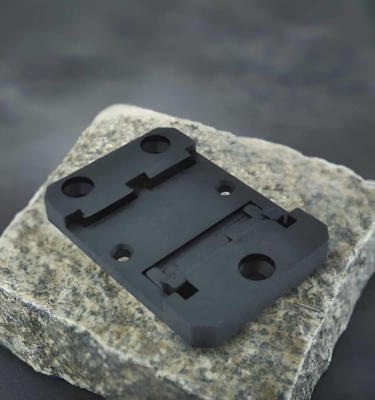

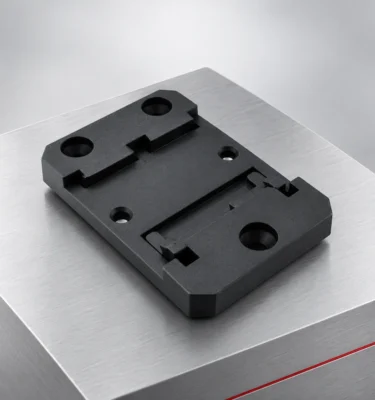

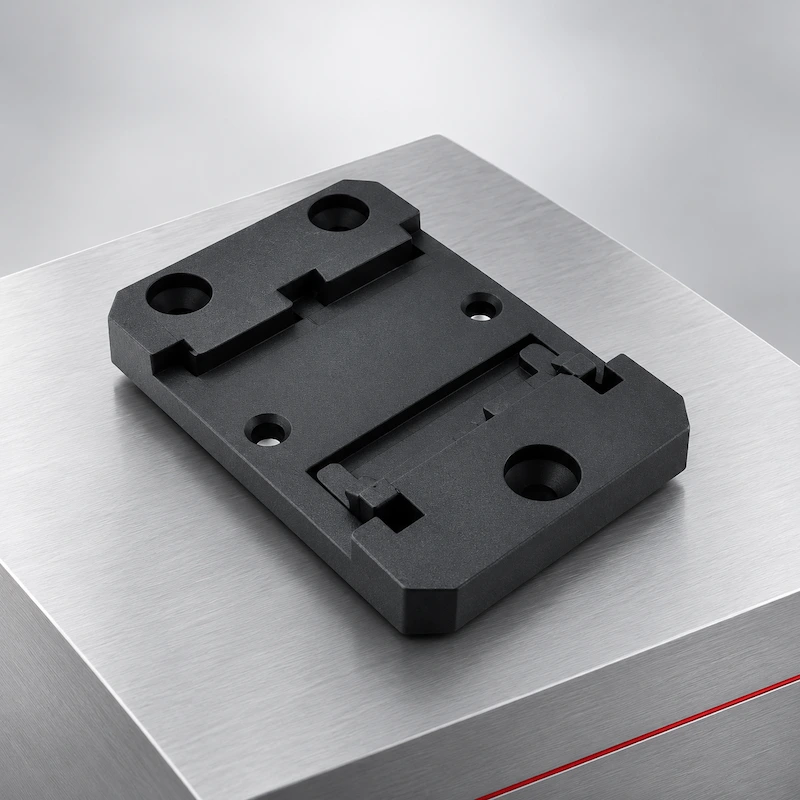

DIN Rail Mounting Clip

$3.50

The EnableIT DIN Rail Mounting Clip for standard 35mm DIN Rails, is a simple sturdy DIN rail mounting bracket for a wide variety of projects where standard DIN rail is used for mounting devices. The flat mounting surface and Non-threaded countersunk holes make these clips versatile for mounting devices that do not have their own DIN rail mounting clip. All of these clips are for standard 35mm DIN rail and work with rail depths of 7.5mm or greater. These clips are sometimes known as DIN rail mounting brackets or plates. This DIN Rail Mount is 48mm wide – suitable for any Enable-IT products to be attached securely to your Standard 35mm DIN Rail application. Our Non-threaded countersunk holes; use flat head screws to fasten the DIN Rail Mounting Clip to your Enable-IT product. For use with other products – The mounting holes are 4mm in diameter and are designed for M4 hardware. However, the holes also allow up to a #8 machine screw or a #6 sheet metal screw to pass through (a #8 sheet metal screw will NOT pass cleanly through the holes, although a #8 machine screw does fit).


â–º Industry standard 35mm DIN Rail spring loaded attachment
â–º Wide 48mm width for mounting on any Enable-IT Products
â–º Non-threaded countersunk holes for attaching to your other products
â–º Made from compressed Fiberglass reinforced nylon 66

Includes the following:

(1) 35mm x 48mm DIN Rail Mounting clip

(1) Free Shipping* and 45-day Money Back Guarantee

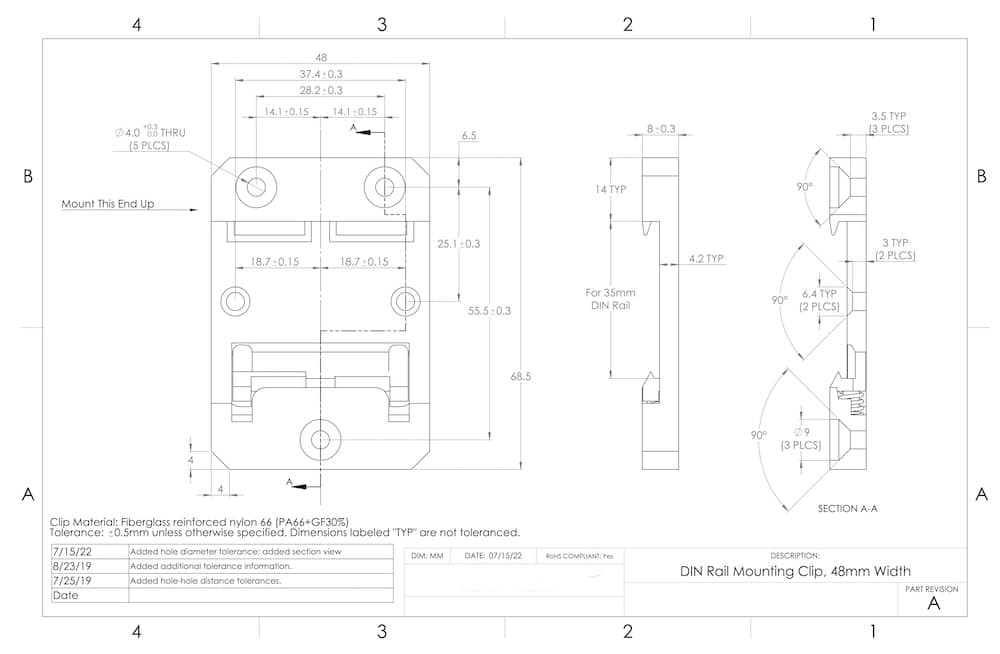

Dimensions

Length 68mm  Height 8mm Width 48mm

Environment

Operational Temperature: -4°F to 149°F (-20°to 65°C)
Humidity: 5% to 85%, non-condensing

Quickstart Guide PDF â–º
Product Manual PDF â–º
