ENABLE-IT 265LP GIGABIT ETHERNET & POE LIGHTNING PROTECTION KIT

MSRP $95 A Complete Solution End-To-End

Set of 2 units for protection of outdoor lines
The PLANET's most trusted and deployed brand since 1982
Ideal for protecting Mission Critical LAN Uptime of your network
Compact weather resistant offering protected dual LAN port connections
Support Gigabit Ethernet and Power Over Ethernet devices
Grounding connection for extra protection to a drain wire


DESIGNED & MADE IN THE USA WITH QUALITY AND PRIDE.
PROFESSIONAL BUSINESS GRADE PERFORMANCE,
RUGGEDIZED EXTREME TEMPERATURE ENCLOSURE,
ENCRYPTED AND SECURE.


The compact weather resistant housing features a single port access and a lockable hinged cover that will not close while wires are being terminated. Mounting holes are provided on the rear. A ground lug and terminal is provided in the lightning protector housing providing superior grounding. This lightning surge protector kit is compatible with Cisco Aironet 1100 and 1200 series access points, DC Injectors and other equipment supporting reverse polarity PoE pinouts.

Beware of cheap competitors as a lot of their LAN devices are banned in the USA due to spyware.
Don't risk your business data to cheap, low quality imported LAN equipment!
Protect the value of your LAN data and company secrets.
Insist on the Enable-IT Brand, trusted by security experts worldwide.

In-Stock NOW         Product UPC: 896741002515

Request a Quote Quote from Resellers
SKU: 265LP Category:

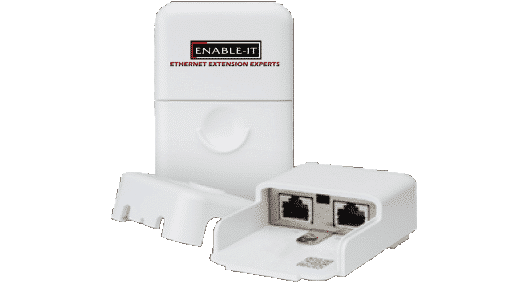

The Enable-IT™ 265LP Gigabit PoE Lightning Protection Kit is a set of compact weather resistant units that provides cost-effective solution for protecting PoE and Ethernet devices from damaging electrostatic discharge and surges.

The units are fully compatible with industry-standard Power-over-Ethernet (PoE) devices and 10/100/1000 Base-T Ethernet networks, providing Surge Protection for Ethernet data pairs as well as the PoE DC power feed.

The internal High speed semiconductors clamp any voltage, positive or negative on the wires. The limits are /- 15 volts on pins, 1, 2, 3 and 6 and /- 58 volts on pins 4, 5, 7 and 8. The units are compatible with both normal and inverted polarity voltage PoE equipment.

For maximum Surge Protection for Ethernet and PoE installs, this kit provides two 265LP units - one at each end of your Ethernet cable run. Most PoE capable equipment is not protected from surges on Ethernet cabling. The Enable-IT™ 265LP Gigabit Ethernet Lightning Protector Kit is compatible with 10/100/1000 Base-T devices as well as Power-over-Ethernet (PoE) devices, including Wireless Access Points, Access Servers and Outdoor Routers that support Power-over-Ethernet (PoE).

These units will save your expensive LAN or PoE IP Equipment at both ends and they do their job by taking the brunt of a lightning strike damage. They are not repairable once they perform this task and will need to be replaced. If you live in a lightning prone area it is advisable to have a spare set for each outdoor line your trying to protect so that you maintain the safety of your expensive LAN and PoE Equipment.

Enable-IT is the seminal creator and inventor of Ethernet Extender and PoE Extender concepts and technology. We are the original trusted source.

The US Federal Govt has banned most all non-US made networking products in their networks - Why risk your business using cheap foreign LAN products?

Try the world's fastest performing and most cost effective Ethernet Extender and PoE Extender Solutions -

With a 45-day money-back guarantee and Same Day Flat Rate Shipping, you have nothing to lose.

Designed and Made in our USA AS9100D Aerospace Quality Production Facilities.

Professional Business Grade Product, Solid reliability not Chinese Home Use crap.

Includes the Industry leading Limited Lifetime Manufacturer Warranty.

        What's the cost of your network being down?

Insured, Same Day Flat Rate Shipping - US Factory Floor Direct.

Weatherproof micro design ideal for wall or pole mounting.

All in one simple solution. that protects each end of your outdoor line.

Compatible with any IEEE 802.3 AF / AT PoE injector / Midspan up to 58V DC.

LAN Device independence - Transparent to 802.3 Protocols, Applications.
      and MAC / IP addresses.

Gigabit Ethernet and PoE compatible.

This kit includes the following:
(2) Enable-IT 265LP Outdoor Lightning Protection units

(1) Enable-IT 265LP Quickstart Guide
► Same Day Flat Rate Shipping - US West Coast Factory Floor Direct
► Lifetime Manufacturer Warranty

Power

ESD/EMP Protection - Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage - 90V @ 100V/s
Impulse Spark-over Voltage - 700V @ 1kV/µs

Data Rate

Gigabit LAN full-duplex Ethernet Data & with simultaneous PoE delivery on all 8 pairs

Interface

Ethernet: (2) LAN RJ-45 ports

Dimensions

Height 3.5" (90mm) Depth 1.28" (32mm) Width 2.4" (61mm)

Environment

Operational Temperature: -22°F to 150°F (-30°to 65°C)
Humidity: 10% to 90%, non-condensing

Enclosure

Ruggedized wallmount plastic casing with enclosed Network ports

Datasheet ►      Datasheet pdf

Quickstart Guide ►      Datasheet pdf

Product Manual ►      Datasheet pdf

ENABLE-IT 265LP GIGABIT PoE LIGHTNING PROTECTION INSTALL
ENABLE-IT 265LP WIRING
ENABLE-IT 265LP WIRINGENABLE-IT 265LP WIRING
