How to Leverage Existing Wiring and PoE Solutions for Outbuilding Connectivity
A common global challenge that everyone runs into at some point in their life or for some of us multiple times ….. is connecting remote building or facilities to a main communications network. Especially when the distance is beyond 100 meters between locations.
Typically data networking is the most required project, but more often it can be the need to add and extended Ethernet line for PoE powered devices. PoE is most often used to put remotely powered and data connected Security cameras, access door/gate controls or wireless access points.
Examples of Outbuilding Scenarios
Various outbuilding scenarios can benefit from the installation of Ethernet and PoE solutions. Consider the following examples:
- Farmhouse Livestock Building: Use PoE to power security cameras for monitoring livestock or PoE-enabled sensors for environmental monitoring. This allows farmers to keep a close eye on their animals and ensure their well-being.
- Horse Stables: Install Wi-Fi access points powered by PoE for internet access in stables. This provides horse owners, trainers, and caretakers with internet connectivity for communication, research, and entertainment while caring for the horses.
- Remote Gate Control: Use PoE to power remote gate control systems for enhanced security. This allows property owners to control access to their premises remotely and monitor gate activity from a distance.
- Remote Workshop: Enable internet access in a remote workshop for communication and online tools. This is especially useful for artisans, craftsmen, and hobbyists who require internet access for research, online sales, and collaboration.
- Building Annex: Extend the network to a building annex for office or workspace expansion. This allows businesses to expand their operations without the need for additional internet connections or infrastructure.
- Outdoor Event Venue: Provide temporary internet access and power for outdoor events such as concerts, festivals, and markets. PoE solutions can power temporary Wi-Fi access points and security cameras for enhanced event management and security.
- Remote Agricultural Operations: Use PoE to power sensors and monitoring devices in remote agricultural areas. This allows farmers to monitor soil moisture, temperature, and other environmental factors to optimize crop yield and resource usage.
- Construction Site Offices: Provide internet access and power for temporary office trailers at construction sites. PoE solutions can power computers, phones, and other devices essential for project management and communication.
Step 1: Assessing the Requirements
There are five most popular ways to extend an Ethernet communications cable (LAN) or PoE (power Over Ethernet) run depending on your specific needs.
Before beginning the installation process, it’s crucial to assess the requirements of the outbuilding comprehensively. Consider the following aspects:
- Internet Access Needs: Determine if the outbuilding requires internet access only, or if there is a need for PoE to power devices such as security cameras, access points, or other PoE-enabled devices. Evaluate the bandwidth requirements for internet access to ensure optimal performance.
- Power Over Ethernet (PoE) Requirements: If PoE is needed, identify the devices that require PoE and their power consumption specifications. This will help in selecting the right PoE equipment for the installation.
- Existing Wiring Analysis: Evaluate the condition and type of existing wiring, such as telephone or electrical wiring, to determine if it can support Ethernet and PoE transmission. Consider factors like cable length, gauge, and insulation to ensure compatibility with PoE requirements.
- Distance Considerations: Determine the distance between the main building with the internet connection and the outbuilding. This will impact the selection of PoE extenders or switches needed to transmit Ethernet and PoE signals over long distances.
- Future Expansion: Anticipate future needs and potential expansions of the network in the outbuilding. Ensure that the chosen solution can accommodate future upgrades or additional PoE devices.
- Environmental Factors: Consider environmental factors such as weather conditions, temperature variations, and exposure to moisture or dust, which may affect the choice of equipment and installation methods.
- Regulatory Compliance: Ensure compliance with local building codes and regulations regarding the installation of networking and electrical equipment in outbuildings.
By thoroughly assessing these requirements, you can plan a more effective and reliable installation of internet and PoE solutions to outbuildings.
Step 2: Selecting the Right Cabling and Equipment
Selecting the right equipment is crucial for a successful installation. Consider the following factors when choosing PoE and networking equipment:
- PoE Solutions: Evaluate the PoE requirements based on the assessed needs of the outbuilding: For PoE to Power the Remote End: Consider using PoE extenders or switches that can deliver power over long distances. Enable-IT offers a range of PoE extenders, such as the 865X PRO, which can extend Ethernet and PoE up to 3000 ft over a single pair of wires or 865XS PRO with 4 output ports at the remote end. These extenders are ideal for scenarios where the outbuilding requires both internet access and PoE for devices.
- Leveraging Existing Wiring: To utilize existing telephone or electrical wiring, consider using the 860GV add-on. This add-on allows you to repurpose existing wiring infrastructure for Ethernet and PoE transmission, eliminating the need for new cable installations. The 860GV add-on is cost-effective and environmentally friendly, making it an excellent choice for outbuildings with existing wiring infrastructure.
- Compatibility and Scalability: Ensure that the selected equipment is compatible with the existing network infrastructure and can support future expansions or upgrades. Choose equipment that offers scalability to accommodate additional PoE devices or increased bandwidth requirements.
- Reliability and Warranty: Select equipment from reputable manufacturers that offer reliable products with a warranty. This ensures long-term performance and peace of mind in case of any issues.
- Power Budget and Efficiency: Calculate the power budget required for PoE devices and select equipment that can efficiently manage and deliver power. Consider energy-efficient options to reduce operational costs and environmental impact.
- Installation and Configuration: Choose equipment that is easy to install and configure, minimizing the complexity of the installation process. Look for equipment with user-friendly interfaces and comprehensive documentation for seamless setup.
By carefully selecting the right equipment based on these factors, you can ensure a reliable and efficient installation of internet and PoE solutions to outbuildings.
Step 3: Installation Process
The installation process for running internet to an outbuilding involves several steps. Follow these guidelines for a successful installation:
For PoE to Power the Remote End:
- Install PoE Extender or Switch: Install the PoE extender or switch at the main building where the internet connection is located. Ensure that the device is securely mounted and accessible for future maintenance.
- Connect Ethernet Cable: Connect the Ethernet cable from the main building to the PoE extender or switch. Use high-quality Ethernet cables that are suitable for outdoor use and can withstand environmental conditions.
- Install Second PoE Extender: Install the second PoE extender at the outbuilding and connect it to the existing wiring. Ensure that the extender is installed in a secure and protected location to prevent damage.
- Connect PoE-Enabled Device: Connect the PoE-enabled device at the outbuilding to the PoE extender using an Ethernet cable. Verify the connection and ensure that the device is receiving power and network connectivity.

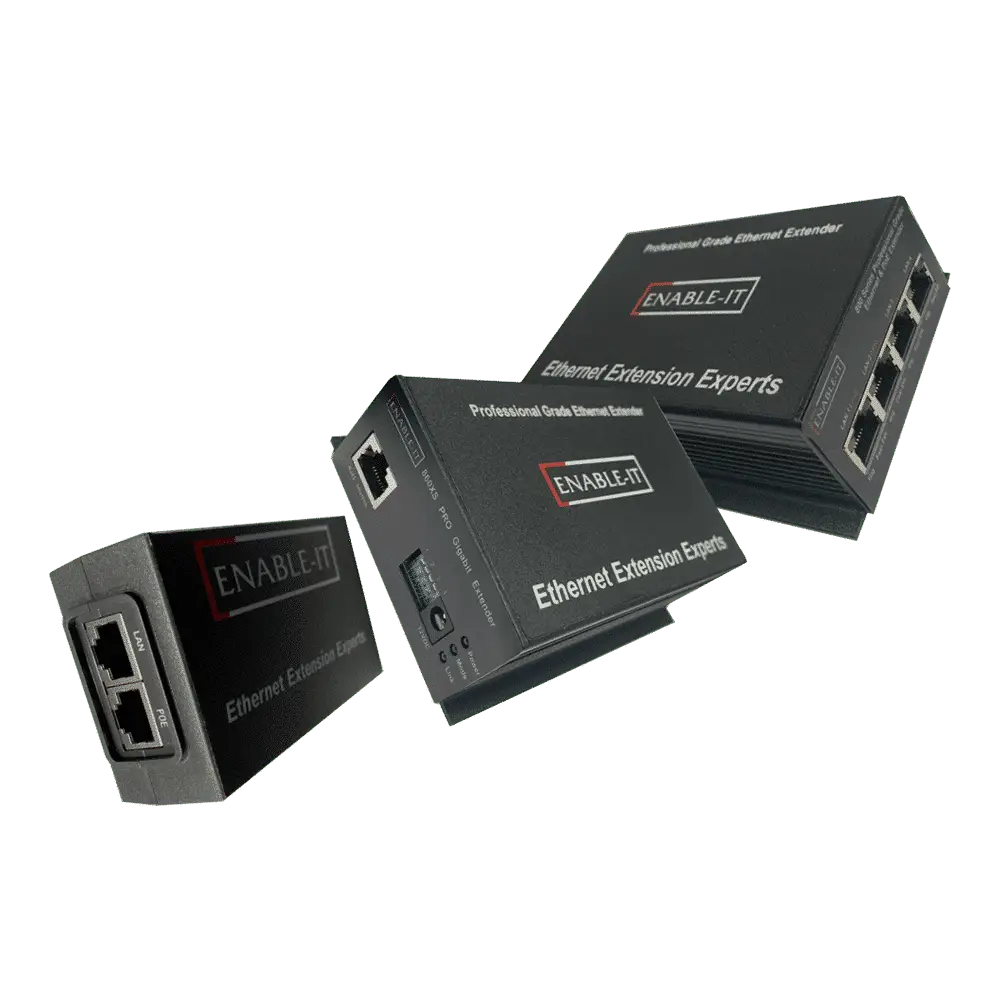

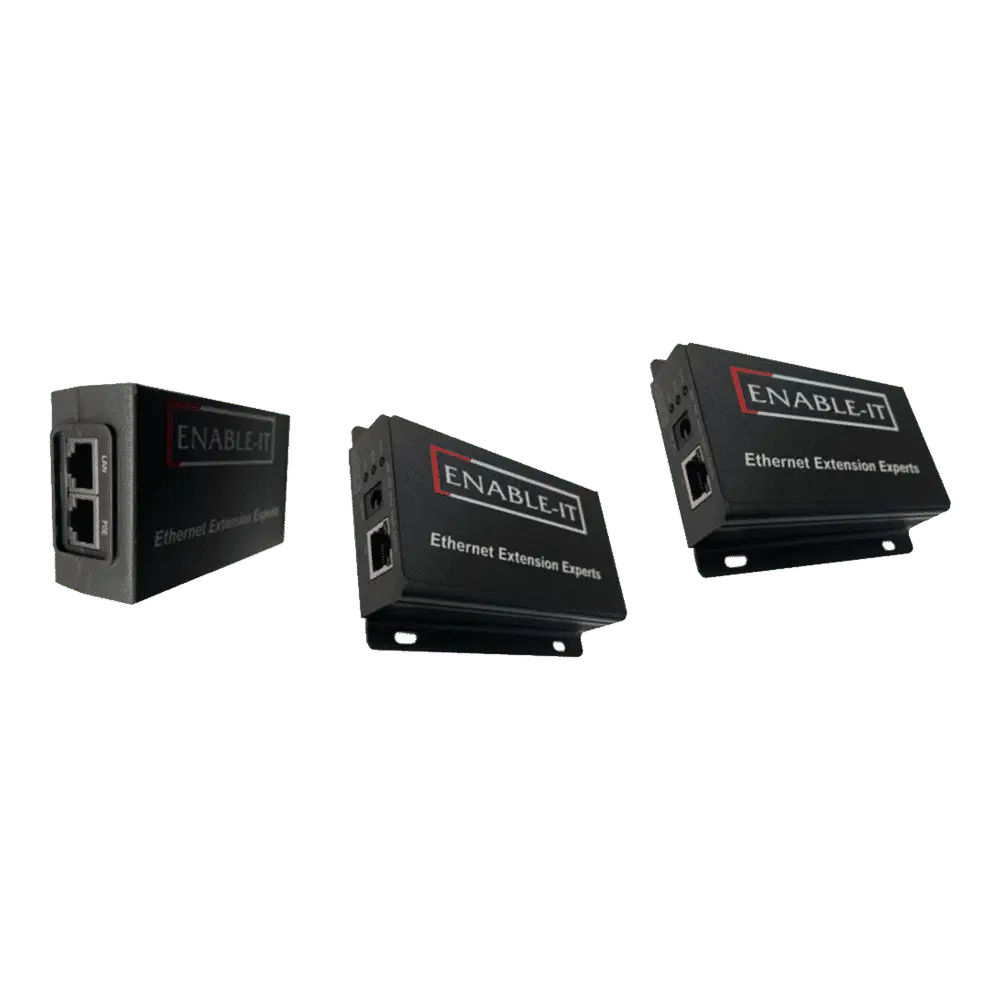

The Enable-IT 865X PRO kit uses 4-pair copper wiring (CAT 2 Telephone wire all the way up to CAT 7 rated).
The 865X PRO Gigabit PoE Extender can support up to 9 CPE units on the same 4-pair of wire.

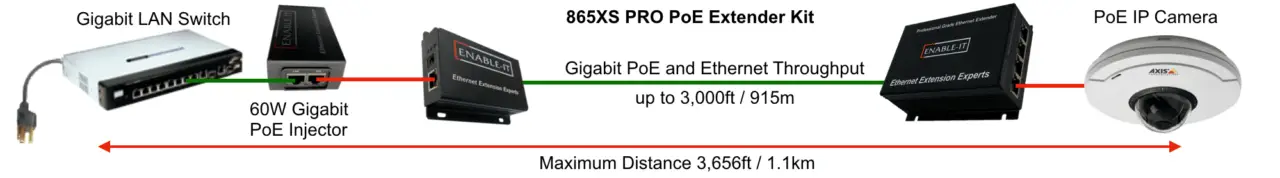

Leverage any 4-pair of existing or new wiring that is contiguous all the way up to 3,000ft or 915m encrypted and secure, effectively saving you thousands in labor, administration, and security. Think fiber is cheap? Have you ever priced or paid for fiber troubleshooting? Think again.
Single port Gigabit LAN built into each end coupled with industrial strength components to survive harsh temperature extremes delivers superior performance, value and capabilities no other competitor can touch.
The Enable-IT 865XS PRO Gigabit PoE Extender kit is an ideal solution to install your IP surveillance cameras, WiFi access points, VoIP phones and other PoE devices where you need, not where you are limited to by false thinking LAN distance restrictions.
It can operate up to 3,000ft / 915m from you power and data source and supports any PoE enabled WiFi Wireless Access Point, Security camera or other PoE powered equipment.
Quad port Gigabit PoE LAN switch built into the remote 4-port end coupled with industrial strength components to survive harsh temperature extremes delivers superior performance, value and capabilities no other competitor can touch.
For PoE for Devices at the Remote End:
- Install PoE Injector or Switch: Install the PoE injector or switch at the main building where the internet connection is located. Ensure proper mounting and connection of the device.
- Connect Ethernet Cable: Connect the Ethernet cable from the main building to the PoE injector or switch. Use appropriate cable management techniques to secure the cable and protect it from environmental hazards.
- Install PoE-Enabled Device: Install the PoE-enabled device at the outbuilding and connect it to the existing wiring. Ensure that the device is properly grounded and protected from moisture and other elements.
- Connect PoE Injector or Switch: Connect the PoE injector or switch to the existing wiring at the outbuilding. Verify the connection and ensure that the device is providing power to the PoE-enabled device.
- Testing and Verification: After the installation is complete, test the connection to ensure that the internet is accessible at the outbuilding. Verify that the PoE-enabled devices are receiving power and functioning correctly.
- Documentation and Maintenance: Document the installation process, including the equipment used and the configuration settings. Perform regular maintenance checks to ensure that the installation remains in good working condition.
Step 4: Testing and Troubleshooting
After completing the installation, it is essential to test the connection to ensure that the internet is accessible and that the PoE devices are receiving power. Follow these steps for testing and troubleshooting:
- Internet Connectivity Test: Use a computer or mobile device to test the internet connectivity in the outbuilding. Ensure that you can access websites and other online services without any issues.
- PoE Device Power Test: Check the power status of the PoE-enabled devices in the outbuilding. Verify that they are receiving power from the PoE injector or switch and are functioning correctly.
- Ethernet Connection Test: Test the Ethernet connection between the main building and the outbuilding. Ensure that the Ethernet cables are properly connected and that there are no connectivity issues.
- Signal Strength Test: If using wireless access points, test the signal strength and coverage area to ensure optimal performance. Consider adjusting the placement or configuration of the access points for better coverage.
- Voltage and Current Test: Use a multimeter to measure the voltage and current at various points in the installation. Ensure that the PoE devices are receiving the correct voltage and current levels.
- Troubleshooting Steps: If you encounter any issues during testing, follow these troubleshooting steps:
- Check the connections: Ensure that all cables are securely connected and that there are no loose connections.
- Verify the configuration: Double-check the configuration settings of the PoE equipment and networking devices to ensure they are correct.
- Power cycle the equipment: Turn off the power to the equipment, wait for a few seconds, and then turn it back on. This can sometimes resolve connectivity issues.
- Check for interference: Ensure that there are no sources of interference, such as other electronic devices or wireless networks, that could be affecting the signal.
- Contact technical support: If you are unable to resolve the issue, contact the technical support team of the equipment manufacturer for assistance.
Documentation and Follow-up: Document the testing process and any issues encountered, along with the solutions implemented. Perform regular follow-up checks to ensure that the installation continues to function properly.
Final Thoughts and Conclusion
Running internet to an outbuilding using PoE solutions and leveraging existing wiring offers a cost-effective and efficient way to extend network connectivity. By following the steps outlined in this article and considering the examples provided, you can establish a reliable internet connection to various outbuilding scenarios.
The key benefits of this approach include:
- Cost-Effectiveness: Utilizing existing wiring eliminates the need for expensive cable installations, saving both time and money.
- Efficiency: Installation is quicker since there’s no need to lay new cables, allowing for faster deployment of network infrastructure.
- Environmental Impact: Reusing existing infrastructure reduces waste and environmental impact, making it a more sustainable choice.
- Seamless Integration: Existing wiring can be easily integrated into the network without disruption, ensuring smooth operation of the network.
In conclusion, running internet to an outbuilding can be achieved effectively by using PoE solutions and leveraging existing wiring. By assessing the requirements, selecting the right equipment, following the installation process, and testing the connection, you can establish a reliable internet connection to various outbuilding scenarios, enhancing security, communication, and efficiency.
