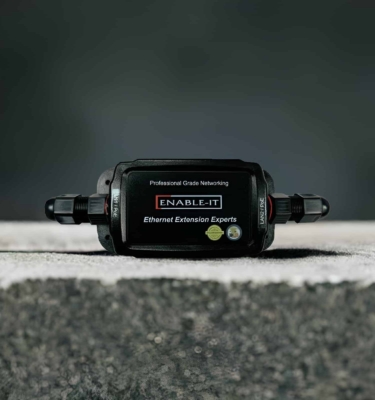

Enable-IT 324W Gigabit PoE Reducer 24V DC Inline Solution
Enable-IT 324W Gigabit PoE Reducer 24V DC Inline Solution
$150.00
► The PLANET’s most trusted and deployed brand since 1982.
► 24V Gigabit Waterproof PoE Reducer.
► Optional 12V or 24V Output at time of ordering.
► Ideal for installing fixed low powered PoE device up to 4,000ft away.
► Leverage high powered PoE injectors for distance and step down to 12 or 24V.
► Supports both 2-pair or 4-pair PoE.
► Any CUSTOM options available at time of order.
► ENABLE-IT USA AS9100D Aerospace Quality Factory Floor Direct Same Day Shipping.
PROFESSIONAL BUSINESS GRADE PERFORMANCE,
RUGGEDIZED EXTREME TEMPERATURE ENCLOSURE,
ENCRYPTED AND SECURE.
► Don’t risk your business data to cheap, low quality imported LAN equipment!
► Protect your company intellectual property as it transits your network.
► Beware of cheap competitors as most of their Extenders are bannedin the USA due to spyware.
► Insist on the Enable-IT Brand, trusted by security experts worldwide.
► NO SALES TAX – The Internet is sales tax Free.
In-Stock NOW Product UPC: 896741002102

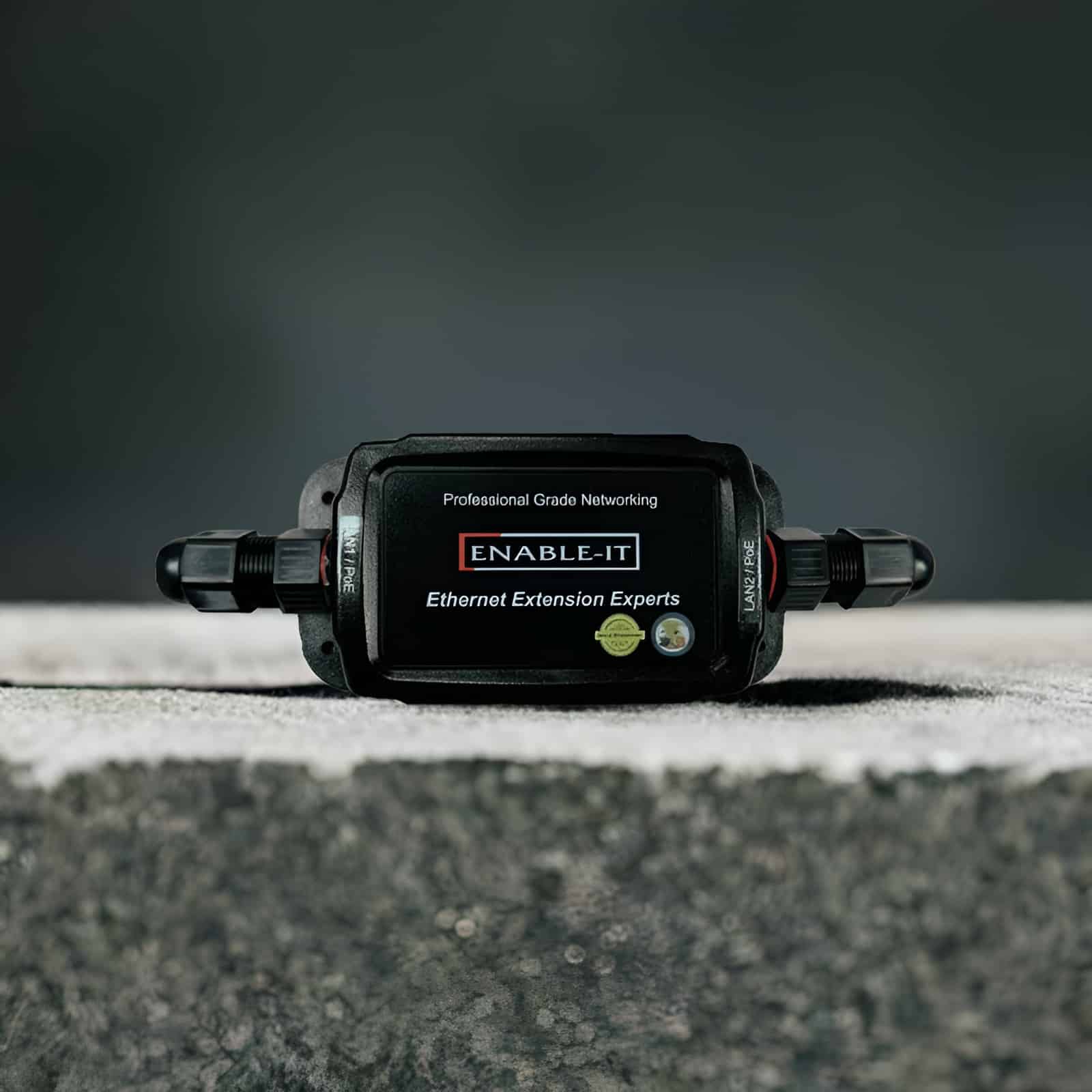

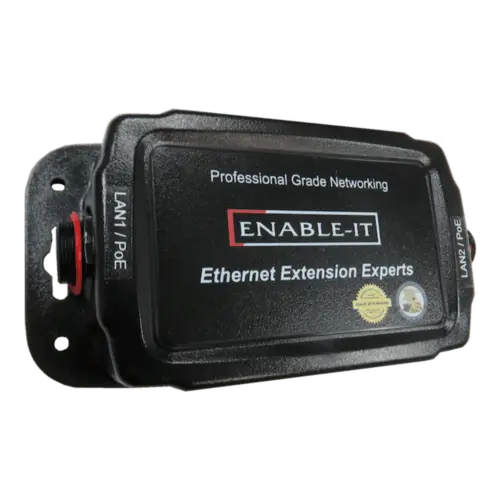

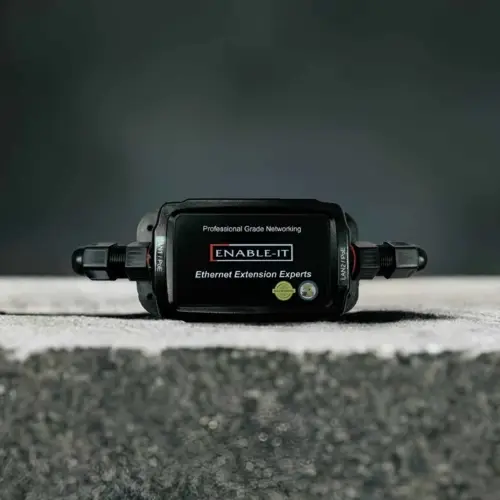

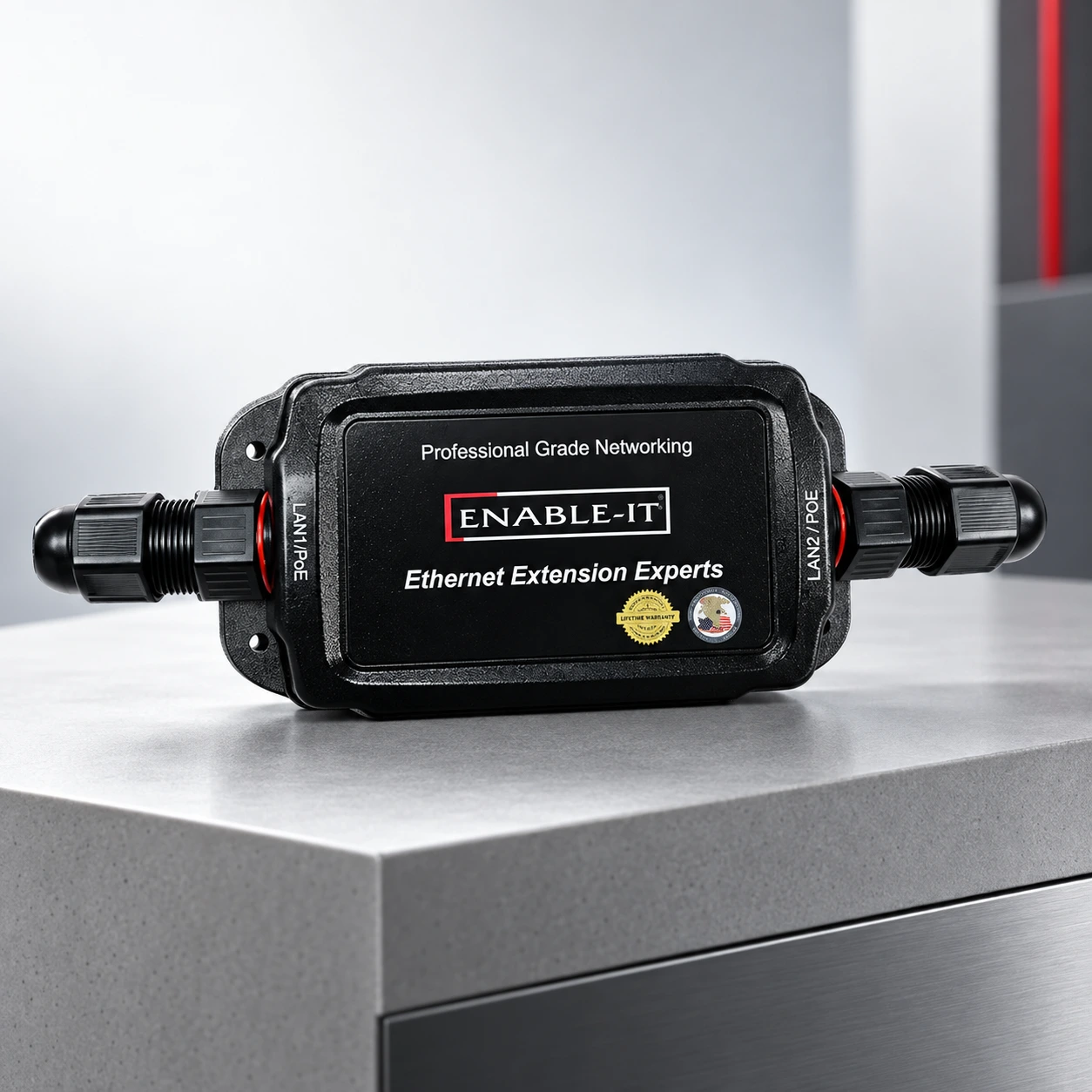

The EnableIT™ 324W Gigabit Outdoor PoE Reducer 24V DC Inline Solution

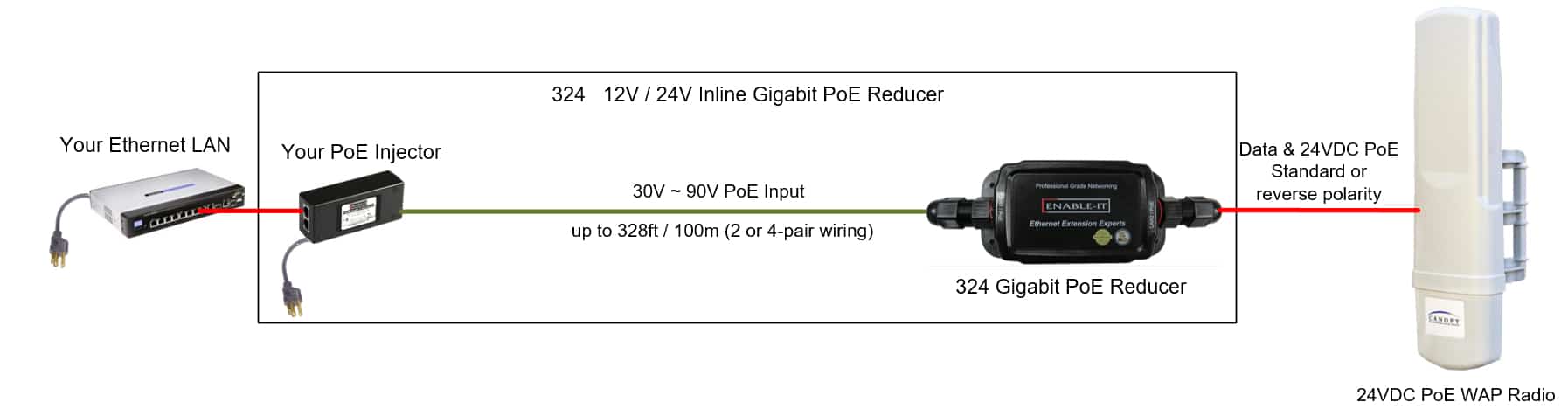

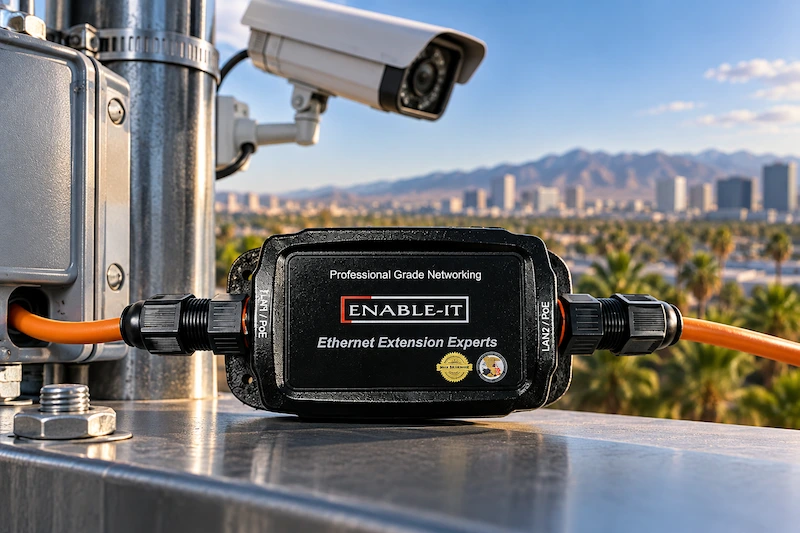

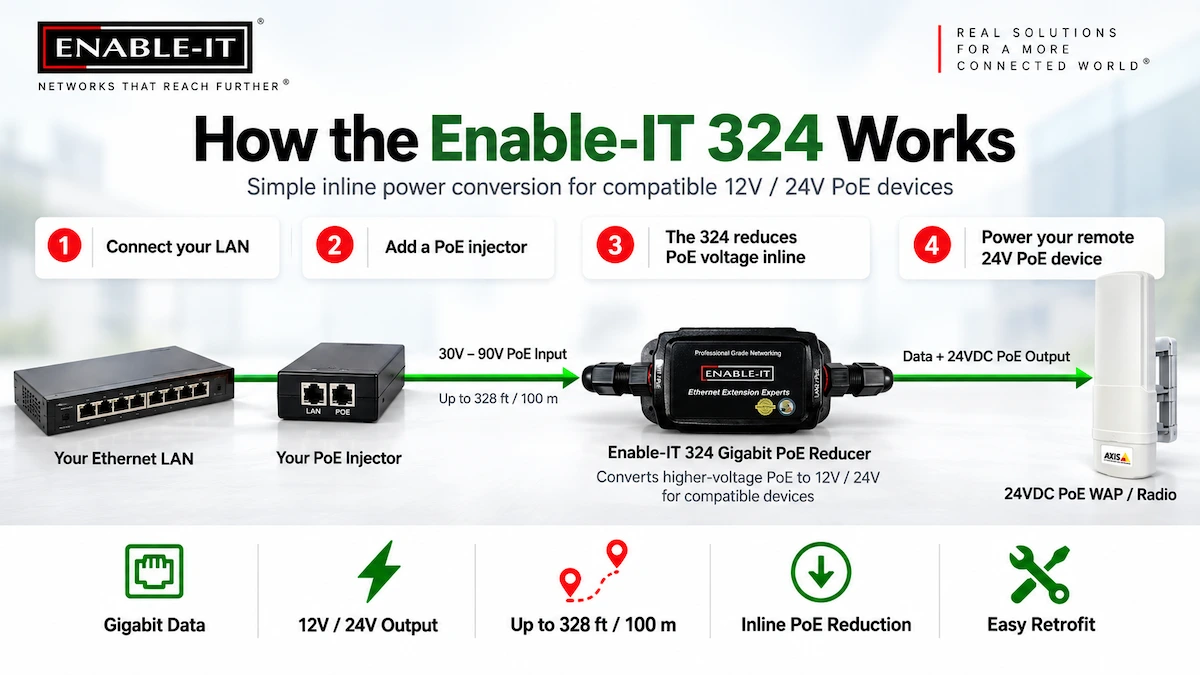

The EnableIT™ 324W Gigabit Outdoor PoE Reducer 24V DC Inline Solution is a specialized converter that transforms any high power DC voltage signal down to a 24V DC or optional 312W Model 12V PoE signal with Gigabit Ethernet LAN data. Designed & Made in the USA with quality and prideful Craftsmanship! This Waterproof Outdoor PoE Reducer is essential for installing sensitive low voltage PoE devices like PoE IP cameras, IP Phones or PoE WiFi Access points. Compatible with all 802.3af, 802.3at or PoE switches or standalone injectors including reverse polarity. We have engineered most of the technical complexity into automatic line adjustments so the plug and go simplicity on your existing or new wiring is a snap. This Gigabit Power over Ethernet (PoE) Reducer is a unique one of a kind and world’s first solution that is able to take your hot PoE and PoE Plus power/data at extreme distance and safely deliver 24VDC or 12VDC PoE input for your expensive PoE Equipment. The overvoltage issue is typically created by PoE injectors and PoE Midspan devices that leverage PoE Extenders over extreme distances and are too strong in delivered output PoE voltage to be inserted into limited 12v/24V PoE devices such as Ubiquity Wireless Access Point radios. These RJ-45 PoE radios were designed for standard Ethernet distance limitation in mind and cannot handle voltage over 20VDC. The Enable-IT 324W now solves that issue with a plug and go Gigabit PoE Reducer so that you can safely leverage PoE Extender kits that support PoE and PoE like the Enable-IT 821P, 828 or 865 PRO PoE Extender Kits. This elegant unit is ideal for installing any WiFi Wireless Access Point, Security camera or other PoE powered equipment. It eliminates the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over your wiring or existing Ethernet infrastructure. The 324 Gigabit PoE Reducer uses industry LAN standard RJ-45 (8-pin) connectors to make installing in most any environment a snap, plug and go simplicity or on your existing or new wiring.The Enable-IT 324W unit is very lightweight and compact for most all applications and use. These units are easy and rapid to install with plug and play RJ-45 Ethernet jacks to quickly insert your wiring and go. As a 802.3af and 802.3at compliant device, the Enable-IT 324W – 24VDC Power over Ethernet Reducer uses 4 wires in a category rated wiring bundle, i.e. CAT5e run. As will all PoE voltage drops over distance. As a rule of thumb you will lose 6V per every 100′- 200′ of wiring, depending on the gauge. Lower power also means more amperage means more heat and perhaps issues with the 24 gauge wires in CAT5. You may need to use 18 gauge wiring. |
Enable-IT is the seminal creator and inventor of Ethernet Extender and PoE Extender concepts and technology. We are the original trusted source. The US Federal Govt has banned most all non-US made networking products in their networks – Why risk your business using cheap foreign LAN products? Try the world’s fastest performing and most cost effective Ethernet Extender and PoE Extender Solutions – With a 45-day money-back guarantee and Same Day Discounted Rate Shipping, you have nothing to lose. ► Designed and Made in our USA AS9100D Aerospace Quality Production Facilities. ► Professional Business Grade Product, Solid reliability not Chinese Home Use crap. ► Includes the Industry leading Limited Lifetime Manufacturer Warranty.What’s the cost of your network being down? ► Insured, Same Day Discounted Rate Shipping – US Factory Floor Direct. ► NO SALES TAX – The Internet has always been tax free worldwide. ► Get some Peace of Mind – 45-day Money Back Guarantee. |
► Adapt IEEE 803.2af/at PoE to 24V or 12V DC PoE devices.
► Fully Compliant detection, disconnect and voltage control IEEE 802.3af & IEEE 802.3at.
► Rapid LAN style installation RJ45 jacks – no programming required.
► Ruggedized Professional Business Grade casing for harsh environments.
► Network Equipment independence – Transparent to protocols, applications and MAC addresses.
► Cisco, Tango, Motorola and other Reverse Polarity compatible.
► FCC Class B Part 15 and EN55022 (CISPR 22) Class B.
► Immunity ESD: EN61000-4-2 level.
► Immunity RS : EN61000-4-3 level.
► Immunity CS : EN61000-4-6 level.
This kit includes the following:
(1) EnableIT 324W Gigabit Outdoor PoE Reducer
(2) W Case Cable Seal Glands
(1) Enable-IT 324 Gigabit Outdoor PoE Reducer Quickstart Guide
(1) Limited Lifetime Manufacturer Warranty
(1) Free Shipping* and 45-day Money Back Guarantee
Power
Input Voltage 36V to 90V DC, 400mA maximum continuous. Pin assignment complies with IEEE 802.3 PoE modes.
PD Detection Presents IEEE 802.3af PD signature and Class 0 classification to PSE on any one pair
LED for PoE detection and classification.
Data Rate
Gigabit full-duplex Ethernet Data
Interface
Ethernet: (1) LAN RJ-45 10/100/1000 Base-TX autosensing shielded socket for PoE Input
(1) LAN RJ-45 10/100/1000 Base-TX autosensing port, male plug for PoE output.
Dimensions
Length 7.0″ (177mm) Height 1.62″ (41mm) Width 3.5″ (89mm)
Environment
Operational Temperature: -4°F to 149°F (-20°to 65°C)
Humidity: 5% to 85%, non-condensing
Enclosure
Ruggedized black IP68 waterproof ABS casing.
