Enable-IT 860 PRO Gigabit Ethernet Extender
► The PLANET’s most trusted and deployed brand since 1982
► Professional Grade 860 PRO Gigabit Ethernet Extender at lower cost than Fiber or Unsecure Wireless
► Gigabit Ethernet Extender up to TWENTY-SEVEN times beyond IEEE 802.3 specs
► The 860 PRO Gigabit Ethernet Extender uses 1-pair wire up to 1.7 Miles or 2.74km
► Secure and Encrypted Communications between Ethernet Extender devices
► Any CUSTOM 860 PRO Gigabit Ethernet Extender options available at time of order
► ENABLE-IT USA Factory Floor Direct Same Day Shipping
PROFESSIONAL BUSINESS GRADE PERFORMANCE,
RUGGEDIZED EXTREME TEMPERATURE ENCLOSURE,
ENCRYPTED AND SECURE.
► Beware of competitors as some are banned in the USA due to spyware or malware.
► Don’t risk your business data to cheap, low quality imported LAN equipment!
► Protect the value of your LAN data and company secrets.
► Insist on the Enable-IT Brand, trusted by security experts worldwide.
Request A Discounted Quote ►
Get A Quote From Distribution ►
Enable-IT 860 PRO Gigabit Ethernet Extender
|The Enable-IT 860 PRO Black Box Gigabit Ethernet Extender is the highest-throughput encrypted and Secure Ethernet Extender on the planet bar none!|
Designed & Made in the USA with quality and pride. These American-made Enable-IT 860 PRO Black Box Gigabit Ethernet Extender over copper uses industry LAN standard RJ-45 (8-pin) connectors to make installing in most any environment very easy. We have engineered most of the technical complexity into automatic line adjustments so the plug and go simplicity on your existing or new wiring is a snap. Ethernet Extension Experts designs and manufactures the 860 PRO kit, along with its entire product line, in the USA that makes us more responsive to customer needs. We take great pride in using the highest quality materials and actual craftsmanship when building our products. We even can customize these at time of order to fit your specific needs as we manufacture in our very own Aerospace Certified Quality AS9100D US West coast facilities.
This Enable-IT 860 PRO Black Box Gigabit Ethernet Extender over copper is trusted Business Reliable Professional Grade Gigabit Ethernet Extender without the high cost of fiber or un-secure wireless. Why risk your business to lower quality imported equipment? The value of your network communications should be a protected investment.
Typically low cost CAT 2 Telephone wire all the way up to CAT 7 rated twisted pair can be used vs expensive fiber that can’t support power transport.
Leverage any 1-pair of existing or new wiring that is contiguous all the way up to 1.83 Miles (9,000ft) or 2.74Km (2,743m) encrypted and secure, effectively saving you thousands in labor, administration, and security. Think fiber is cheap? Have you ever priced or paid for fiber troubleshooting? Think again.
Quad port Gigabit LAN switches built into each end coupled with industrial strength components to survive harsh temperature extremes delivers twice as much value and capabilities no other competitor can touch. Waterproof IP68 rated 860W PRO is available if needed here.
|Enable-IT is the seminal creator and inventor of Ethernet Extender and PoE Extender concepts and technology. We are the original trusted source.The US Federal Govt has banned most all non-US made networking products in their networks – Why risk your business using cheap foreign LAN products?|
Try the world’s fastest performing and most cost effective Ethernet Extender and PoE Extender Solutions –
With a 45-day money-back guarantee and Same Day Flat Rate Shipping, you have nothing to lose.
► Designed and Made in our USA AS9100D Aerospace Quality Production Facilities.
► Professional Business Grade Product, Solid reliability not Chinese Home Use crap.
► Includes the Industry leading Limited Lifetime Manufacturer Warranty.
► Optional 4 year Next Business Day Advanced Replacement for under $1 per month!
► Insured, Same Day Flat Rate Shipping – US West Coast Factory Floor Direct.
► Get some Peace of Mind – 45-day Money Back Guarantee.

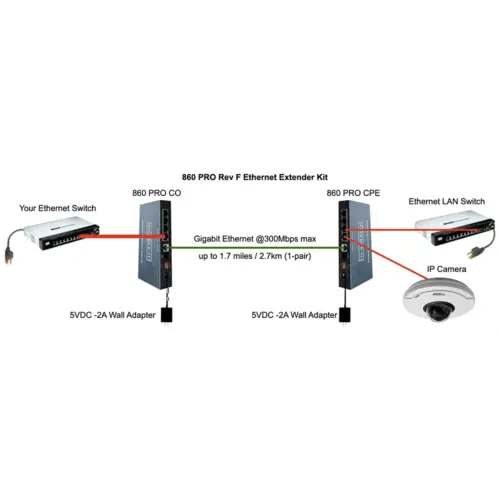

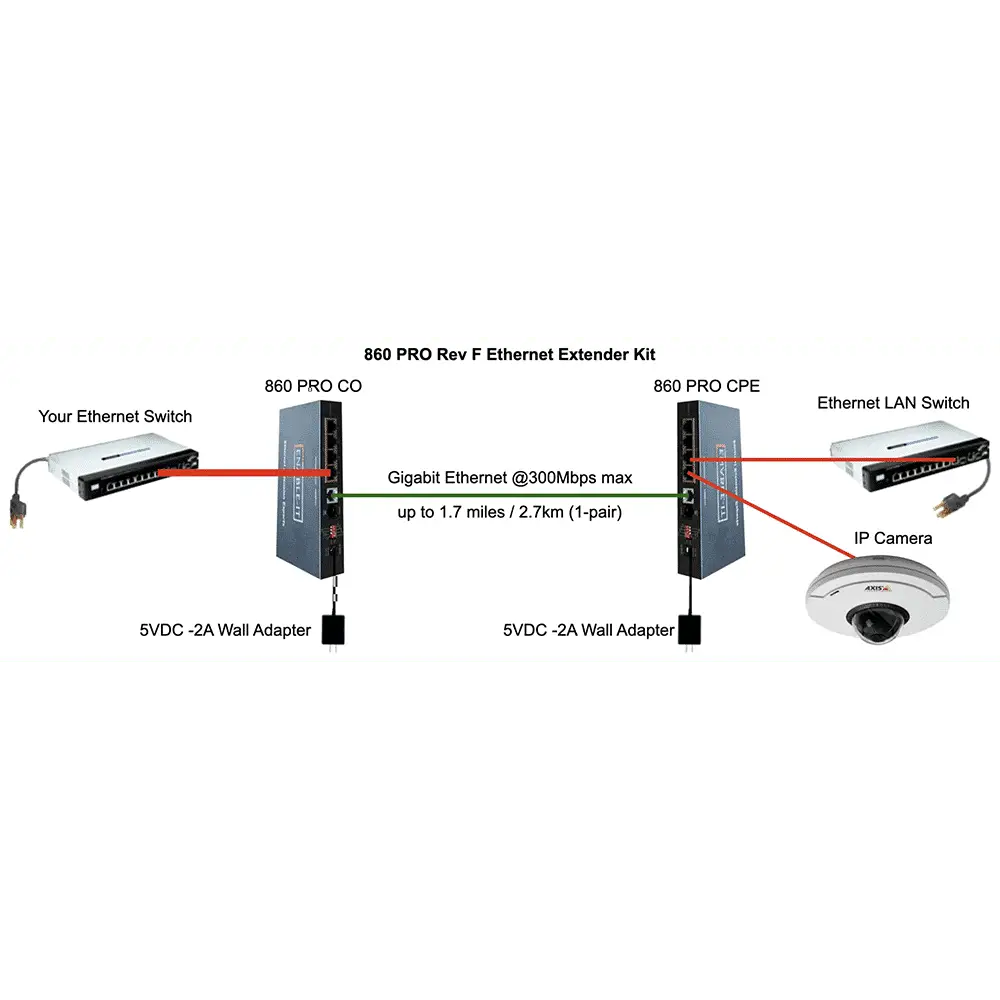

|► Extended Gigabit Ethernet over 1 pair new or existing Telephone wiring up to Category rated wiring.|
max distance 1.7 miles = 9,000ft (2.74km) encrypted and secure.► Can be daisy chained to extend infinitely in linear or tree topology.► Rapid LAN style installation RJ45 jacks – no programming required.
|► Ruggedized Professional Business Grade mountable casing for harsh environments.► LAN Device independence – Transparent to 802.3 Protocols, Applications.|
and MAC / IP addresses.► Longest warranty protection included exceeding any knockoff competitors.► Quad Gigabit LAN ports on each end to eliminate the need for LAN switches.
This kit includes the following:

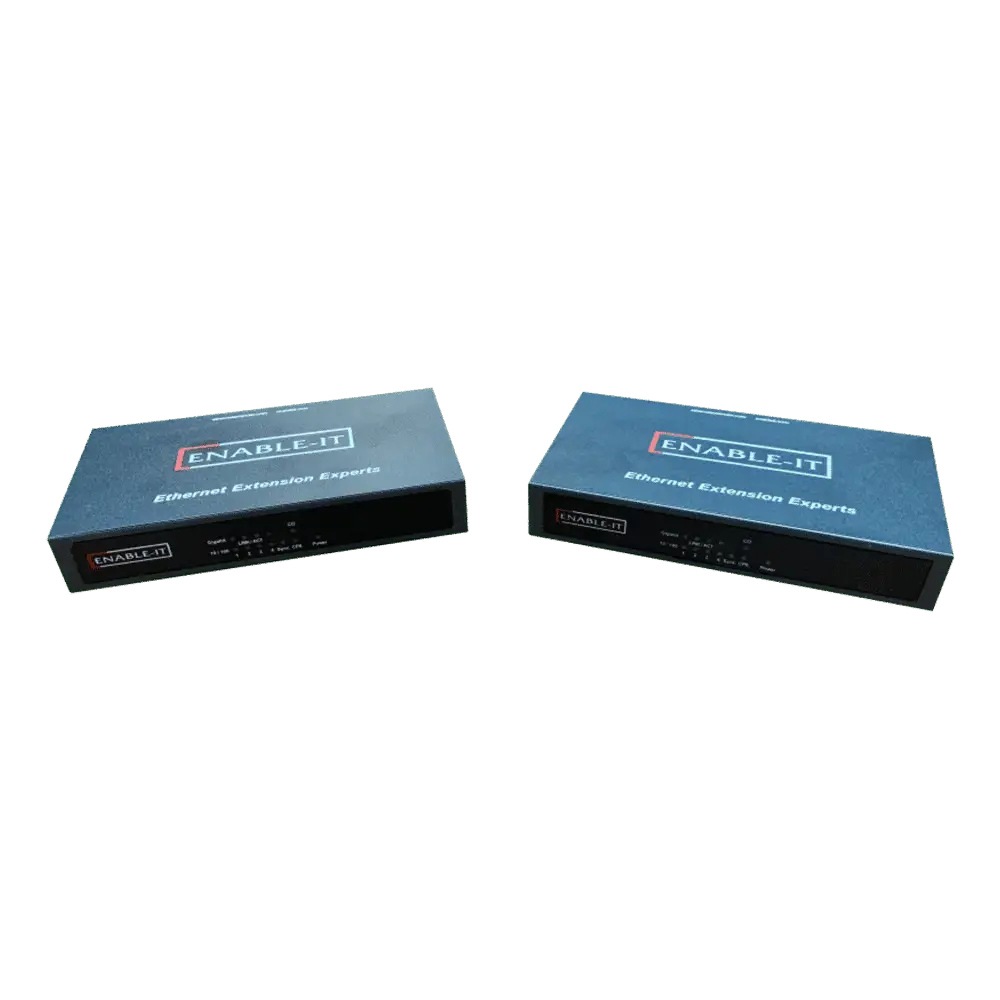

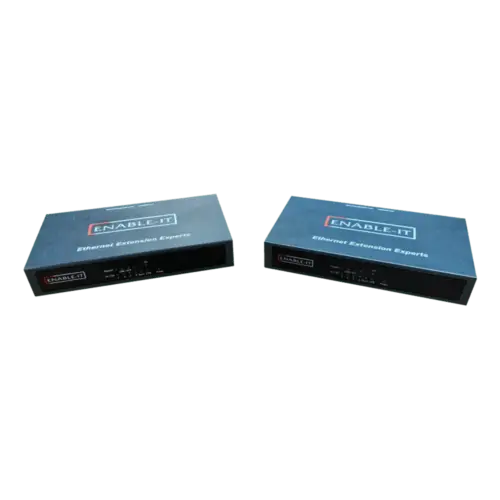

|(2) EnableIT 860 PRO Gigabit Ethernet Extenders(2) 10′ Black Ethernet patch cords|
(2) 12V-1A DC Country Specific (120-260V AC) Power Adapters.
(1) Enable-IT 860 PRO Quickstart Guide
► Same Day Flat Rate Shipping – US West Coast Factory Floor Direct
► 45-day Money Back Guarantee
► Lifetime Manufacturer Warranty
► Optional 4yr Next Business Day Advanced Replacement
12V-1A DC Country Specific (120-260V AC) Power Adapter 2.5mm DC jack included.
1,000Mbps full-duplex Ethernet Data

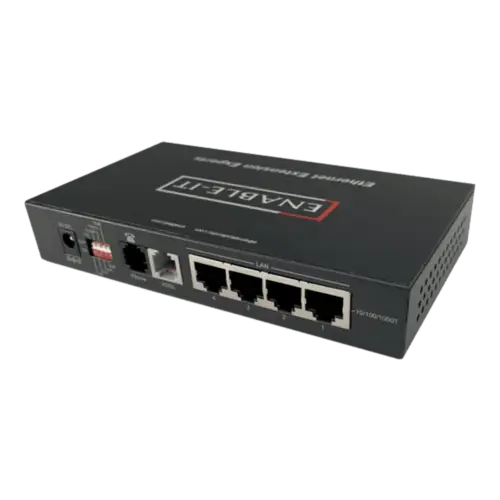

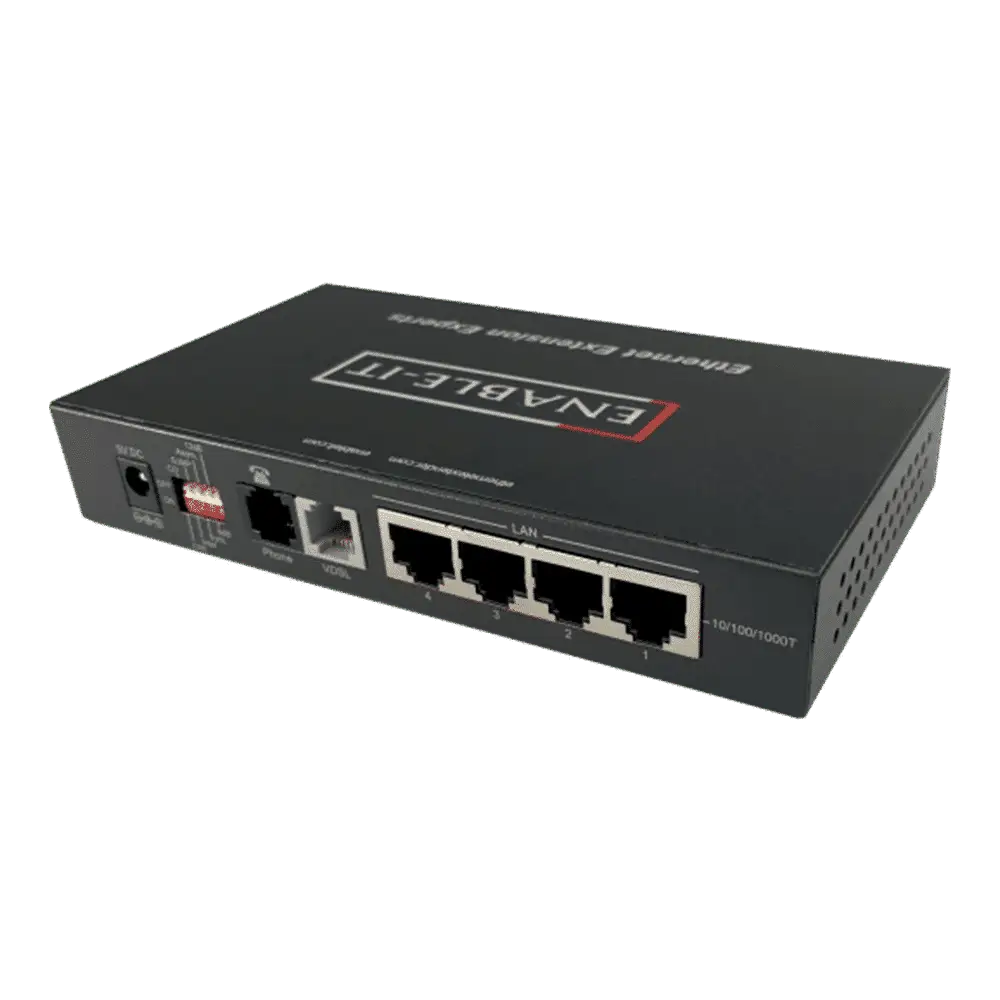

Ethernet: (4) LAN RJ-45 Standard 10/100/1000 Base-TX autosensing ports
Height 1.4″ (35mm) Depth 3.4″ (86mm) Width 4.4″ (111mm)
Operational Temperature: -49°F to 168°F (-45°to 76°C)
Ruggedized wallmount black Aluminum casing Optimized for heat extraction and isolation without fans.
|*Actual data rates can vary as there are uncontrolled characteristics for every install:|
1) Gigabit Ethernet Chip manufacture specs in the end device LAN equipment. Can be different on each end.
Check your OS Ethernet LAN packet size settings, i,e Jumbo Frame, etc.
2) Amount of dedicated LAN chip buffer memory in the end device LAN equipment.
3) Traffic types and protocols. i.e. VoIP prioritized over other packets, VLAN’s, etc.
4) Interlink wire gauge.
5) Interlink wire type for number of twists per spec on Category rated. i.e. CAT3 can only handle 80Mbps
6) Interlink wire pair used – same twisted pair bundle or mixed pairs.
7) Length of Interlink wiring. The 860 PRO dynamically adjusts to changing conditions to select fastest and stable channels on the wire pair.
8) Electro magnetic interference from surrounding environment. Hospital X-Ray rooms bleeding out EMF, other high frequency signaling bleeding into Interlink wire pair, Microwave WiFi communications blasting EMF radiation onto the Interlink wire pair run, etc.
- Review by Ken K – TPC Technologies
January 7, 2008
- Review by Shane C – Rockwell International
March 12 2010
- Review by Cathy S – US Army (PEO C3T)
September 10, 2010
- Review by Jeff W- BEA Systems PLC
June 9 2011
- Review by Dianne J – Afras USA
July 2, 2011
- Review by Ken B – Towerstream
Oct 11 2012
- Review by D Worke – AeCom Tech
January 22 2013
#1 ► Designed and Made in the USA
Factory Direct Highest Quality Expert Product Engineering.
Don’t be fooled by foreign companies with US offices selling you cheap quality electronics from who knows where.
Insist on USA made high quality equipment and support.► Why a Made in the USA product Matters
#2 ► Professional Grade Equipment – Trusted Reliability
(Ruggedized, Extreme Distance, Highest Throughput, OEM Customizable, Encrypted and Secure)
Since 1997, we have been manufacturing the highest quality Made in the USA Ethernet Extenders
US Factory Floor direct same day flat rate shipping. ► Our commitment and promise of quality and real value.
#3 ► Lifetime Product Warranty
Peace of Mind Longest Product Warranty in the industry – Limited Lifetime Product Warranty.
Why would you waste your time and money with anything of inferior quality
or from a company that doesn’t stand behind its own products?► Warranty Details
#4 ► 45-Day Money Back Guarantee
For those who wish to try our superior USA engineered Ethernet and or PoE technology.
We offer a gracious 45-Day trial period when purchasing single unit kits per our policy ► Money Back Details
#5 ► Certified Spyware Free
Buyer Beware! Knockoff competitors of our products have been banned by the US Govt for containing data stealing spyware.
Our products are trusted in some of the most secure environments such as control of US Nuclear weapon systems through
our national security contracts for the DOD and US Military.
#6 ► No Configuration – Plug and Go – Highest Throughput
All of our products are ready ring out of the box. Simply connect the devices to your cabling and plug them in if they require a power adapter.
There are no configuration parameters to set up! We even include your country-specific power adapters.
Don’t settle for low bandwidth. And because we offer the highest speeds of any Ethernet Extender Manufacturer, we make sure you won’t have to.
High performance without compromise – that’s what you’ll get.
#7 ► Same Day Flat Rate Shipping – US Factory Floor Direct
Our US West coast AS9011D manufacturing facility processes all orders placed by 3:30pm PST and expedites for same day shipping worldwide.
Flat Rate Domestic US Shipping – See our preferred shipping commitment – See our policy ► Shipping Details
#8 ► Next Business Day Advanced Replacement Service
No other manufacturer in our industry can stand behind their products or services as well as Enable-IT does bar none.
We offer a 4-Year peace of mind business continuity AREP (Next Business Day Advanced Replacement). – See our ► AREP Details
#9 ► US Based Expert Technical Support and Customer Care Team
No need to speak Mandarin or Urdo and or wait days to get timely support to technical questions answered.
Our Expert Technical Customer Care Team along with our OEM Design engineers and manufacturing operations are all Proudly USA In-house.
We take great pride in listening to and understanding your needs and providing professional timely support.► Click to Chat
#10 ► Custom USA Made OEM Solutions
If you need a design or specifications that are not in one of our products, our OEM Design engineers and manufacturing operations are all Proudly USA In-house.
We can create tailored OEM solutions in days with minimum 10 unit quantity orders. Enable-IT can give you a strategic advantage in your marketplace – ► Try Enable-IT
