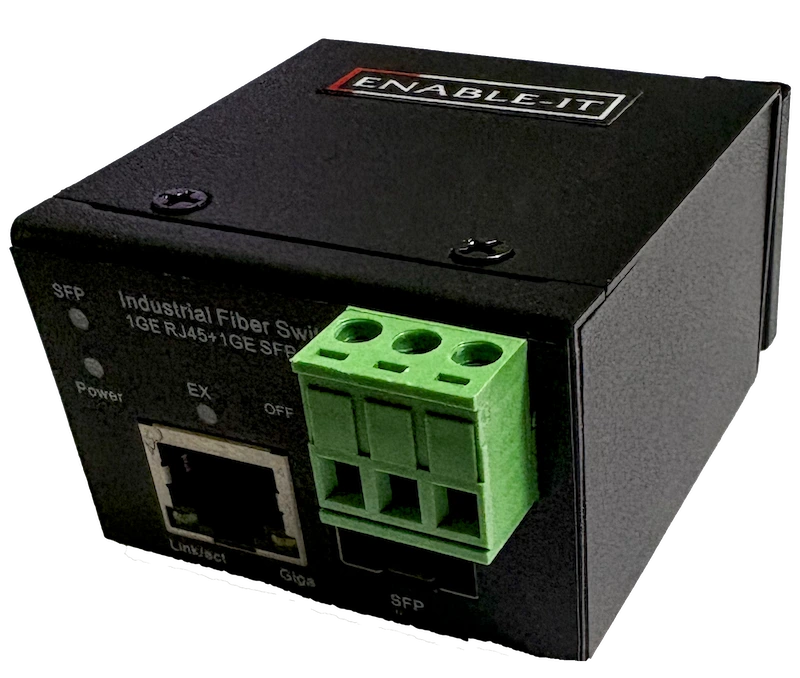

Enable-IT Mini Industrial Gigabit SFP Transceiver
Enable-IT Mini Industrial Gigabit SFP Transceiver
$40.00
2 in stock

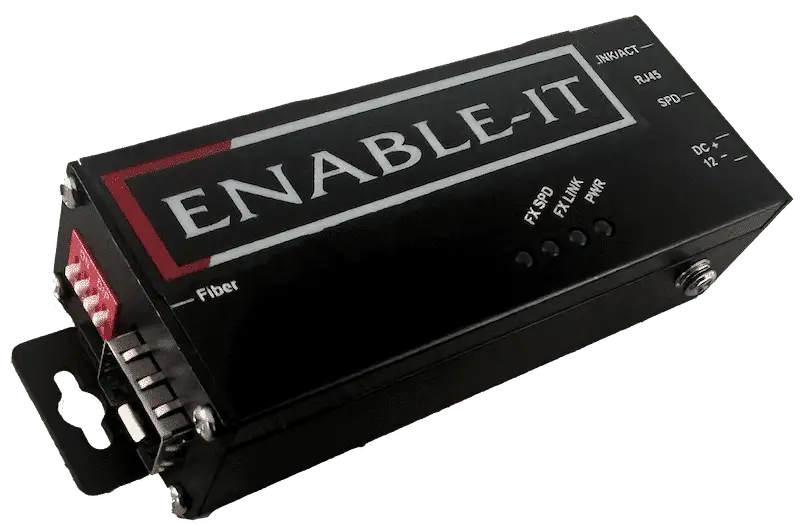

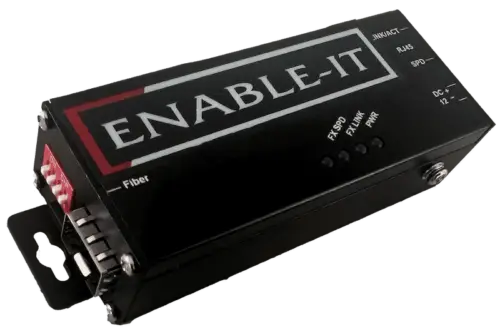

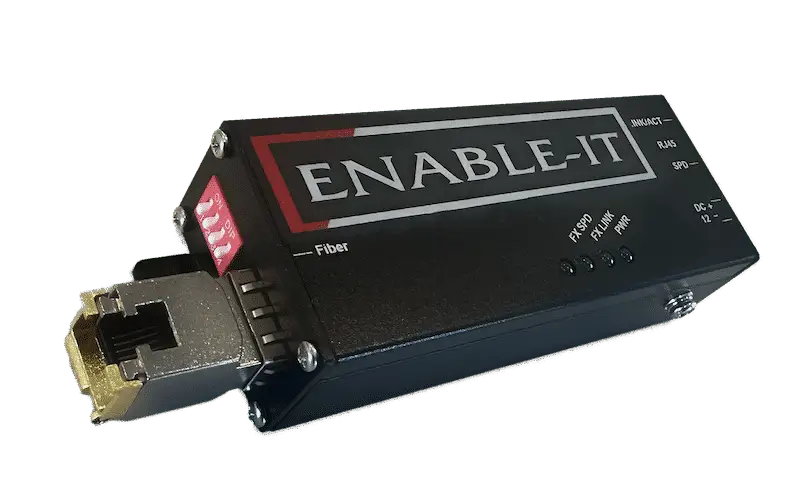

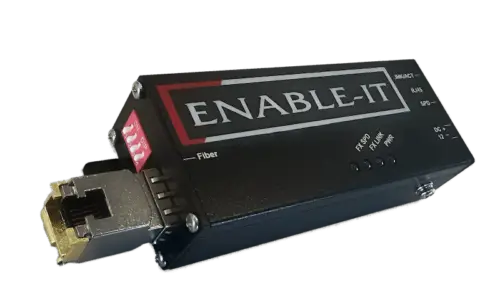

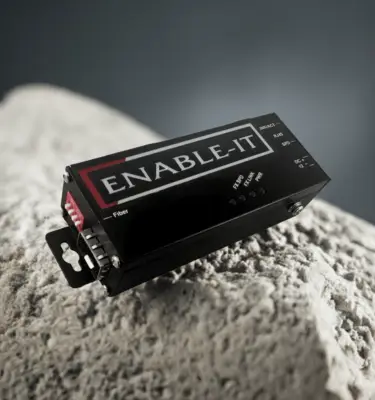

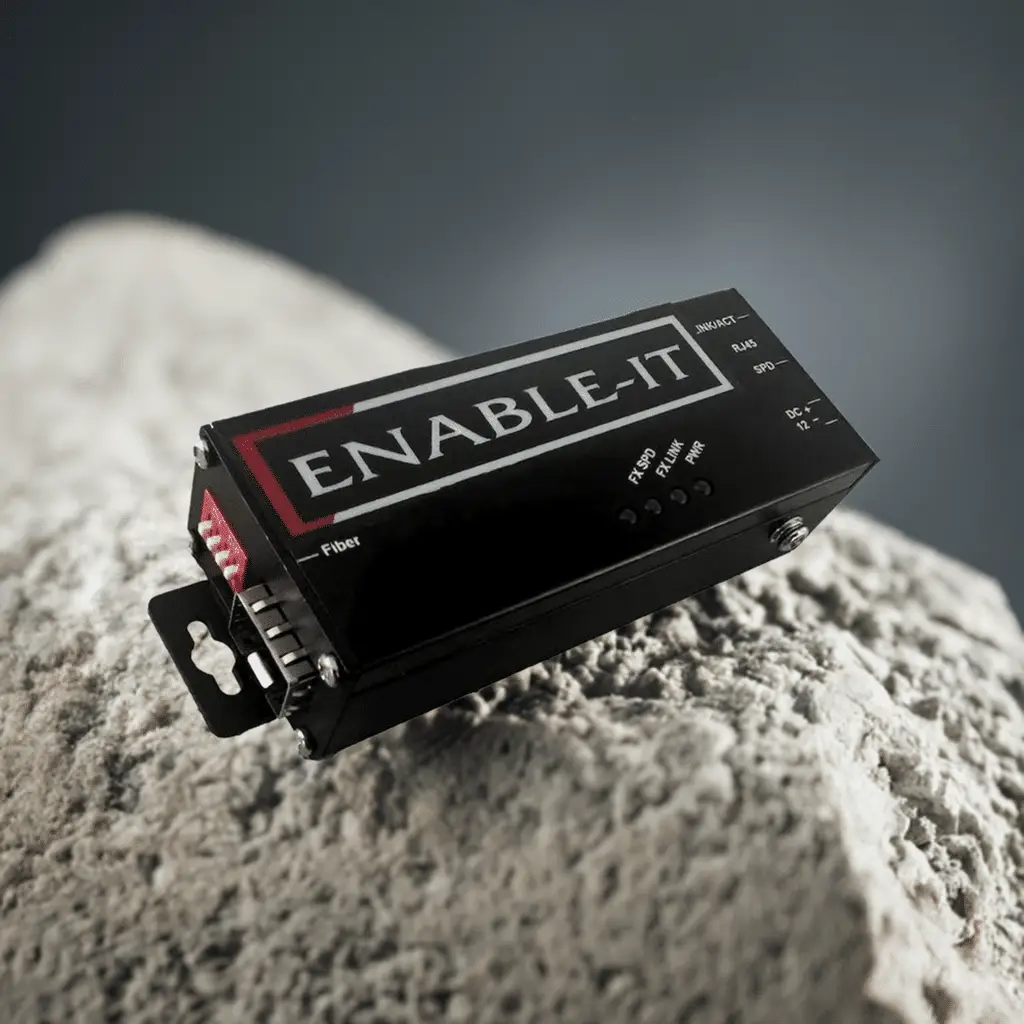

The EnableIT Mini Industrial Gigabit SFP Transceiver provides cost-effective, entry-level media conversion Fiber SFP modules and the Gigabit LAN.
With its fixed configuration, deployments are just plug-and-play, and with it is small size, it is ideal for locations where space is limited.
It is able to operate under temperatures ranging from -40°C to 75 °C and is with IP40 rugged case to make sure continuous operation in harsh environments such as transportation, factories, outdoors, and places where extremely low or high temperatures can be experienced.
Applications such as city surveillance systems, smart manufacturing, etc. The Industrial Fiber Media Converter with SFP Port provides reliable, stable and continuous long-reach data transmission and can be installed in any harsh environment without considering space.
Professional Business Grade Product, Solid reliability not Chinese Home Use
Includes a Industry leading Lifetime Manufacturer Warranty
Maintains existing RJ-45 Ethernet Data (10/100/1000mbps).
► Industrial SFP (Media Converter) Transceiver mini size
► IP40-rated rugged, mini-size enclosure.
► 10K Jumbo Frame and Cut Through mode improves the conversion efficiency
► Provides the H.264 video compression with smooth and efficient transmission
► Embedded DIP Switch for automatic SFP Fiber link loss, restoration and port speeds
Includes the following:

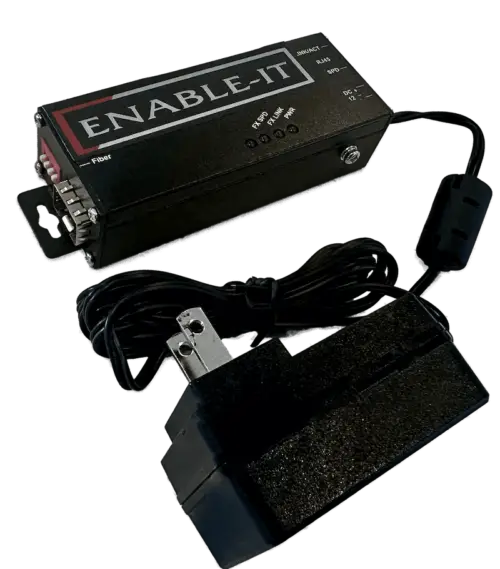

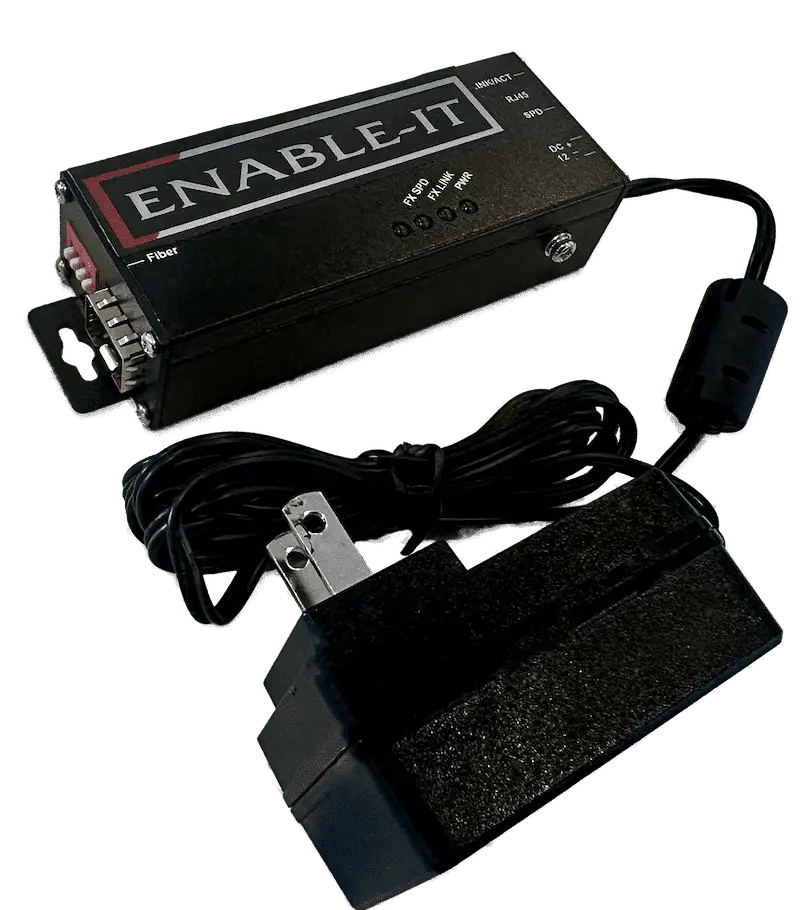

(1) Low profile Single Port SFP Gigabit LAN module w Phoenix contact 12V DC power adapter
(1) Discounted rate shipping and 45-day Money Back Guarantee
Power
12V DC Phoenix contact connector
12V DC – AC wall adapter
Power Consumption – 2.4W Max. 0.2A@12VDC
Dimensions
Length 117mm Height 24.5mm Width 36.2mm
Environment
Operational Temperature: -40°F to 167°F (-40°to 75°C)
Humidity: 5% to 90%, non-condensing
Weight: .15kg
IP40 rated Aluminum casing with Wall mounts tabs
Dip Switch Settings
| #1 | LFP(Link Fault Pass Through) ON/OFF |
| #2 | ALS(Only for SFP) ON/OFF |
| #3 | FX Rest ON/OFF |
| #4 | FX Speed Setting
OFF: Fixed 1000M ON: 100M/1000M |
